Wire stripping tool Suitable for PVC-coated cables 0.2 up to 6 mm² 10 up to 24 2.5 mm (max) Jokari Super 4 Plus 20050 Su
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.96
3
5% = € 0.79
€ 15.17
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.96 / piece)
€ 15.96
plus VAT.
Highlights & Details
4 Plus Super Automatic Wire Stripper
Technical specifications
- Product type
Wire stripping tool
- Suitable for
PVC-coated cables
- Operating range (diameter)
2.5 mm (max)
- Operating range (diameter) (max.)
2.5 mm
- Working area (cross section)
0.2 up to 6 mm²
- Working area cross section (min.)
0.2 mm²
- Operating range (cross section) (max.)
6 mm²
- Operating range (AWG diameter)
10 up to 24
- Operating range (AWG cross section) (min.)
24
- Operating range (AWG cross section) (max.)
10 awg
- Length stop range
6 up to 15 mm
- Length stop (min.)
6 mm
- Length stop (max.)
15 mm
- Length
165 mm
- Suitable for
JOKARI
- Width
15.20 mm
- Weight
91 g
- Type
SUPER 4 PLUS
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 820021 Wire stripping tool Suitable for PVC-coated cables 0.2 up to 6 mm² 10 up to 24 2.5 mm (max) Jokari Super 4 Plus 20050 Su
User & Safety Instructions
User & Safety Instructions 820021 Wire stripping tool Suitable for PVC-coated cables 0.2 up to 6 mm² 10 up to 24 2.5 mm (max) Jokari Super 4 Plus 20050 Su
Description

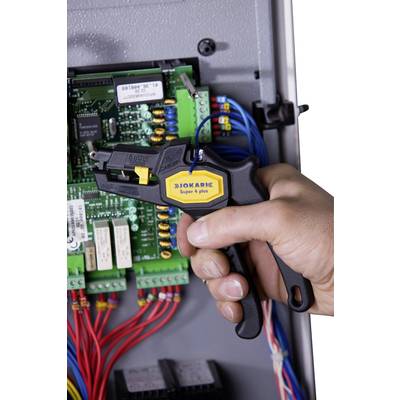

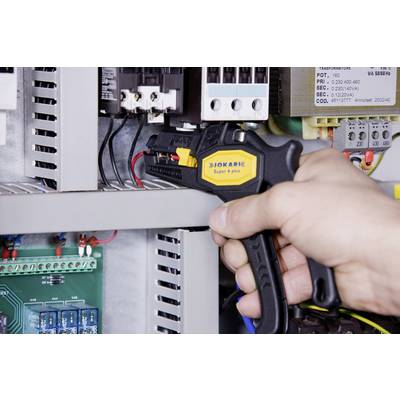

Ergonomic and automatic stripper for solid and flexible conductors and strands from 0.2 - 6.0 mm². For fast and precise stripping even in hard-to-reach places. No adjustment to the cable cross section necessary. Suitable for cables with insulation made of PVC and other materials. Special scanning system and therefore no damage to the conductors. Well positioned external side cutter for conductors up to max. 2.5 mm². Pliers body made of glass fibre reinforced polyamide. Pliers handle with long hole at the lower end for possible fastening.
