1/5

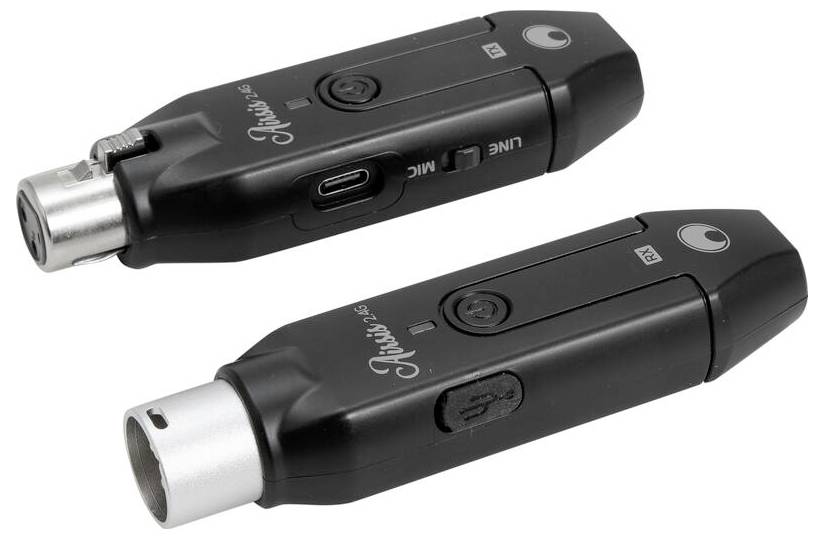

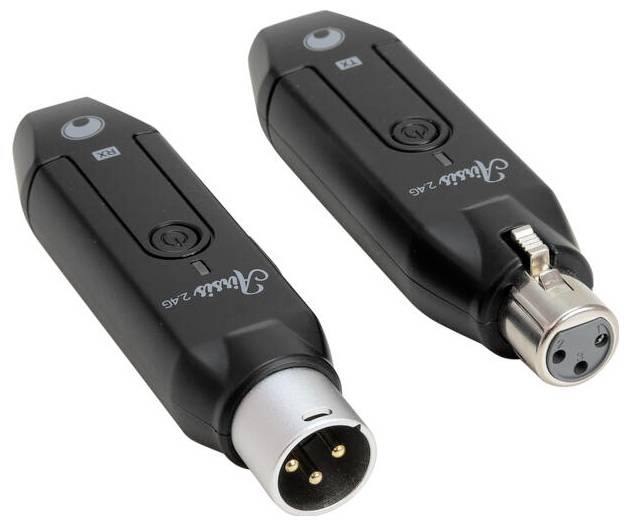

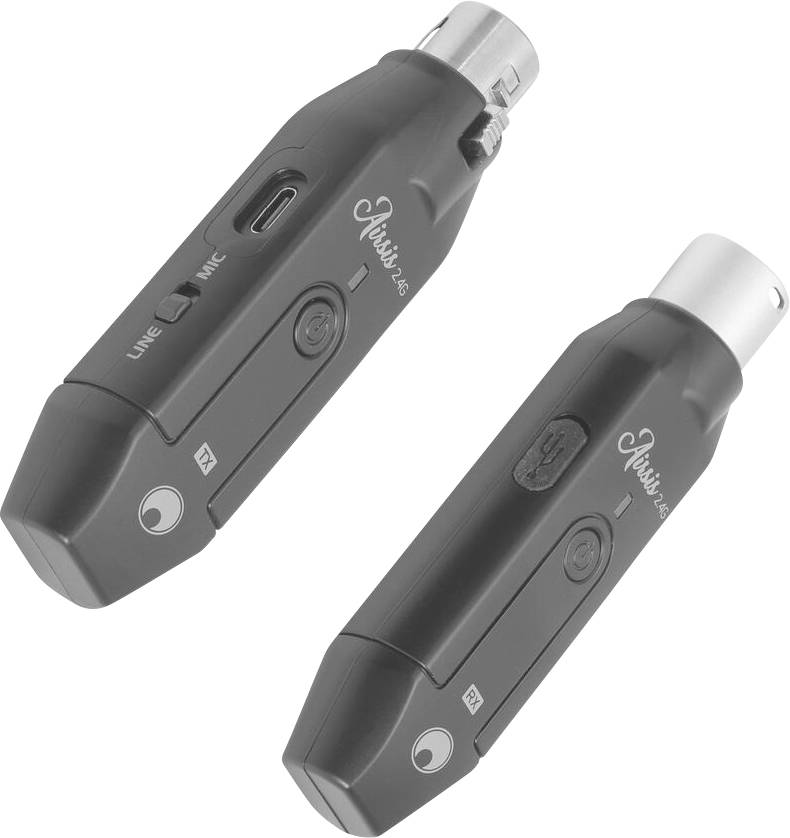

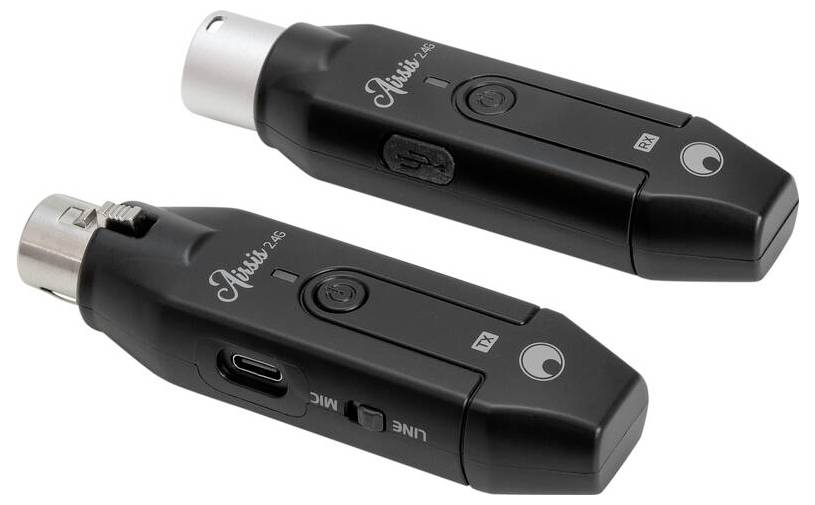

Wireless microphone set Omnitronic AIRSIS 2.4G Transfer type (details):Radio incl. cable
EAN:
Part number:
Item no:
Technical specifications
- Type: Audio transmission
- Protection class SK III.
- Range: Up to 30 m in line of sight
- Frequency band: 2.4 GHz
- Receiver: Receiver
- Power connection: Battery/rechargeable battery installed
- Distortion factor: Mic/line less 0.02 % with 1 kHz
- Controls: Power switch
- Connections: Mic/line via 1 x 3-pin XLR (M) fitted version
- Material: plastic
- Parallel operation: Max 4 transmitter
- Latency 5.8 ms
- Battery type 1 x Lithium-Ion 3.7 V/800 mAh/2.96 Wh
- Sampling rate 48 kHz
- Converter 24 bit
- Transmitter: Transmitter
- Status LED: Power, mute, charge status, pairing
- Channels input: 1 x mono with mic-line switch
- USB connection 1 x type C
- USB cable USB cable
- Connection A:1 x USB A (M)
- Connection B 2 x USB C (M)
- Product type
Wireless microphone set
- Transfer type
Radio
- Features
incl. cable
- Cable length
0.5 m
- Weight
0.02 kg
- (Ø)
22 mm
- Dim
(Ø) 22 mm
- Interfaces
USB type A
XLR
USB C®
- No. of transmitters
4
- Frequency range
20 - 20.000 Hz
- Factory colour
Black (matt)
30 m
- Frequency
2.4 GHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729704 Wireless microphone set Omnitronic AIRSIS 2.4G Transfer type (details):Radio incl. cable
Description
Wireless XLR radio system for dynamic microphones and line signals, 2.4 GHz. Directly ready to use clip-on system with transmitter and receiver. Eliminates annoying cable runs. For use with mixing desks, active loudspeakers and dynamic microphones. Automatic pairing 24 bit/48 kHz for the ultimate sound quality. Rechargeable lithium batteries. LED-function display for monitoring the operational status. Sampling rate 48 kHz Extremely low latency. Note: Because phantom power is not provided, capacitor microphones can only be used if they are battery powered. Range of up to 30m at sight range. Up to 4 transmitters can be operated in parallel without interferences. 2.4 GHz world-wide registration and call free. Transmitter. Wireless, flexible and versatile.
This text is machine translated.
This text is machine translated.

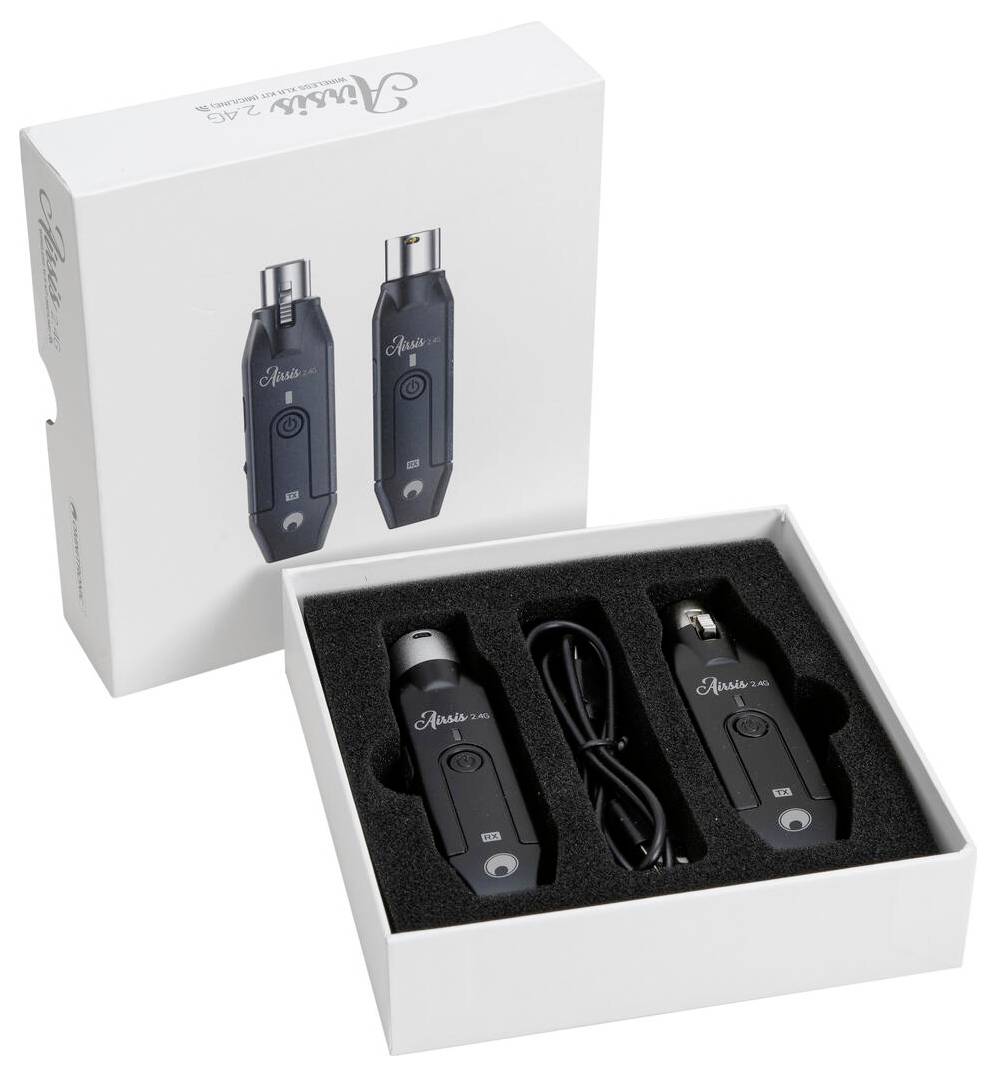

Scope of delivery
- 1 x transmitter
- 1 x receiver
- 1x USB cable
- 1x user manual
- 1 x declaration of conformity.
