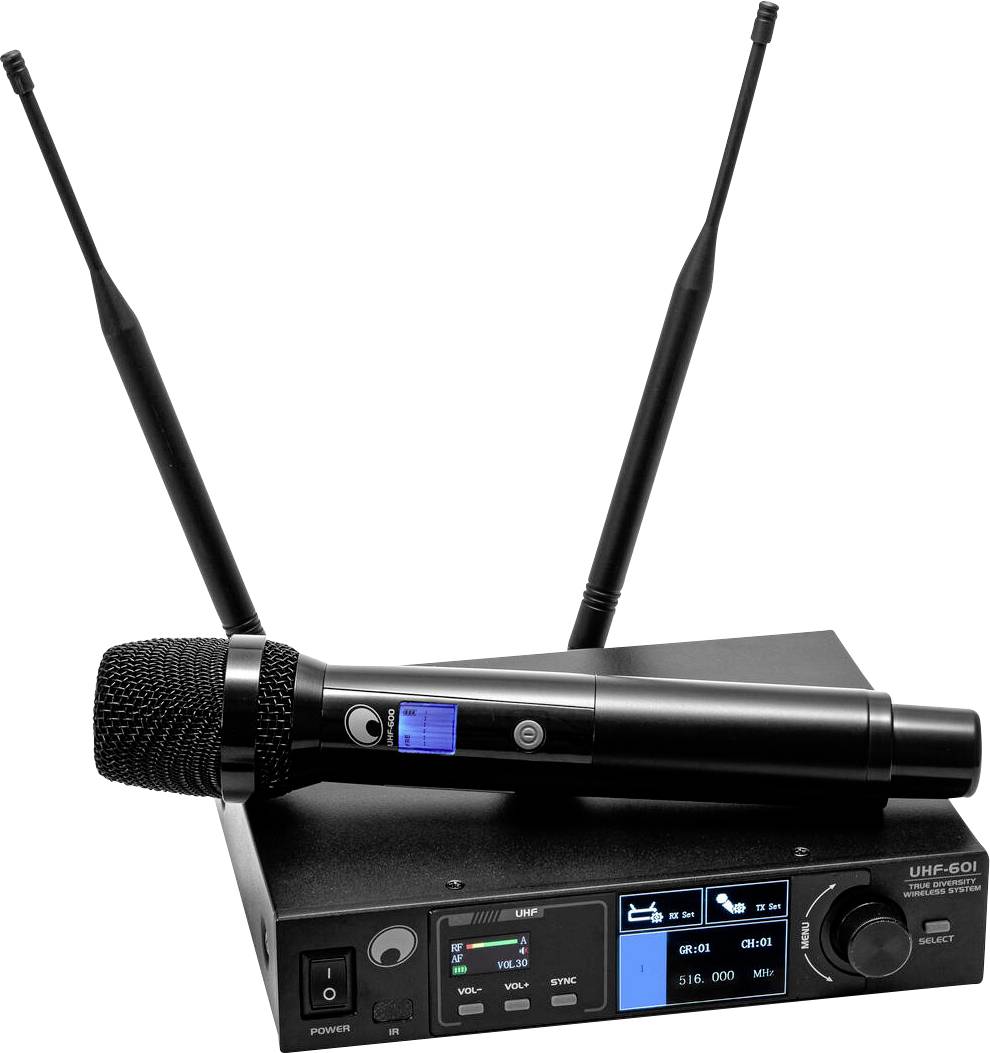

Wireless microphone set Omnitronic UHF-601
EAN:
Part number:
Item no:
Technical specifications
- Type: Complete wireless set
- Protection class SK III.
- Number of channels: 1
- Range: Up to 60 m in line of sight
- UHF 823 – 832 MHz; UHF 863 – 865 MHz
- Modulation: FM
- 120 frequencies can be automatically scanned; in 10 groups
- Receiver: Receiver
- Power supply: 3V DC 130 mA
- Total connected wattage 2.2 W
- Power connection: Current feed via hollow plug (M) Installation version Power connection cable with plug-in power supply enclosed
- Signal-to-noise ratio 80 dB
- Distortion factor: Less than 0.5 % at 1 kHz

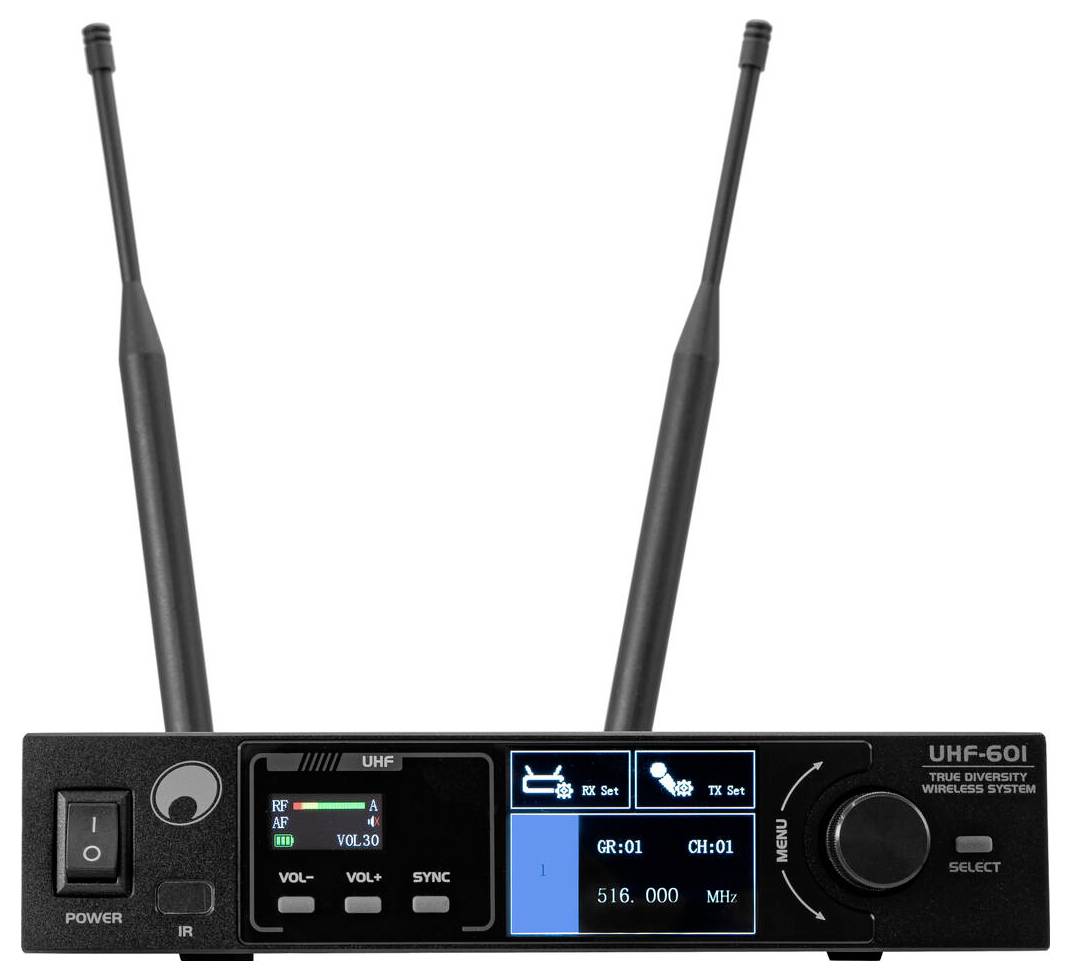

- Display type: Multicolor LCD display
- Display: Frequency , Display status , Mute , RF signal strength
- Controls: Volume control, power switch, encoder, menu, sync button

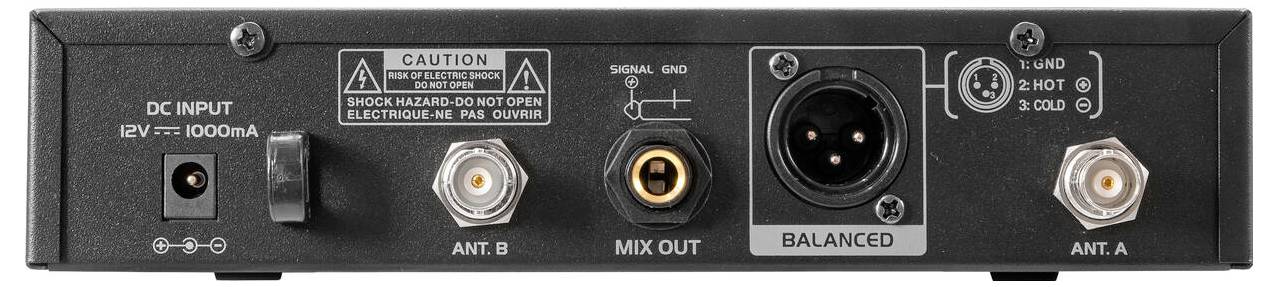

- Connections: Microphone via 1 x 6.3 mm jack (unbal.)
- Material: Metallic
- Housing design: Desk case; (19") 48.3 cm rack mounting possible 1 HE
- Installation depth: 21 cm
- Cap type: Ø 25.4 mm
- Battery: 2 x Mignon (AA) (not included in delivery)
- Sensitivity -54 dB
- RF output power: 10 mW (HI); 5 mW (LO)
- Switch: On/off/mute switch
- Switching bandwidth 11 MHz
- Parallel operation: Max 24 transmitters in 2 bands
- Diversity: True diversity
- Latency: Less than 3 ms
- Equalizer: 7-band graphic equalizer
- Impedance 600 Ohm
- Product type
Wireless microphone set
- Characteristics
Cardioid
- Weight
0.350 kg
- (Ø)
49.5 mm
- Dim
(Ø) 49.5 mm
- Frequency range
50 - 16000 Hz
- Factory colour
Black
60 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729697 Wireless microphone set Omnitronic UHF-601
Description
True diversity radio system with auto scan, 7-band EQ and TFT color displays. Multi-frequency radio receiver with true diversity technology for maximum reception quality. Suitable for large multi-channel systems. Range of up to 60m with visibility. UHF 823 - 832 MHz registered and uncharged in large parts of Europe. UHF 863 - 865 MHz registered and uncharged in Europe. Up to 24 transmitters in 2 bands can be operated in parallel without any problems. Receiver. Automatic frequency setup ID-check of the transmitter prevents faulty use and interference of external radio transmitters. Different user colors can be selected for simple differentiation. 7-band equalizer for sound tuning. Lock feature prevents accidental changing of settings. Multifunctional Jog Dial for menu navigation (19") 48.3 cm rack installation possible 1 HE. Extremely low latency. Multi-colored TFT display. Table stand case Microphone Directionality: Kidney. Multi-colored LCD display. Battery level indicator
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x receiver

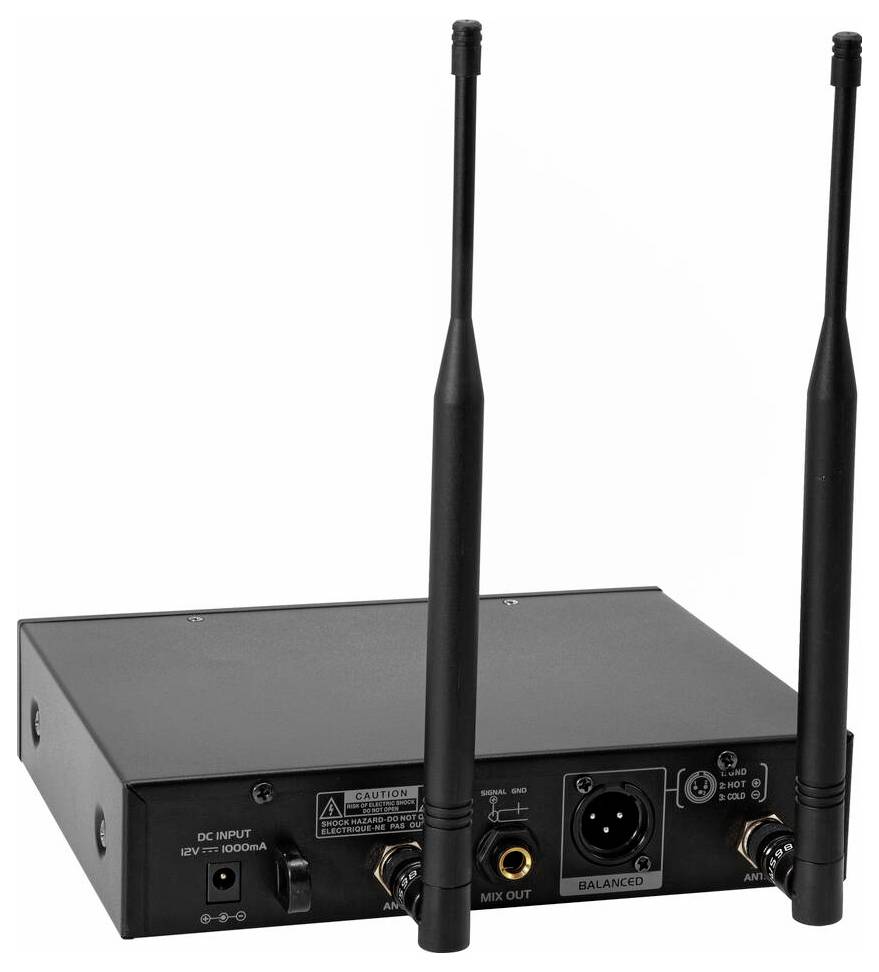

- 2 x Antenna
- 1 x external power supply
- 4 x Base
- 1 x jack cables
- 3 x mounting bracket

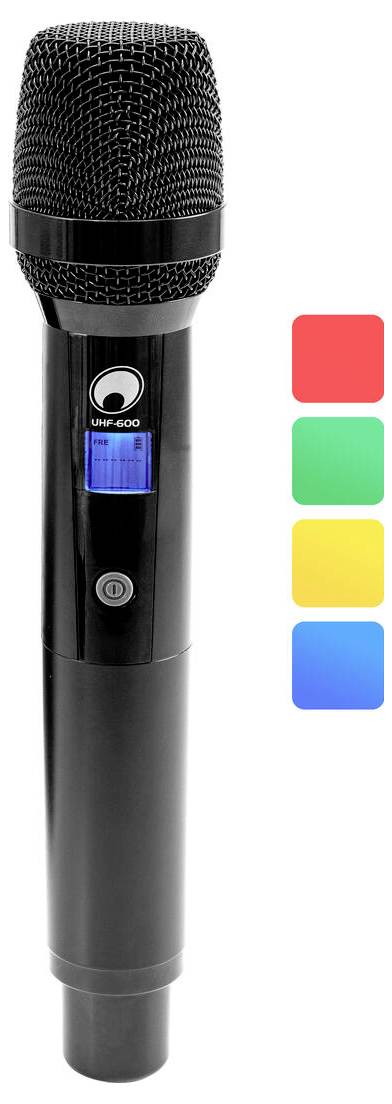

- 1 x Microphone
- 1 x holder
- 1x user manual
- 1 x declaration of conformity.
