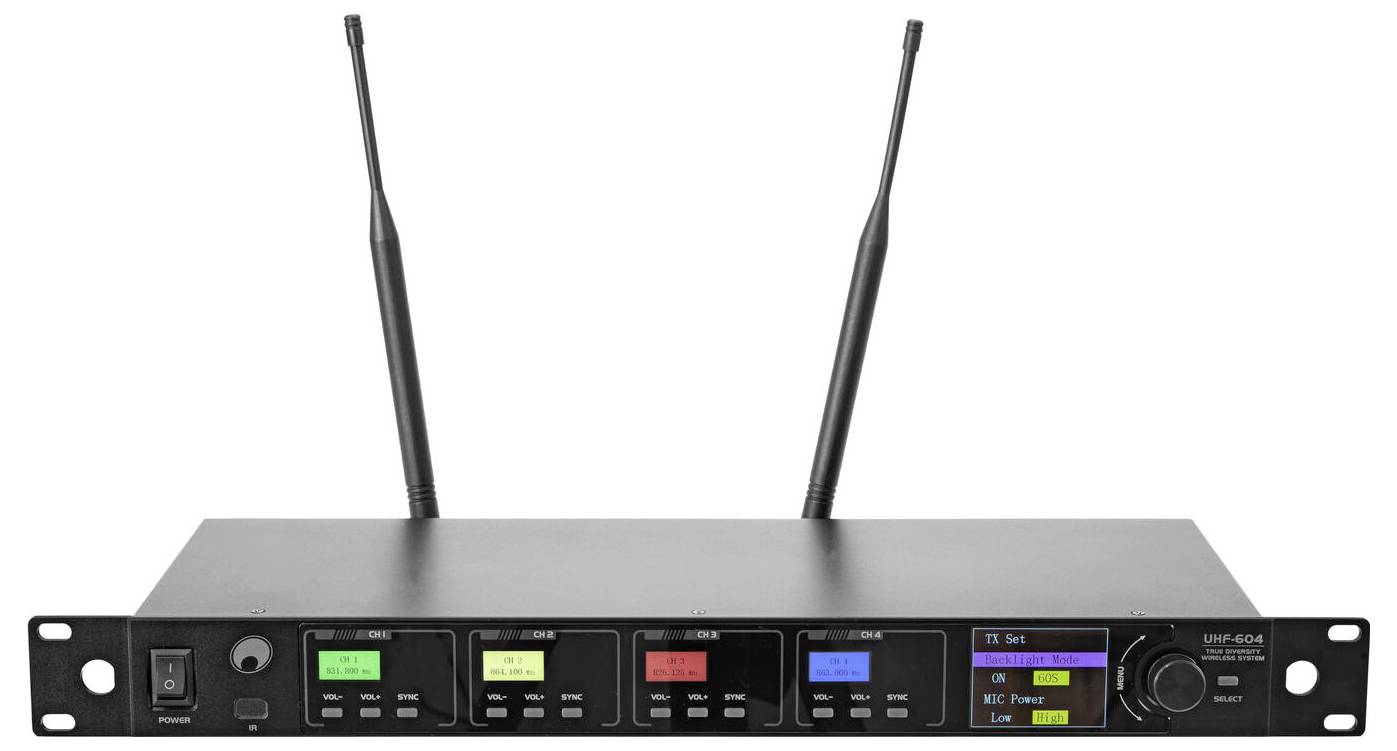

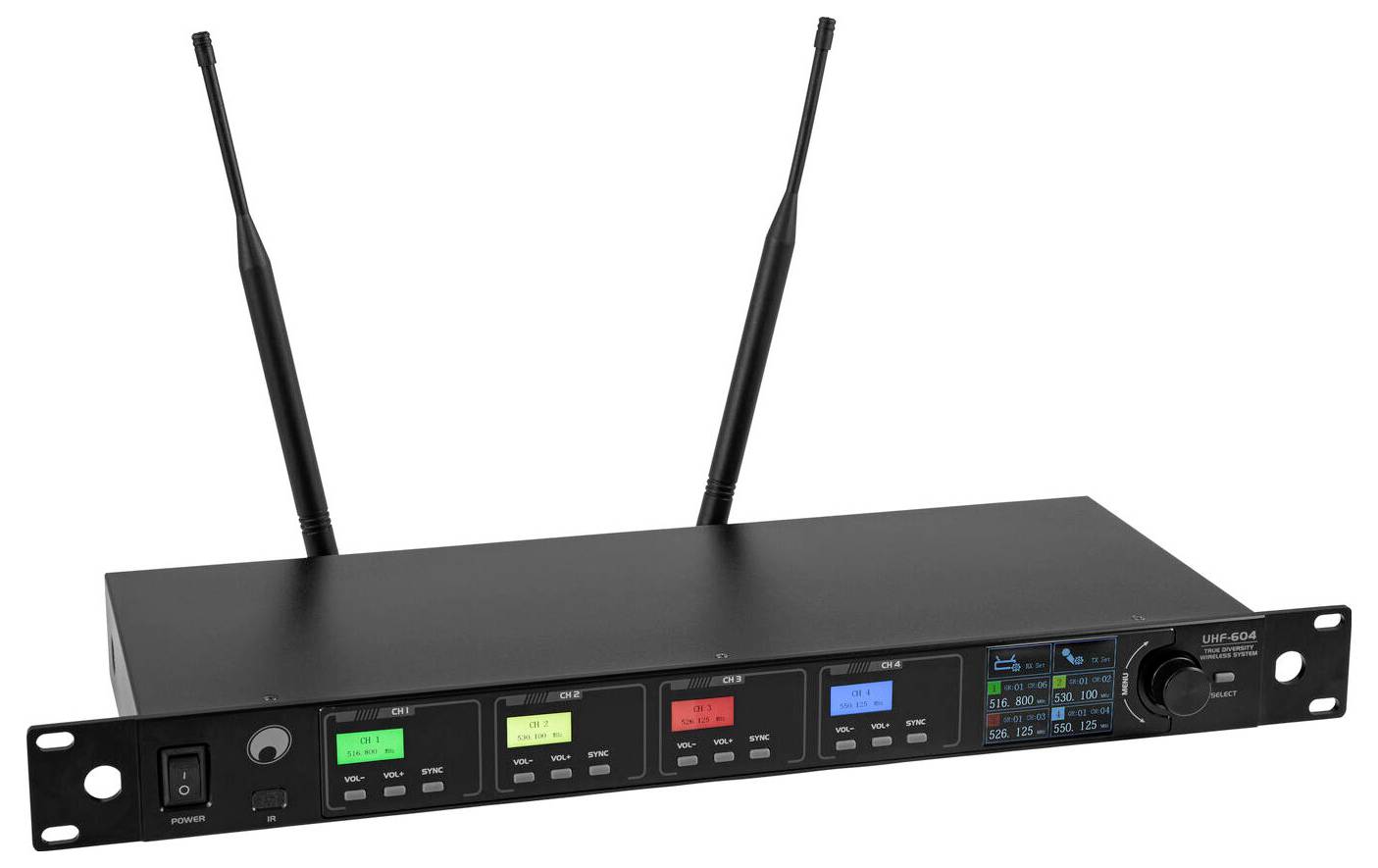

Wireless microphone set Omnitronic UHF-604 Transfer type (details):Radio Switch
EAN:
Part number:
Item no:
Technical specifications
- Type: Complete wireless set
- Protection class SK III.
- Number of channels: 4
- Range: Up to 60 m in line of sight
- Frequency range 522 - 554 MHz
- Modulation: FM
- Frequency selection: Frequencies can be automatically scanned
- Receiver: Receiver
- Power supply: 3V DC 118 mA
- Total connected wattage 6 W
- Power connection: Current feed via hollow plug (M) Installation version Power connection cable with plug-in power supply enclosed
- Signal-to-noise ratio 80 dB
- Distortion factor: Less than 0.5 % at 1 kHz
- Display type: Multicolor LCD display
- Display: Frequency , Display status , Mute , RF signal strength
- Controls: Volume control per channel, power switch, encoder, menu
- Connections: Microphone via 1 x 6.3 mm jack (unbal.)
- Material: Metallic
- Housing design (19") 48.3 cm Rack installation 1 HE
- Installation depth: 21 cm
- Cap type: Ø 2.54 mm
- Battery: 2 x Mignon (AA) (not included in delivery)
- RF output power: 30 mW (HI); 20 mW (LO)
- Switch: On/off/mute switch
- Switching bandwidth 34 MHz
- Parallel operation: Max 24 transmitters in 2 bands
- Diversity: True diversity
- Latency: Less than 3 ms
- Equalizer: 7-band graphic equalizer
- Product type
Wireless microphone set
- Transfer type
Radio
- Characteristics
Cardioid
- Features
Switch
- Weight
0.351 kg
- Width
48.3 cm
- Height
1 U
- (Ø)
49.5 mm
- Dim
(Ø x H) 49.5 mm x 1 U
- Interfaces
Microphone (6.3 mm jack)
- Frequency range
50 - 16000 Hz
- Factory colour
Black
- Depth
21 cm
60 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729702 Wireless microphone set Omnitronic UHF-604 Transfer type (details):Radio Switch
Description
True diversity radio system with auto scan, 7-band EQ and TFT color displays. Multi-frequency radio receiver with true diversity technology for maximum reception quality. Suitable for large multi-channel systems. Range of up to 60m with visibility. Up to 24 transmitters in 2 bands can be operated in parallel without any problems. Receiver. Automatic frequency setup ID-check of the transmitter prevents faulty use and interference of external radio transmitters. Different user colors can be selected for simple differentiation. 7-band equalizer for sound tuning. Multifunctional Jog Dial for menu navigation Lock feature prevents accidental changing of settings. (19") 48.3 cm rack installation 1 HE. Extremely low latency. Multi-colored TFT display. Microphone Directionality: Kidney. Multi-colored LCD display. Battery level indicator
This text is machine translated.
This text is machine translated.

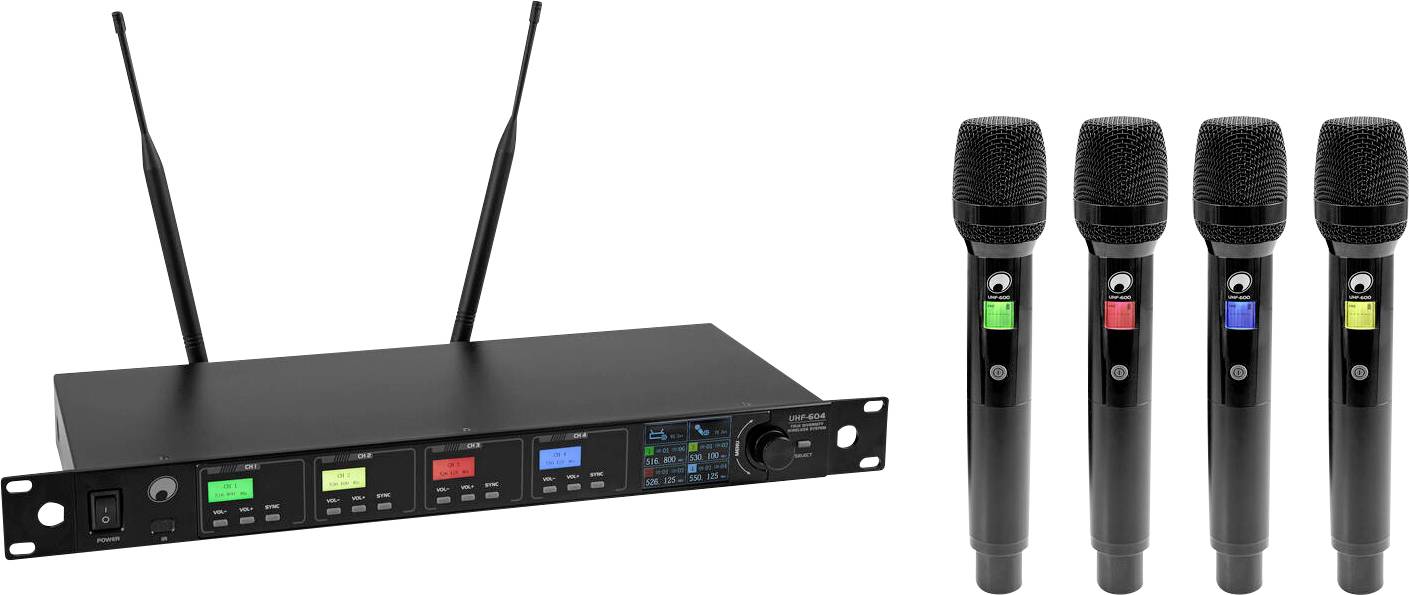

Scope of delivery
- 1 x receiver
- 2 x Antenna
- 1 x external power supply
- 1 x jack cables
- 4 x Microphone
- 4 x holder
- 4 x Base
- 1x user manual
- 1 x declaration of conformity.
