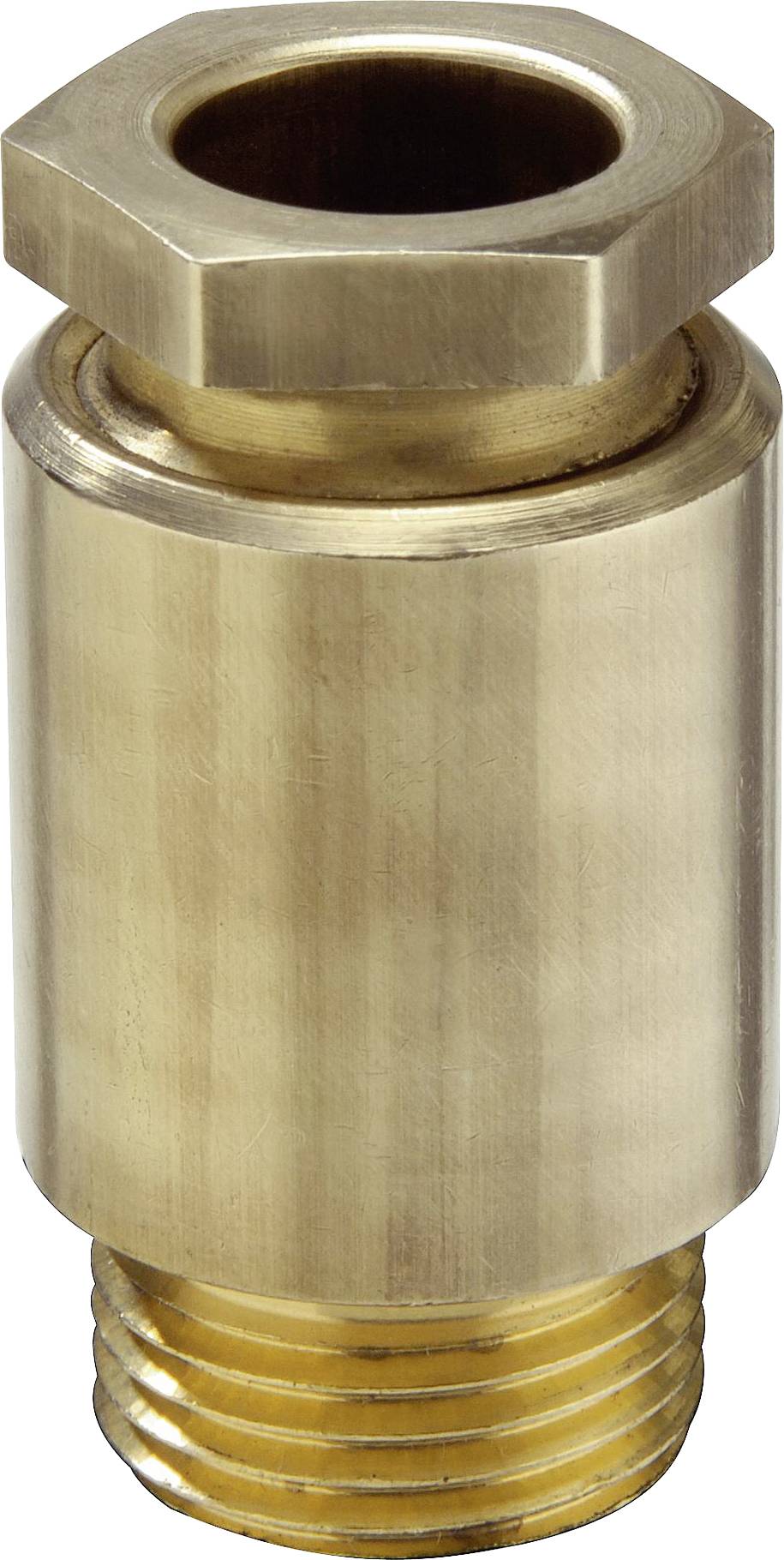

Wiska 10010855 Cable gland shockproof, with seal M72 Brass Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M72
Type
straight
Material
Brass
Clamp Ø
41 mm
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Thread pitch 2 mm
- Hexagonal corner dimensions 75 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M72
- Type
straight
- Material
Brass
- Clamp Ø
41 mm
- Terminal Ø (max.)
44.5 mm
- Thread length
16 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
70 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10010855
- Type
KVM 72-Z44
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2476908 Wiska 10010855 Cable gland shockproof, with seal M72 Brass Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
