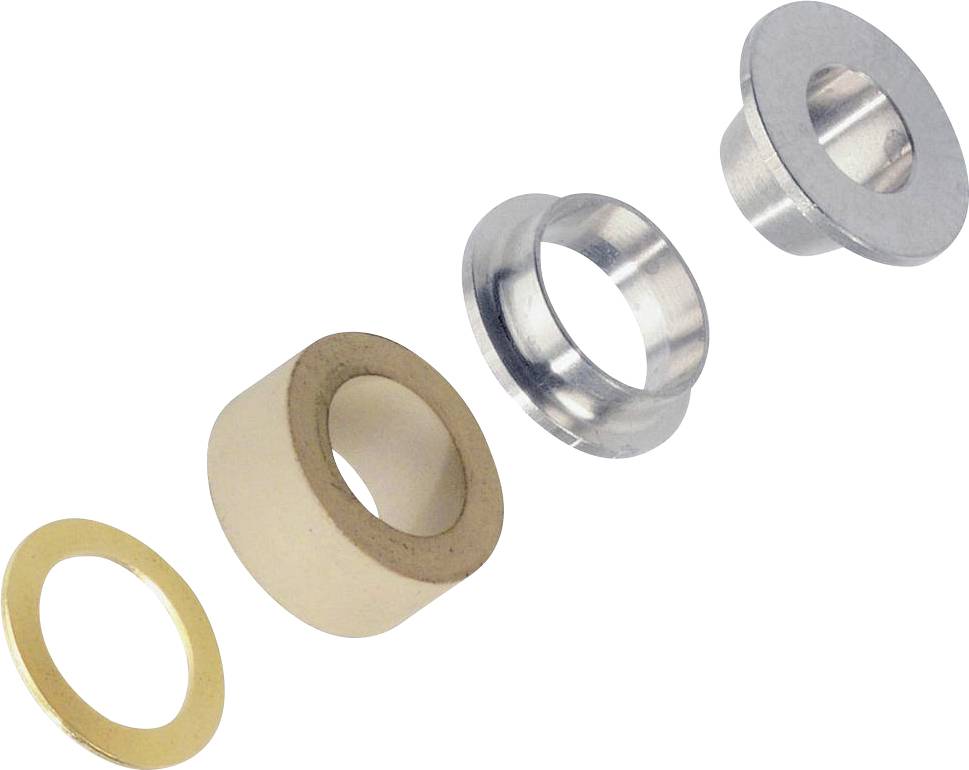

Wiska 10014294 Cable gland shockproof, with seal M40 Brass (Ni-plated) Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M40
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
20 mm
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.

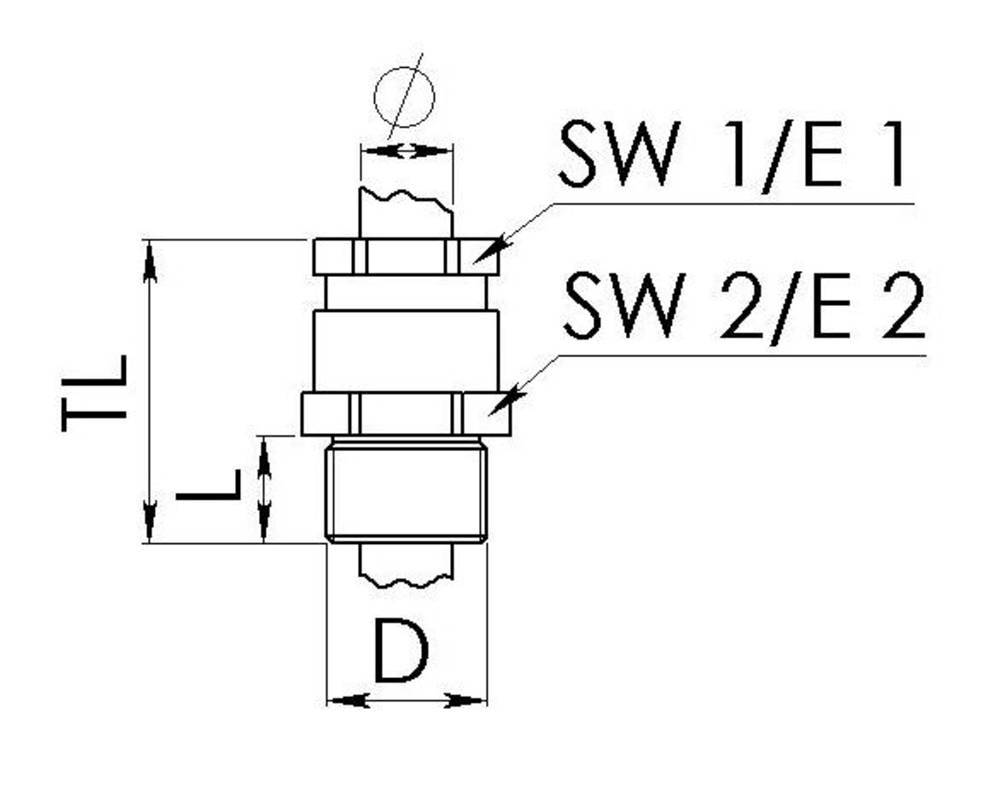

Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 42 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M40
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
20 mm
- Terminal Ø (max.)
22.5 mm
- Thread length
13 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
36 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10014294
- Type
EKVM 36/40-Z22 Ni
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2476973 Wiska 10014294 Cable gland shockproof, with seal M40 Brass (Ni-plated) Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
This text is machine translated.
