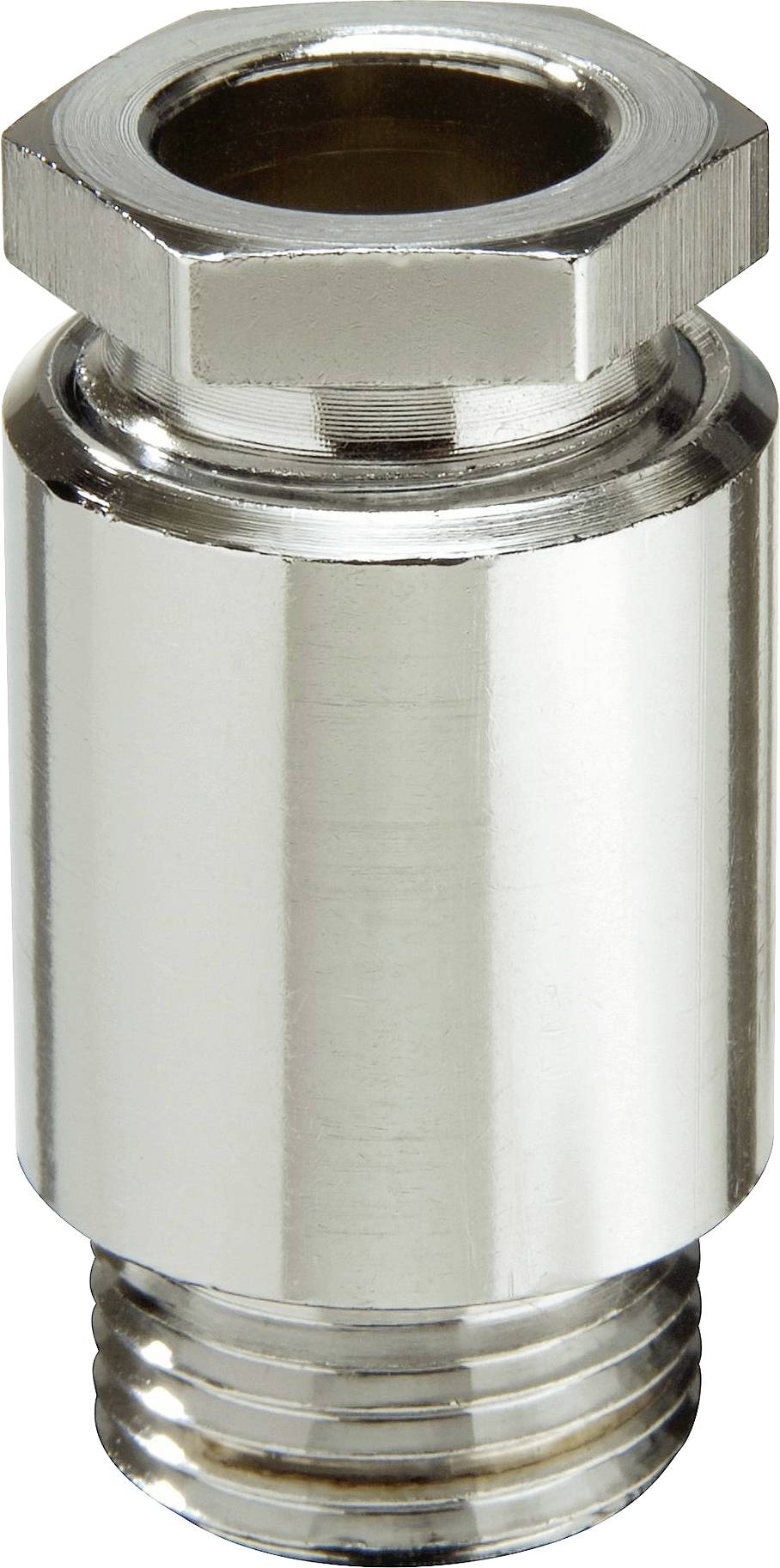

Wiska 10014551 Cable gland shockproof, with seal M72 Brass (Ni-plated) Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M72
Type
straight
Material
Brass (Ni-plated)
Clamp Ø
48 mm
Number
Total (€ 163.86 / piece)
€ 168.66
€ 163.86
plus VAT.
Technical specifications
- Thread pitch 2 mm
- Hexagonal corner dimensions 75 mm
- Type of seal: Sealing ring
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M72
- Type
straight
- Material
Brass (Ni-plated)
- Clamp Ø
48 mm
- Terminal Ø (max.)
52.5 mm
- Thread length
16 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
70 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10014551
- Type
KVM 72-Z52 Ni
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2477020 Wiska 10014551 Cable gland shockproof, with seal M72 Brass (Ni-plated) Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
