Wiska 10016338 Cable gland shockproof, with seal M40 Brass Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M40
Type
straight
Material
Brass
Clamp Ø
20 mm
Sales and shipping:
Number
Total (€ 36.13 / piece)
€

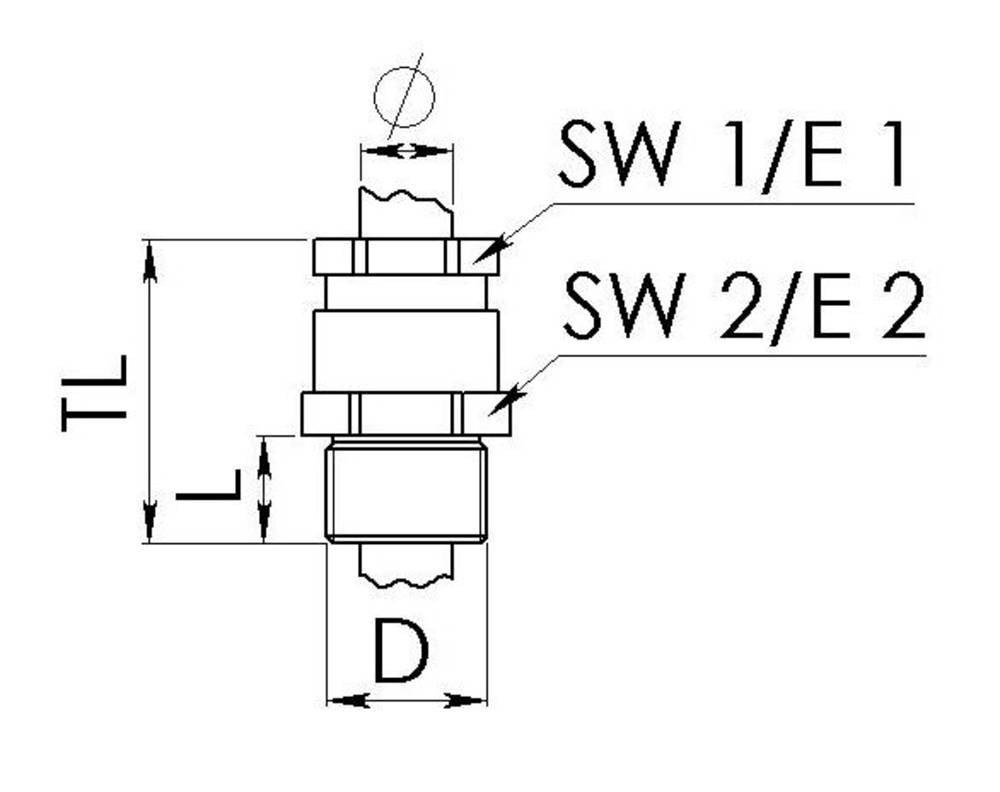

Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 42 mm

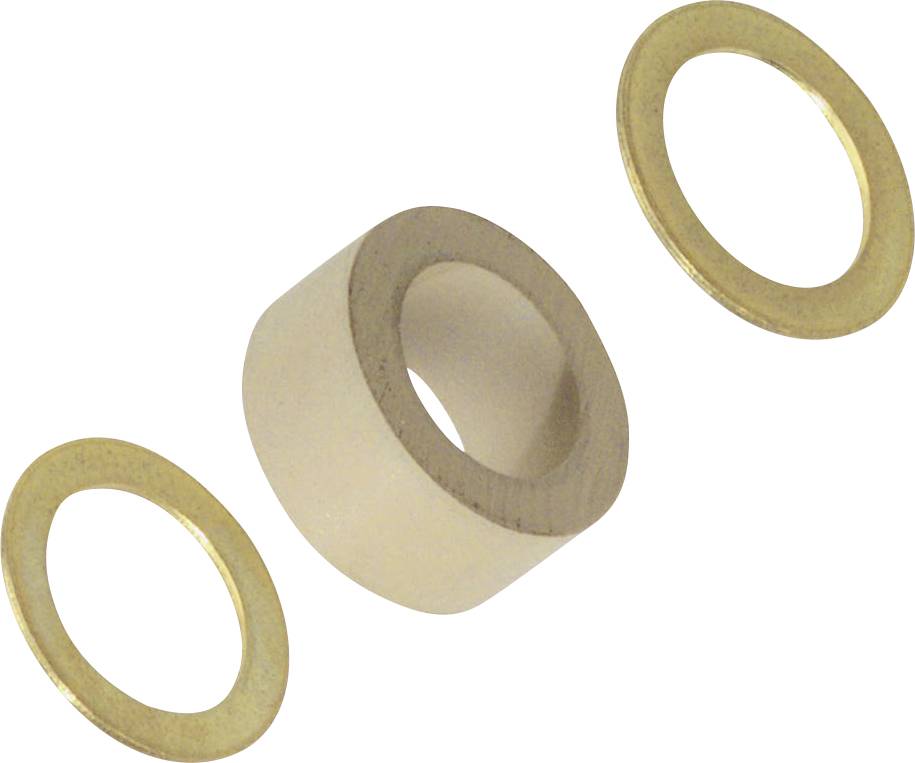

- Type of seal: Sealing ring
- Product type
Cable gland
- Features
shockproof
with seal
- Factory colour
Ecru
- External thread
M40
- Type
straight
- Material
Brass
- Clamp Ø
20 mm
- Terminal Ø (max.)
22.5 mm
- Thread length
13 mm
- Min. temperature
-40 °C
- Max. temperature
+100 °C
IP54
- Spanner size
36 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10016338
- Type
EKVM 36/40-W22
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2477107 Wiska 10016338 Cable gland shockproof, with seal M40 Brass Ecru 1 pc(s)
Description
Cable entry according to DIN 89280 for cable without shielding.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
