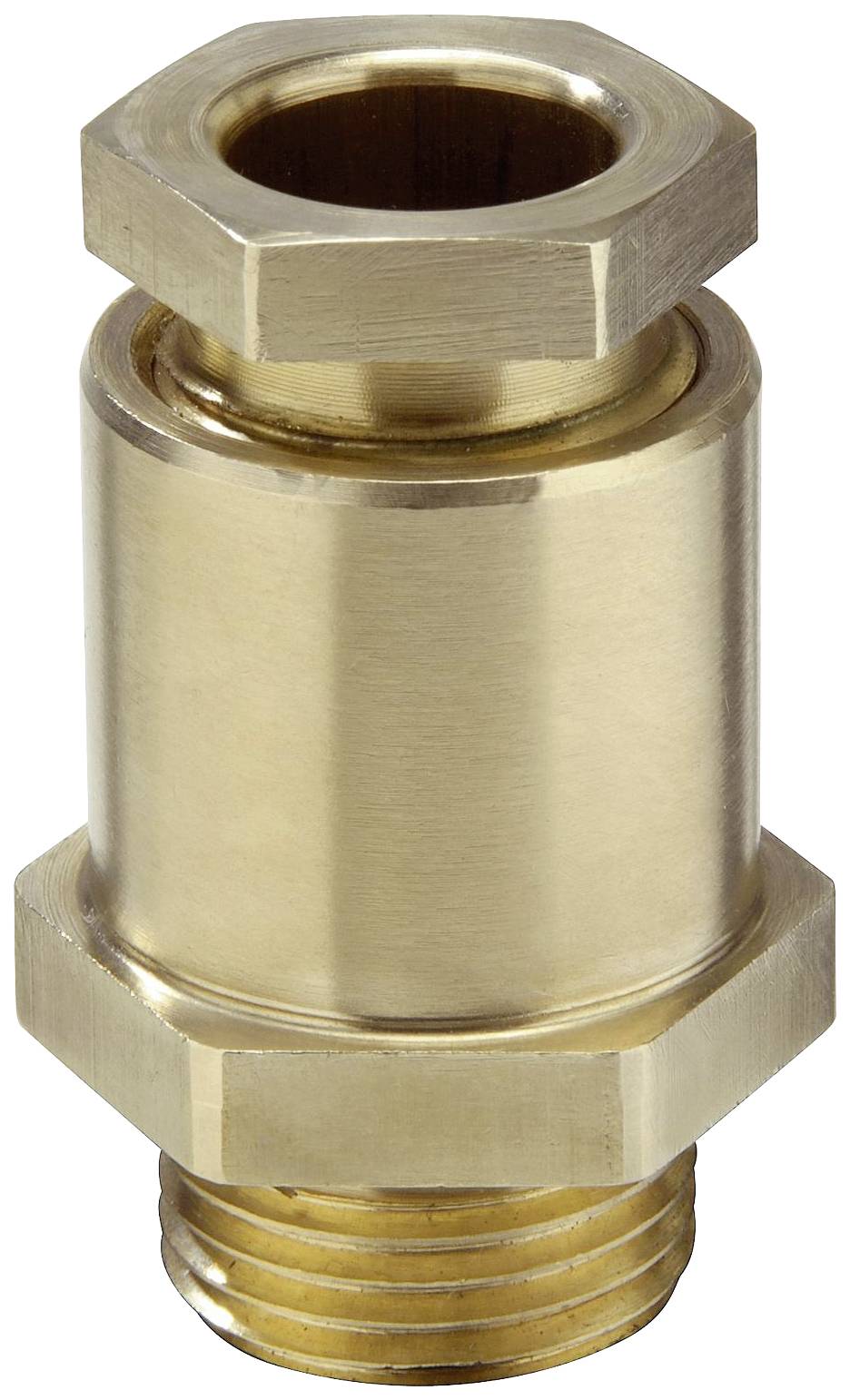

Wiska 10016506 Cable gland shockproof M20 Brass Ecru 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M20
Type
straight
Material
Brass
Clamp Ø
0 mm
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 28 mm
- EMC design: Yes
- Shielded: Yes
- Product type
Cable gland
- Features
shockproof
- Factory colour
Ecru
- External thread
M20
- Type
straight
- Material
Brass
- Clamp Ø
0 mm
- Terminal Ø (max.)
10.6 mm
- Thread length
10 mm
- Min. temperature
-30 °C
- Max. temperature
+80 °C
IP30
- Spanner size
24 mm
- Halogen-free
Yes
- Content
1 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
10016506
- Type
EKVM 24/20 VG B 24-10
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2477129 Wiska 10016506 Cable gland shockproof M20 Brass Ecru 1 pc(s)
Description
EMC cable entry according to DIN 89280 for shielded cables.
This robust cable entry is particularly suitable for use in harsh industrial environments.
The seals have good resistance to ozone, weather and aging influences.
