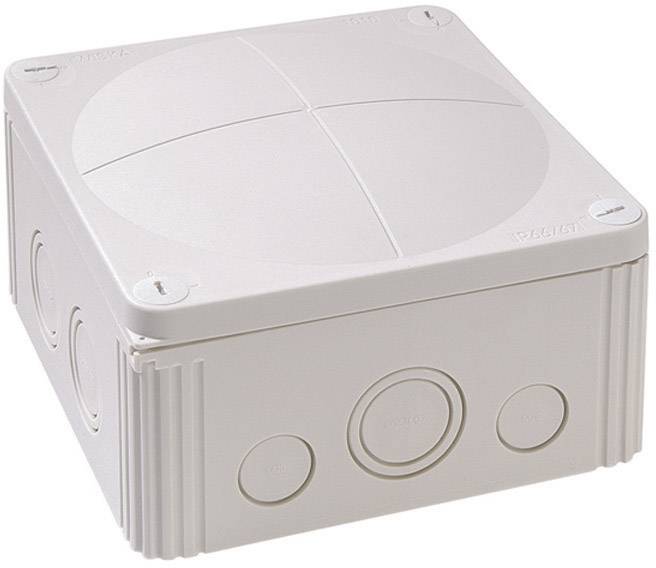

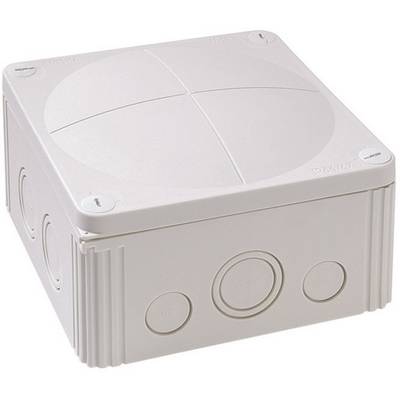

Wiska 10060702 Junction box (L x W x H) 140 x 140 x 82 mm Grey-white (RAL 7035) IP66/IP67 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 12.60
-7 %
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details
Kombi 1010 cable junction box gray
- IP66/67
- Halogen-free thermoplastic
- 4 non-detachable cover screws
Technical specifications
- Set temperature: -30 to 100 °C, short period up to 120 °C
- Non flammable: Filament testing 750 °C as per EN 60695-2-11
- 690 V
- 10 mm² terminals
- Product type
Junction box
- Factory colour
Grey-white (RAL 7035)
IP66/IP67
- Dim
(L x W x H) 140 x 140 x 82 mm
- Type
1010
- Features
Halogen-free
w/o terminal block
- Content
1 pc(s)
- Material
Polypropylene
- Width
140 mm
- Height
82 mm
- Length
140 mm
- Material (details)
Polypropylene, glass fibre reinforced; Seal: Thermoplastic Elastomer
Documents & Downloads
Datasheet
Datasheet 611736 Wiska 10060702 Junction box (L x W x H) 140 x 140 x 82 mm Grey-white (RAL 7035) IP66/IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 611736 Wiska 10060702 Junction box (L x W x H) 140 x 140 x 82 mm Grey-white (RAL 7035) IP66/IP67 1 pc(s)
Description
It is fixed by 4 internal openings outside the sealing area. With 10 knockouts on sides (5xM25/32, 2xM 20, 3xM 20/25) as well as 4 knockouts in base (2xM 25/32, 2xM 20/25)
