Wiska Clixx 20 Cable grommet Terminal Ø (max.) 13 mm Polyamide, TPE (low-odour thermoplastic elastomer ) Grey-white (RAL
EAN:
Part number:
Item no:
Product type
Cable grommet
Material
Polyamide
TPE (low-odour thermoplastic elastomer )
Clamp Ø
6 mm
Terminal Ø (max.)
13 mm
Mounting hole
M20
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.82
15
7% = € 0.06
€ 0.76
25
11% = € 0.09
€ 0.73
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.82 / piece)
€ 4.10
plus VAT.
14-day return policy included
Highlights & Details
Wiska Clixx 20 Cable grommet Terminal Ø (max.) 13 mm Polyamide, TPE (low-odour thermoplastic elastomer ) Grey-white (RAL 7035) 1 pc(s)
Technical specifications
- Product type
Cable grommet
- Factory colour
Grey-white (RAL 7035)
- Material
Polyamide
TPE (low-odour thermoplastic elastomer )
- Clamp Ø
6 mm
- Terminal Ø (max.)
13 mm
- Mounting hole
M20
- Min. temperature
-40 °C
- Max. temperature
65 °C
IP66/IP67
- Halogen-free
No
- Content
1 pc(s)
- Manufacturer part #
10101359
- Type
Clixx 20
- RoHS-compliant
Yes
- External thread
M20
- Material (details)
PA/TPE
- Type
Clixx 20
- Clamping range diameter mm
6 - 13 mm
- Temperature range
-40 - +80 °C
- Size
M20
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 530022 Wiska Clixx 20 Cable grommet Terminal Ø (max.) 13 mm Polyamide, TPE (low-odour thermoplastic elastomer ) Grey-white (RAL
User & Safety Instructions
User & Safety Instructions 530022 Wiska Clixx 20 Cable grommet Terminal Ø (max.) 13 mm Polyamide, TPE (low-odour thermoplastic elastomer ) Grey-white (RAL
Description

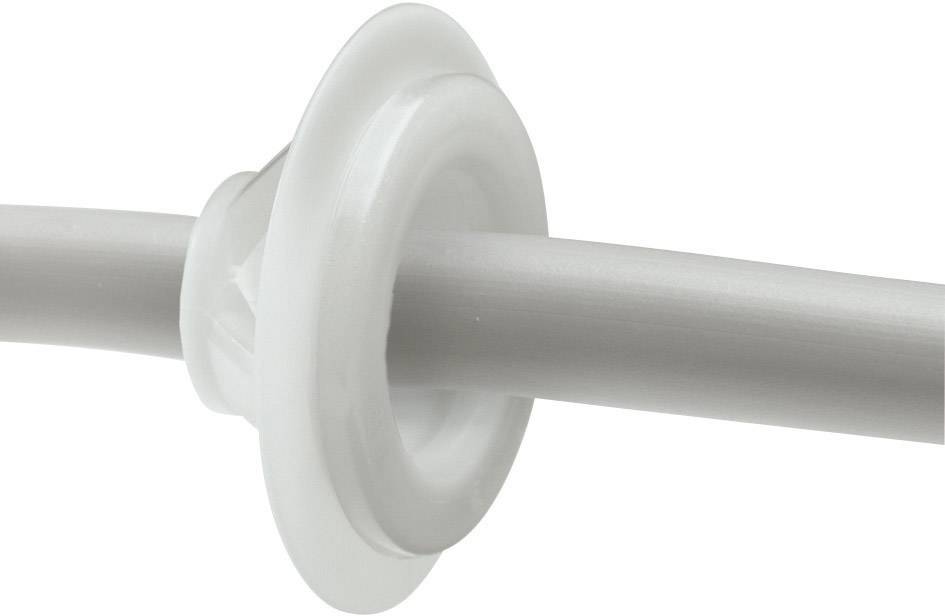

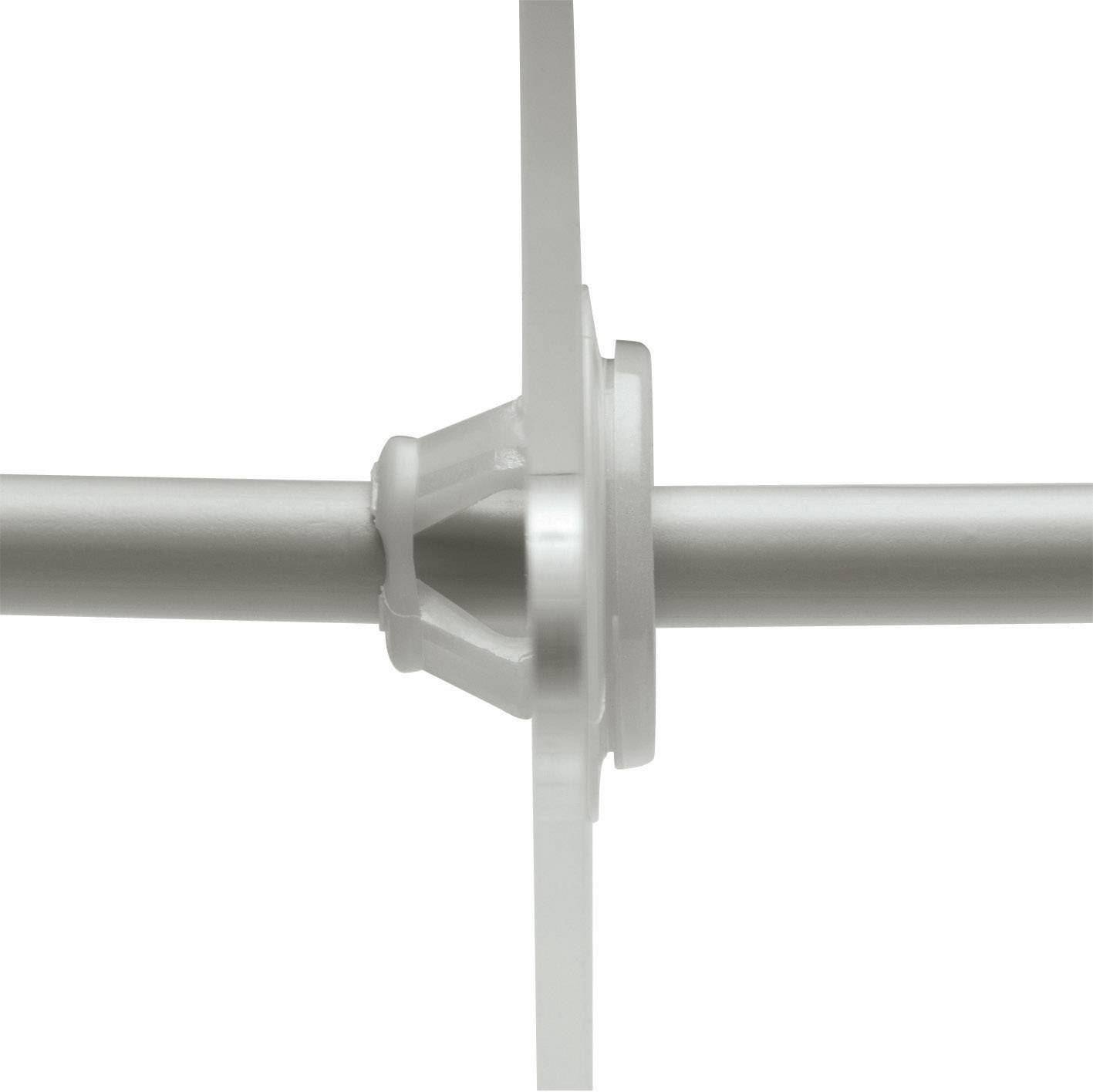

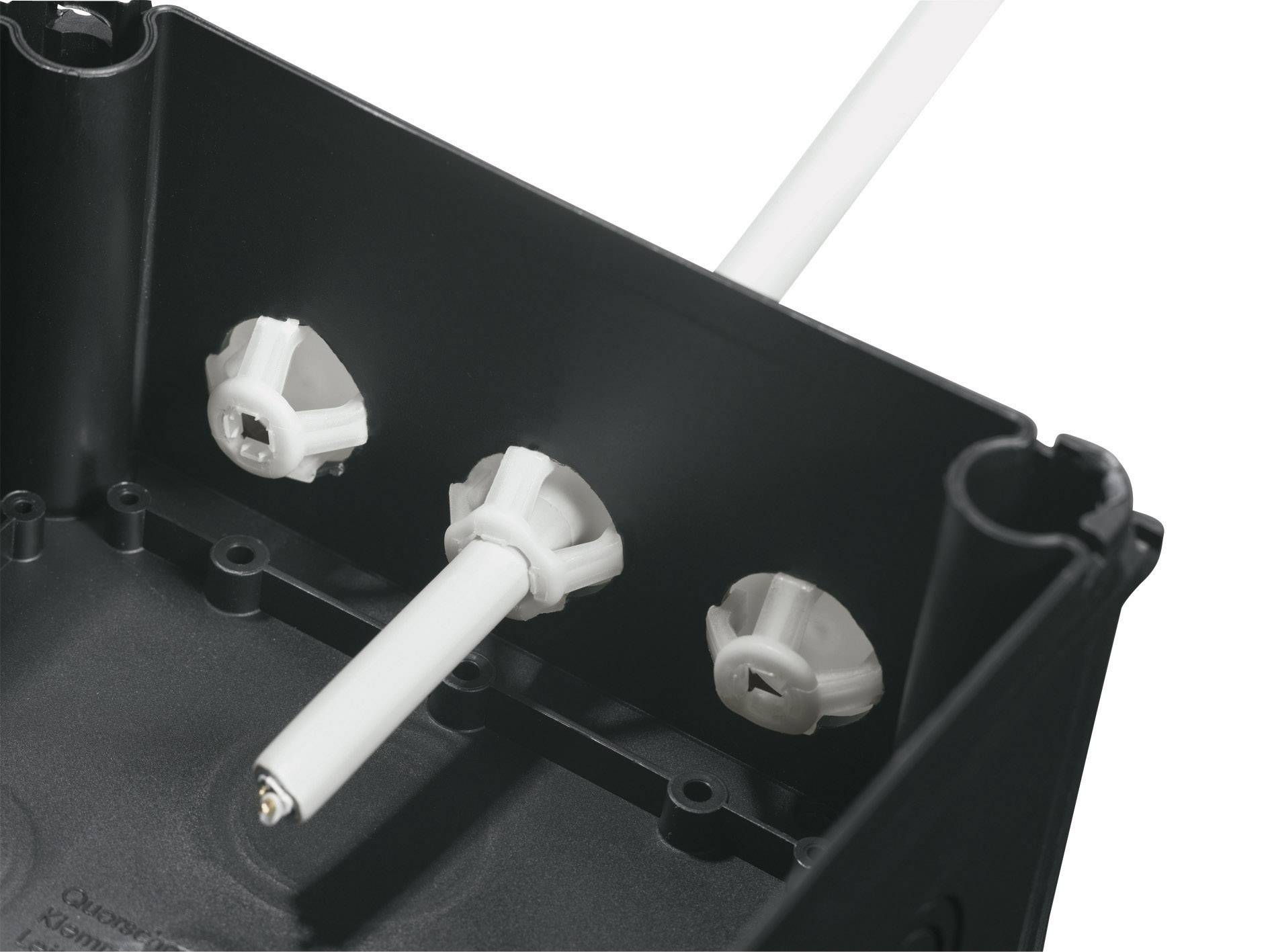

Cable bushing WISKA CLIXX for quick and easy installation without the need for tools or counter nuts. Suitable for housing wall thicknesses ranging from 0.8–3.5 mm. Strain relief according to EN 50262 type A.
