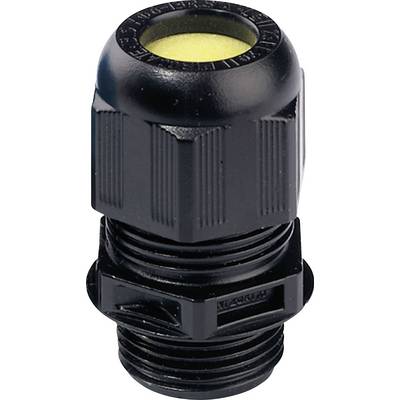

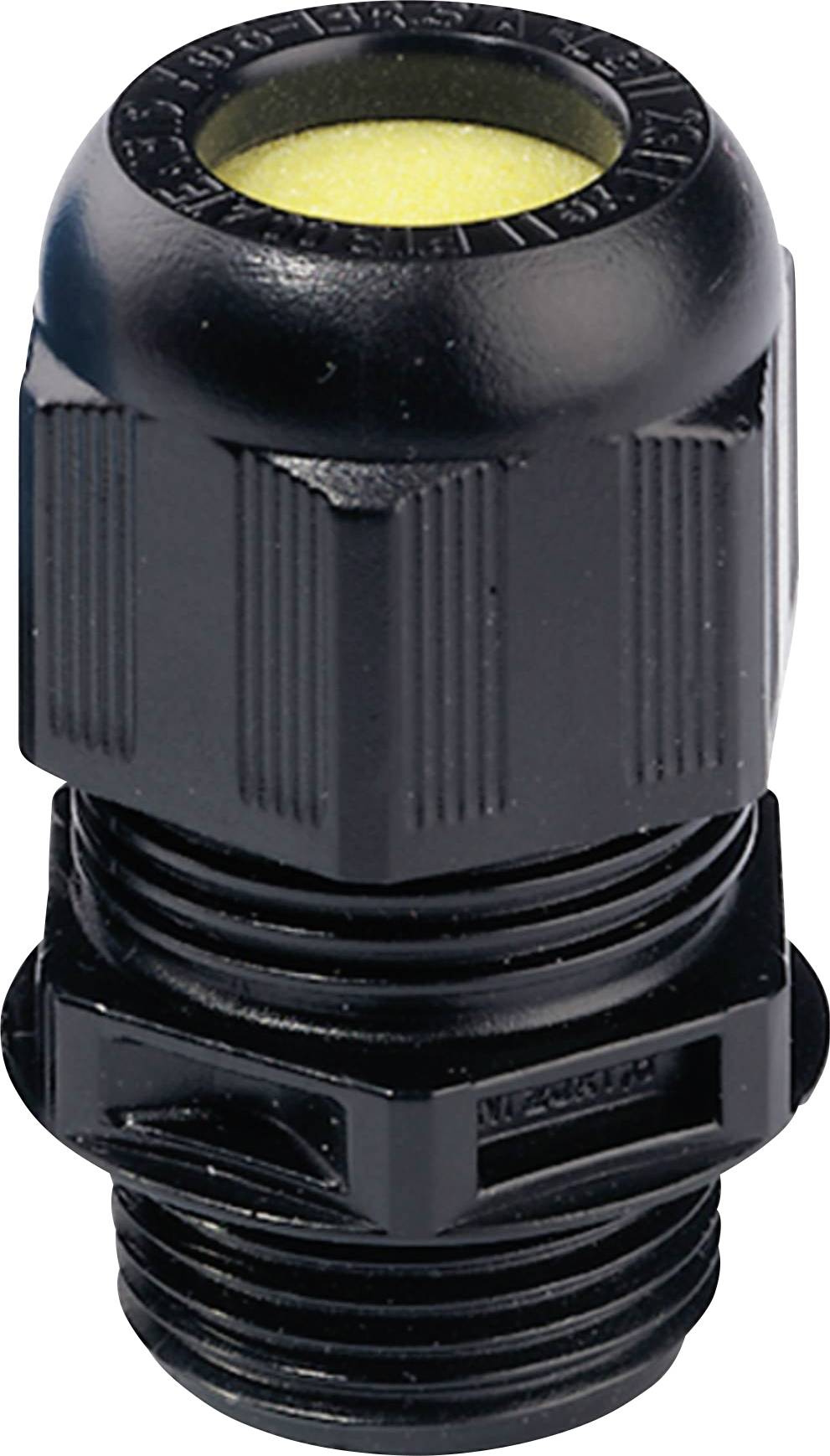

Wiska 10103363 Cable gland shockproof, with strain relief, with seal M12 Polyamide Black (RAL 9005) 50 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
M12
Type
straight
Material
Polyamide
Clamp Ø
3 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 3.03 / piece)
€
Technical specifications
- Thread pitch 1.5 mm
- Hexagonal corner dimensions 18 mm
- Type of seal: Sealing ring
- Product type
Cable gland
- Features
shockproof
with strain relief
with seal
- Factory colour
Black (RAL 9005)
- External thread
M12
- Type
straight
- Material
Polyamide
- Clamp Ø
3 mm
- Terminal Ø (max.)
6 mm
- Thread length
9 mm
- Min. temperature
-40 °C
- Max. temperature
+75 °C
IP68
- Spanner size
16 mm
- Halogen-free
Yes
- Content
50 pc(s)
- RoHS-compliant
Yes
- Ex Zoning
1
2
21
22
- Manufacturer part #
10103363
- Type
ESKE/1-e 12
Variants(All information is without VAT, plus shipping costs)
Clamp Ø
Material
Terminal Ø (max.)
External thread
Features
Wiska 10010384 Cable gland shockproof, with seal M18 Brass (Ni-plated) Ecru 1 pc(s)
8 mm
Brass (Ni-plated)
10.5 mm
M18
shockproof
Minimum order quantity: 1
Multiple: 1
€ 22.68*
Wiska 10010833 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)
7 mm
Brass
8.5 mm
M18
shockproof
Minimum order quantity: 1
Multiple: 1
€ 12.60*
Wiska 10010835 Cable gland shockproof, with seal M18 Brass Ecru 1 pc(s)
8 mm
Brass
10.5 mm
M18
shockproof
Minimum order quantity: 1
Multiple: 1
€ 12.60*
Wiska 10010836 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)
7 mm
Brass
8.5 mm
M24
shockproof
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Wiska 10010837 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)
8 mm
Brass
10.5 mm
M24
shockproof
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Wiska 10010839 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)
10 mm
Brass
12.5 mm
M24
shockproof
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Wiska 10010840 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)
12 mm
Brass
14.5 mm
M24
shockproof
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Wiska 10010841 N/A shockproof, with seal M24 Brass Ecru 1 pc(s)
14 mm
Brass
16.5 mm
M24
shockproof
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Wiska 10010842 Cable gland shockproof, with seal M24 Brass Ecru 1 pc(s)
16 mm
Brass
17.5 mm
M24
shockproof
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Wiska 10010843 Cable gland shockproof, with seal M30 Brass Ecru 1 pc(s)
16 mm
Brass
18.5 mm
M30
shockproof
Minimum order quantity: 1
Multiple: 1
€ 21.00*
Documents & Downloads
Datasheet
Datasheet 2478065 Wiska 10103363 Cable gland shockproof, with strain relief, with seal M12 Polyamide Black (RAL 9005) 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2478065 Wiska 10103363 Cable gland shockproof, with strain relief, with seal M12 Polyamide Black (RAL 9005) 50 pc(s)
Description
SPRINT® Ex cable gland made of high-quality polyamide 6.6 for indoor and outdoor use.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing with a connection thread sealing ring. All seals are designed in EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overturning of the cap nut.
Approved according to IEC EX and ATEX.
This text is machine translated.
Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing with a connection thread sealing ring. All seals are designed in EPDM and are characterized by excellent resistance to water, ozone, UV radiation and chemicals. The self-locking cap nut thread offers optimum vibration protection and protection against overturning of the cap nut.
Approved according to IEC EX and ATEX.
