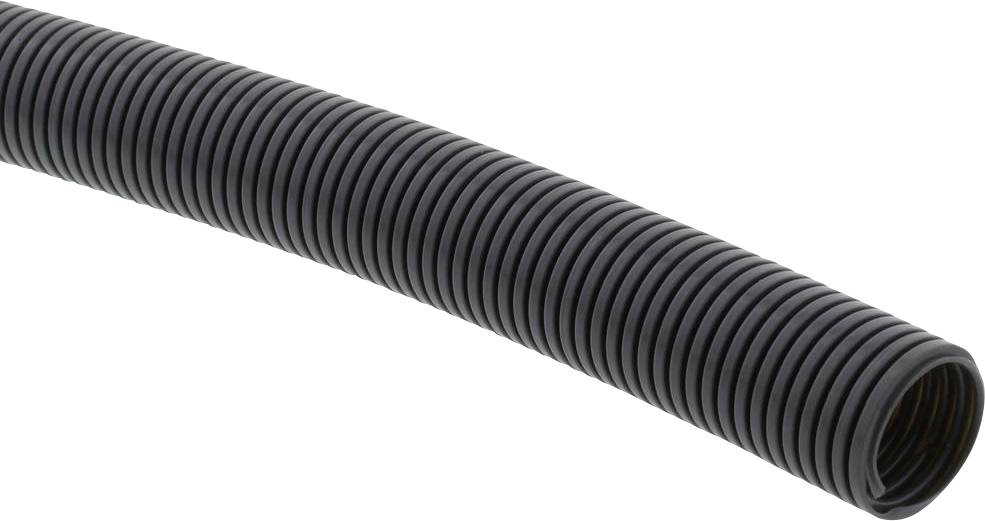

Wiska 10109178 BCA-S-48-BG Conduit Grey 47.7 mm 25 m
EAN:
Part number:
Item no:
Product type
Conduit
Content
25 m
Material
Polyamide 6
Conduit features
halogen-free
UV-resistant
oil-resistant
Inside diameter
47.7 mm
Datasheet (PDF)
Number
Total (1 m = € 8.91)
€ 289.92
-23 %
€ 222.69
plus VAT.
14-day return policy included
Highlights & Details
CORRUGATED TUBE PA6 UL94-V0, NW48
Our service for you
Technical specifications
- Product type
Conduit
- Content
25 m
- Factory colour
Grey
- Material
Polyamide 6
- Conduit features
halogen-free
UV-resistant
oil-resistant

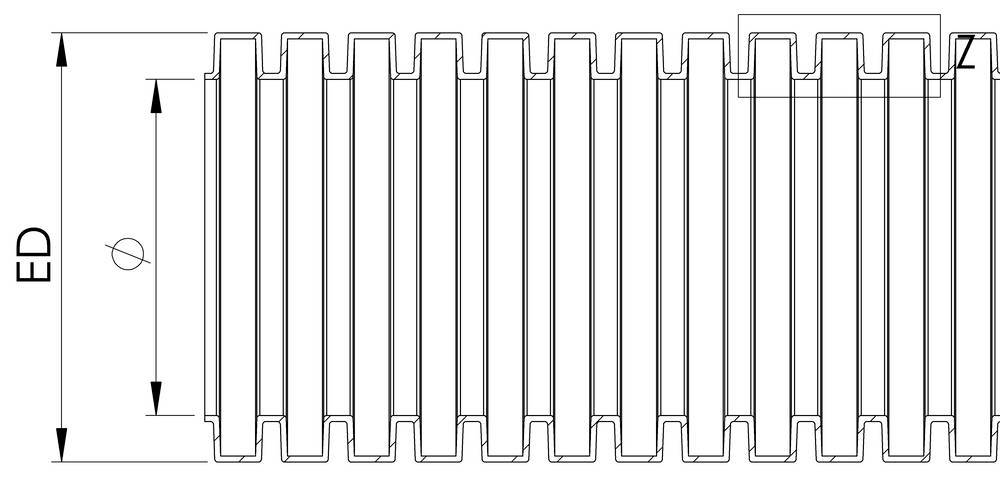

- Inside diameter
47.7 mm
- Outside Ø
54.5 mm
- Max. temperature
+140 °C
- Min. temperature
-40 °C
- Length
25 m
- Bend radius
117 mm
- Fire protection properties
V0
- Manufacturer part #
10109178
- RoHS-compliant
Yes
- Type
BCA-S-48-BG
Documents & Downloads
Datasheet
Datasheet 2479811 Wiska 10109178 BCA-S-48-BG Conduit Grey 47.7 mm 25 m
User & Safety Instructions
User & Safety Instructions 2479811 Wiska 10109178 BCA-S-48-BG Conduit Grey 47.7 mm 25 m
Description
Plastic protective hose to protect cables from mechanical stress, sand and moisture.
