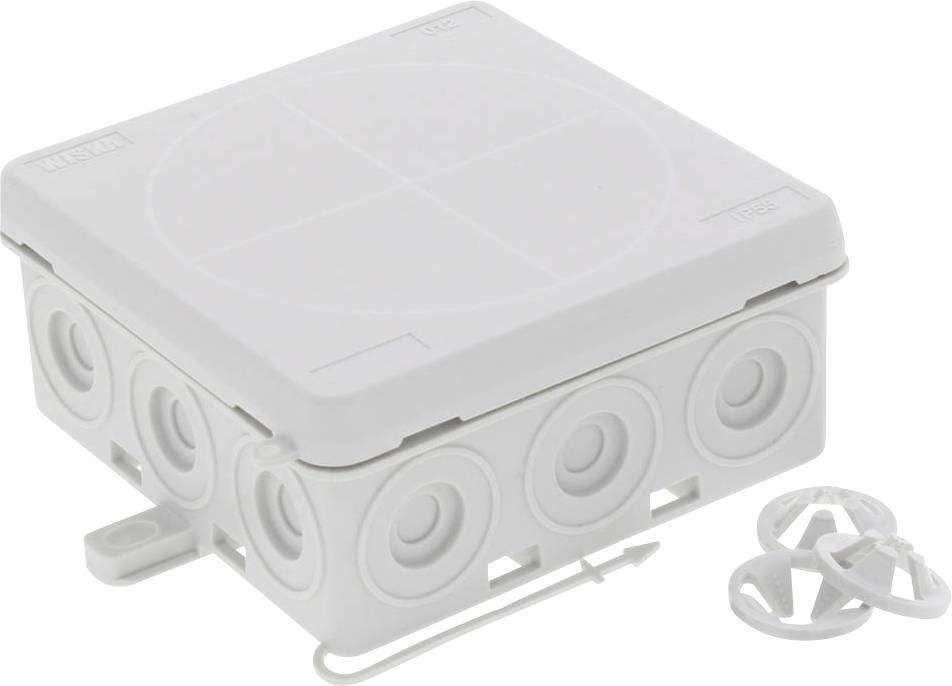

Wiska 10110196 Junction box (L x W x H) 86 x 86 x 41 mm Grey IP55 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
5% = € 0.67
€ 12.77
5
7% = € 0.94
€ 12.50
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 1.34 / piece)
€ 14.28
-6 %
€ 13.44
plus VAT.
14-day return policy included
Technical specifications
- Max. Conductor cross-section: 4 mm²
- Mounting type: universal
- For pipe diameter 20 mm
- Number of introductions: 16

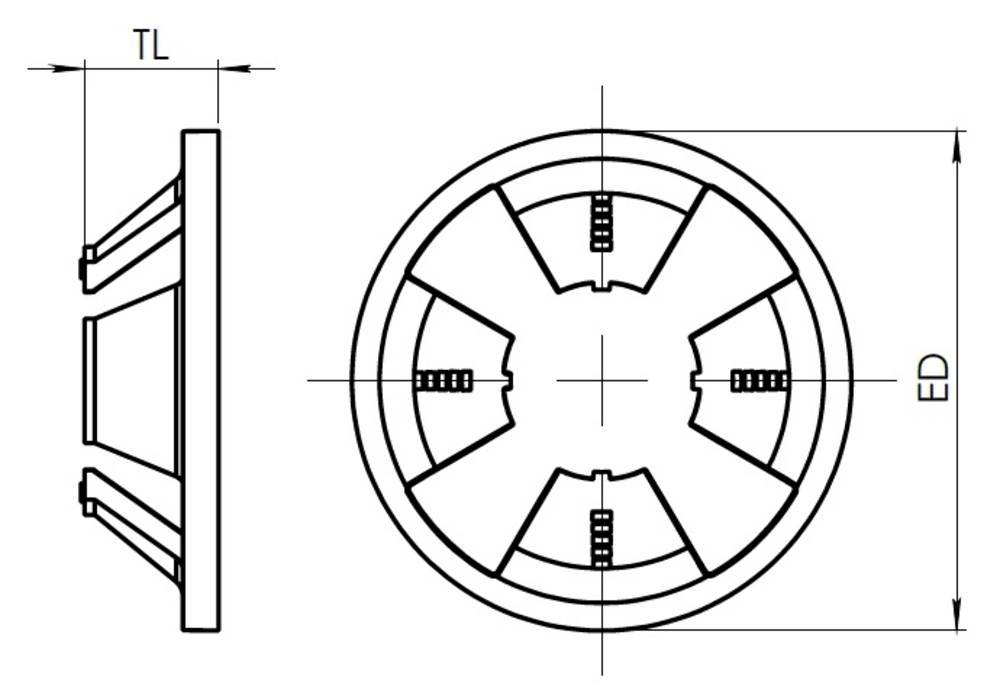

- Type of housing bushing: Can be cut off step membrane
- Cover type: Blind cover, snap-on
- Rated insulation voltage UI: 400 V.
- Product type
Junction box
- Factory colour
Grey
IP55
- Permanent temperature resistance
-30 °C - +60 °C
- Dim

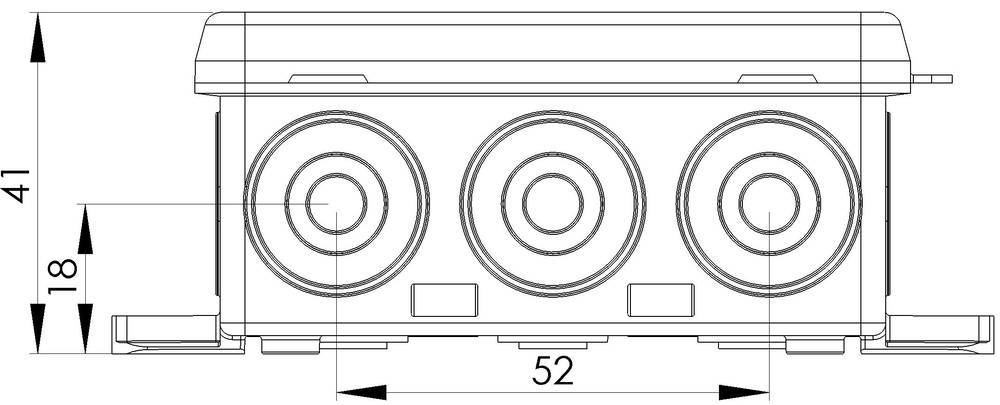

(L x W x H) 86 x 86 x 41 mm
- Type
Square
- Features
Halogen-free
- Content
10 pc(s)
- Material
Plastic
- Width
86 mm
- Height
41 mm
- Length
86 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2480137 Wiska 10110196 Junction box (L x W x H) 86 x 86 x 41 mm Grey IP55 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2480137 Wiska 10110196 Junction box (L x W x H) 86 x 86 x 41 mm Grey IP55 10 pc(s)
Description

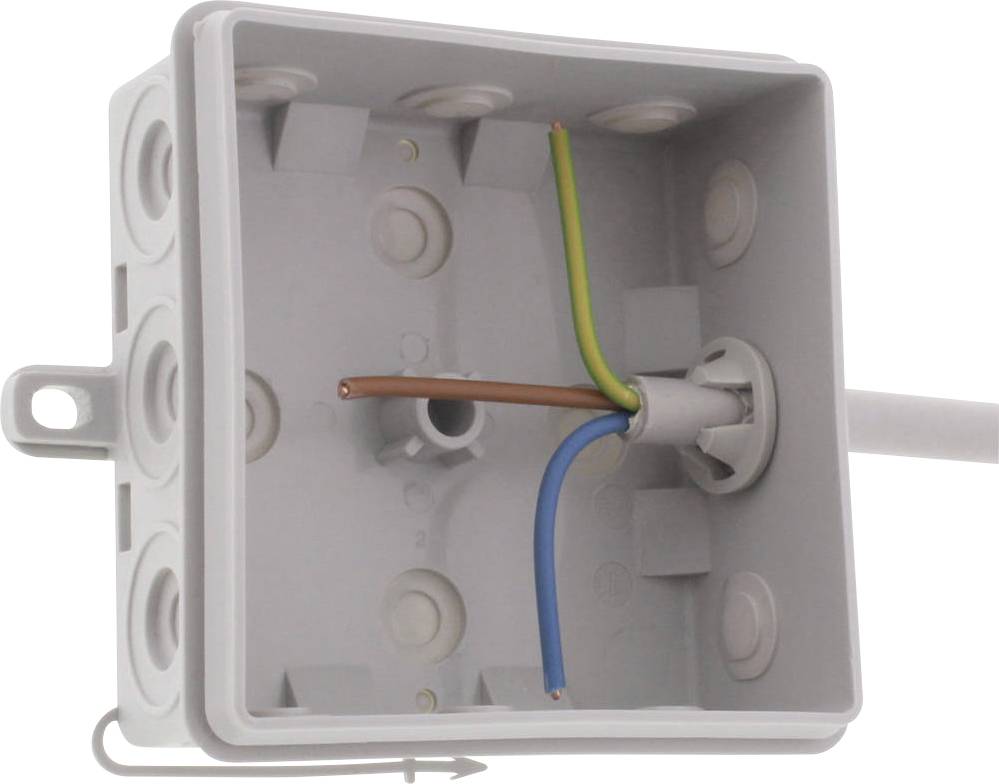

Wet room cable junction box with various mounting options. Also suitable for protected outdoor installation.
The soft box casing ensures a good attachment even on uneven surfaces by its flexibility. Nevertheless, the box remains dimensionally stable due to its hard cover and is tightly and securely closed.
Due to the possibility of sealing the cover, it cannot be lost even during overhead mounting.
The KA series is available in various sizes and colors.
This text is machine translated.
The soft box casing ensures a good attachment even on uneven surfaces by its flexibility. Nevertheless, the box remains dimensionally stable due to its hard cover and is tightly and securely closed.
Due to the possibility of sealing the cover, it cannot be lost even during overhead mounting.
The KA series is available in various sizes and colors.
This text is machine translated.
