Buy Wiska EMS 20 Cable router with pierceable membrane, with locknut Terminal Ø (max.) 13 mm Board thickness (max.) 9 mm Pla

Plastic end cap in light grey, with 'WISKA' printed on the side, designed for sealing openings.

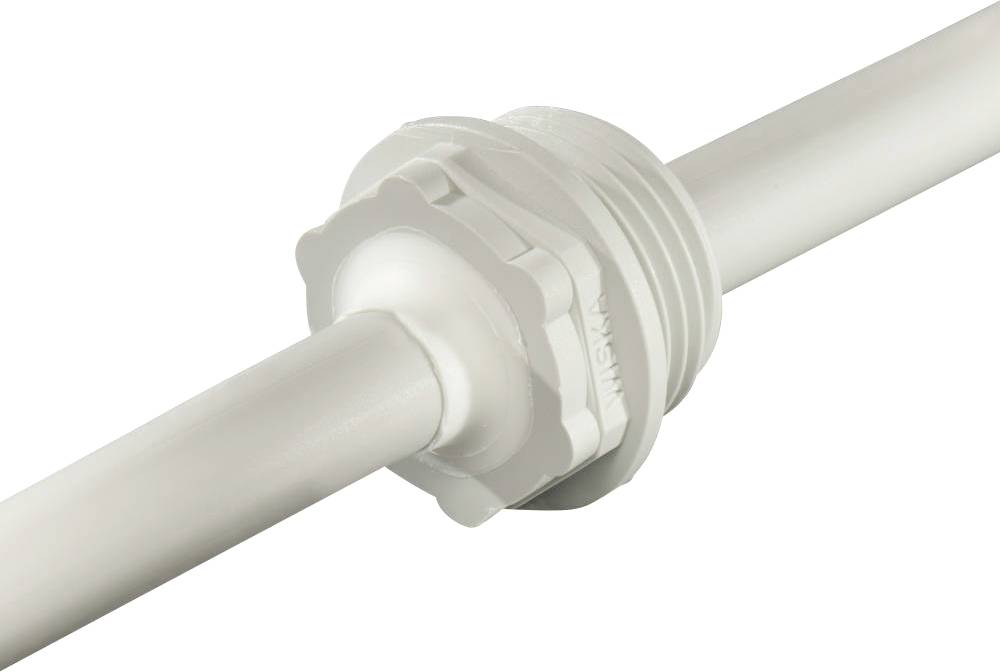

White plastic pipe fitting connects two pipes.

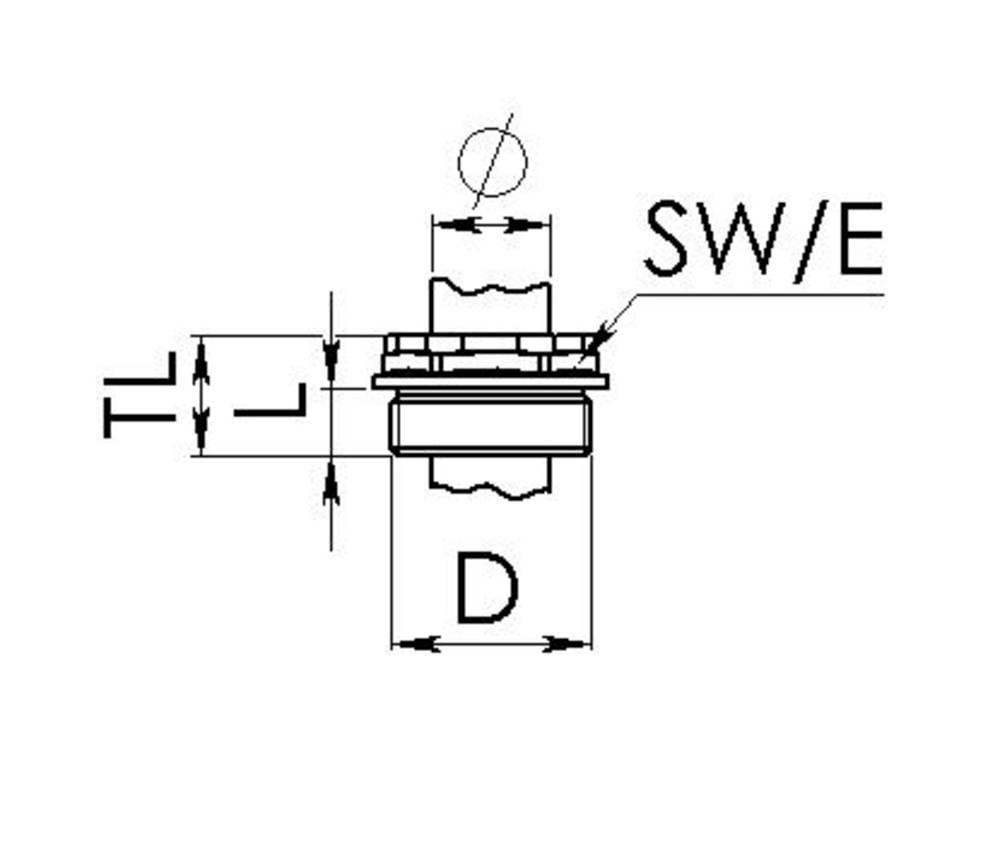

Technical drawing of a screw with dimensions. Marked are lengths 'L', 'TL', diameter 'D' and spanner width 'SW/E'.

1/3

Product type

Cable router

Features

with pierceable membrane

with locknut

Material

Plastic

Clamp Ø

1 mm

Terminal Ø (max.)

13 mm

Fast track dispatch on Mon, 5 Oct

5 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 0.35 / piece)

€ 35.29

plus VAT.

Only 5 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Membrane plastic cable entry M20

Our service for you

Technical specifications

Product type: Cable router

Features: with pierceable membrane
with locknut

Type: cuttable

Factory colour: Light grey

Material: Plastic

(Ø): 20 mm

Dim: (Ø) 20 mm

Clamp Ø: 1 mm

Terminal Ø (max.): 13 mm

Board thickness (max.): 9 mm

: IP66

Halogen-free: Yes

Content: 100 pc(s)

Manufacturer part #: 10062568

Type: EMS 20

RoHS-compliant: Yes

Variants(All information is without VAT, plus shipping costs)

Clamp Ø

Terminal Ø (max.)

Product type

Features

Wiska EMS 20 Cable router with pierceable membrane, with locknut Terminal Ø (max.) 13 mm Board thickness (max.) 9 mm Plastic Light grey 100 pc(s)

Item no:2477148

This article

1 mm

13 mm

Cable router

with pierceable membranewith locknut

Wiska EMT 16 Cable router with pierceable membrane Terminal Ø (max.) 9 mm Board thickness (max.) 9.5 mm Plastic Light grey 100 pc(s)

Item no:2477143

1 mm

9 mm

Cable router

with pierceable membrane

Wiska EMT 20 Cable router with pierceable membrane Terminal Ø (max.) 13 mm Board thickness (max.) 9.5 mm Plastic Light grey 100 pc(s)

Item no:2477144

1 mm

13 mm

Cable router

with pierceable membrane

Wiska EMT 25 Cable router with pierceable membrane Terminal Ø (max.) 18 mm Board thickness (max.) 9.5 mm Plastic Light grey 100 pc(s)

Item no:2477145

1 mm

18 mm

Cable router

with pierceable membrane

Wiska EMT 32 Cable router with pierceable membrane Terminal Ø (max.) 25 mm Board thickness (max.) 9.5 mm Plastic Light grey 100 pc(s)

Item no:2477146

1 mm

25 mm

Cable router

with pierceable membrane

Wiska EMS 16 Cable router with pierceable membrane Terminal Ø (max.) 9 mm Board thickness (max.) 9 mm Plastic Light grey 100 pc(s)

Item no:2477147

1 mm

9 mm

Cable router

with pierceable membrane

Wiska EMS 25 Cable router with pierceable membrane Terminal Ø (max.) 18 mm Board thickness (max.) 9 mm Plastic Light grey 100 pc(s)

Item no:2477149

1 mm

18 mm

Cable router

with pierceable membrane

Wiska EMS 32 Cable router with pierceable membrane, with locknut Mounting hole diameter 25 mm Terminal Ø (max.) 25 mm Board thickness (max.) 9 mm Plastic Light grey 100 pc(s)

Item no:2477150

1 mm

25 mm

Cable router

with pierceable membranewith locknut

Wiska EMT-F 16 Cable router Terminal Ø (max.) 9 mm Plastic White 100 pc(s)

Item no:2477151

1 mm

9 mm

Cable router

Wiska EMT-F 20 Cable router Terminal Ø (max.) 13 mm Plastic White 100 pc(s)

Item no:2477152

1 mm

13 mm

Cable router

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2477148 Wiska EMS 20 Cable router with pierceable membrane, with locknut Terminal Ø (max.) 13 mm Board thickness (max.) 9 mm Pla

Description

Innovative two-component cable entry made of high-quality plastics. This is screwed from the outside into a bore with metric thread or mounted in metric through holes with counter nut. The cable is inserted through the soft membrane and securely sealed, also suitable for special cables or the introduction of several cables.
