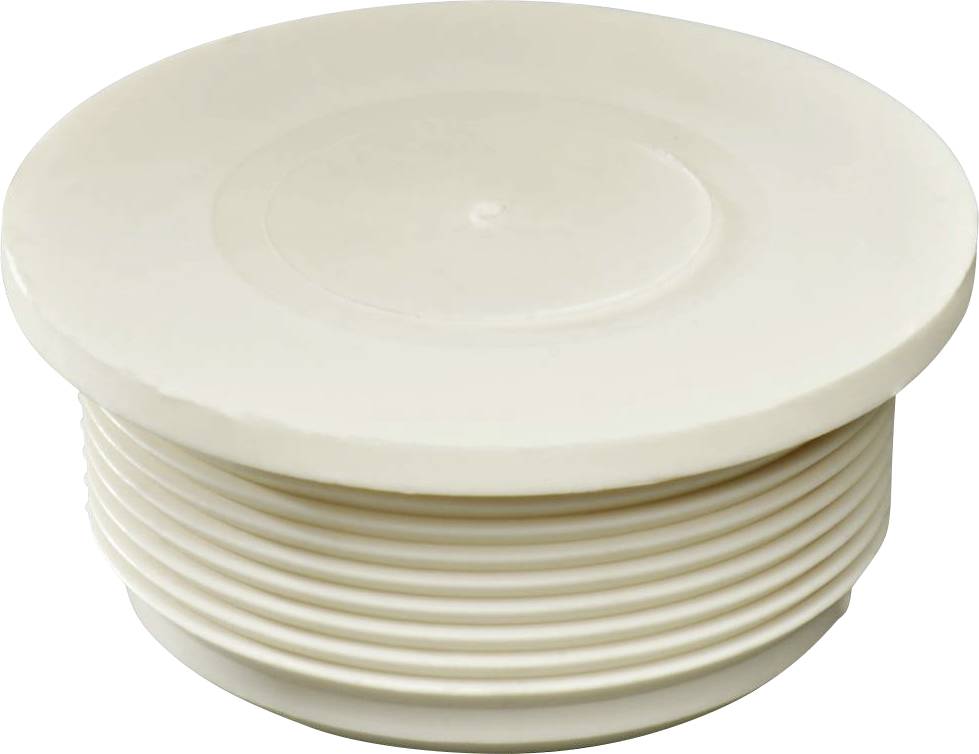

Wiska EMT-F 20 Cable router Terminal Ø (max.) 13 mm Plastic White 100 pc(s)
EAN:
Part number:
Item no:
Product type
Cable router
Material
Plastic
Clamp Ø
1 mm
Terminal Ø (max.)
13 mm
Type
cuttable
Number (Package size 100 pc(s))
Total (€ 0.49 / piece)
€ 48.73
plus VAT.
Only 6 Set(s) available
Highlights & Details
Membrane cable entry, flame-protected
Our service for you
Technical specifications
- Product type
Cable router
- Type
cuttable
- Factory colour
White
- Material
Plastic
- (Ø)
20 mm
- Dim
(Ø) 20 mm
- Clamp Ø
1 mm
- Terminal Ø (max.)
13 mm
IP66
- Halogen-free
Yes
- Content
100 pc(s)
- Manufacturer part #
10063009
- Type
EMT-F 20
- RoHS-compliant
Yes
- Material properties
flame retardant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2477152 Wiska EMT-F 20 Cable router Terminal Ø (max.) 13 mm Plastic White 100 pc(s)
Description
Innovative two-component cable entry made of flame-resistant plastics. This is inserted from the outside into a metric bore without thread, no mounting tool or counter nut is necessary. Can be used in housings with wall thicknesses from 0.2 mm. The cable is inserted through the soft membrane and securely sealed, also suitable for special cables or the introduction of several cables.
