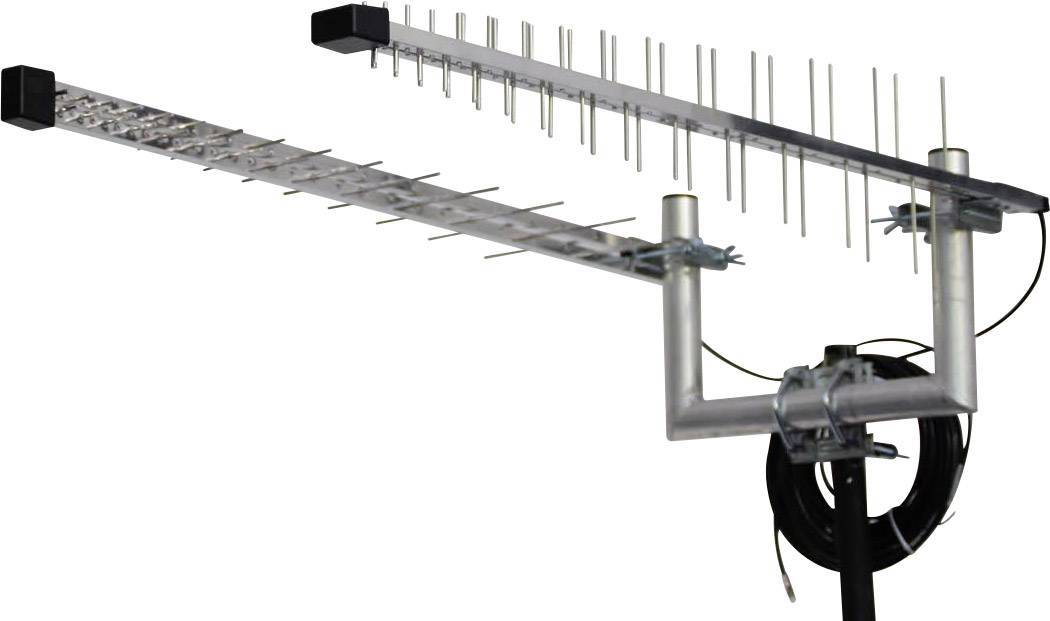

Wittenberg Antennen Duo Set 2x LAT 22 Directional antenna LTE 800
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Only 5 Piece(s) available
Highlights & Details
LTE Duo carry 2x LTE-LAT 22 (for LTE network)
- Antenna for the new LTE network
- For optimal reception even in weak reception areas
- Duo-Set
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
LTE
- Spotlight length
783 mm
- Cable length
10 m
- Connection
SMA
- Factory colour
Grey
- Gain
11 dB
- Antenna type
Directional antenna
- LTE frequency
800 MHz
- Suitable for mains
LTE 800
Documents & Downloads
Datasheet
Datasheet 662879 Wittenberg Antennen Duo Set 2x LAT 22 Directional antenna LTE 800
User & Safety Instructions
User & Safety Instructions 662879 Wittenberg Antennen Duo Set 2x LAT 22 Directional antenna LTE 800
Description
Since LTE works with the MIMO ( 2xRx 2x Tx) technology, most famous and already on the market LTE router (For example: Huawaii, Speedport, FRITZ!Box) with 2 external antenna connections. In order to use the optimal data rate of the LTE network you should always use 2 external antennas of the same type and mount them vertical on a horizontal level parallel at a distance of min. 20 cm. Specially designed for these applications are our Duo packs compiled and provided with all the components you need for an easy installation.
Features
- Vertical polarisation
- Incl. 10m connecting cable (Belden H155)
- FME-socket 50 OHM
- Frequency range 790 - 862 MHz
- 22 Elements
- Gain 11 dB
- Forward/backward ration 24 dB VSWR 1.7 : 1
- Opening angle: H 66° V 52°
- Length: 783 mm.
Scope of delivery
- 2 x LAT 22 log/per antenna including 10 m cable + FME connector
- 2 x adapter FME plugs to SMA plug
- 5 x cable ties
Hints
Please pay attention to the instructions under download documents.
