Wittenberg Antennen LAT 4400 5G 4x4 Mimo Wall/pole mount antenna 5G, GSM 850, GSM 1800, GSM 1900, LTE 1800, LTE 2600, UM
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 3 Piece(s) available
Highlights & Details

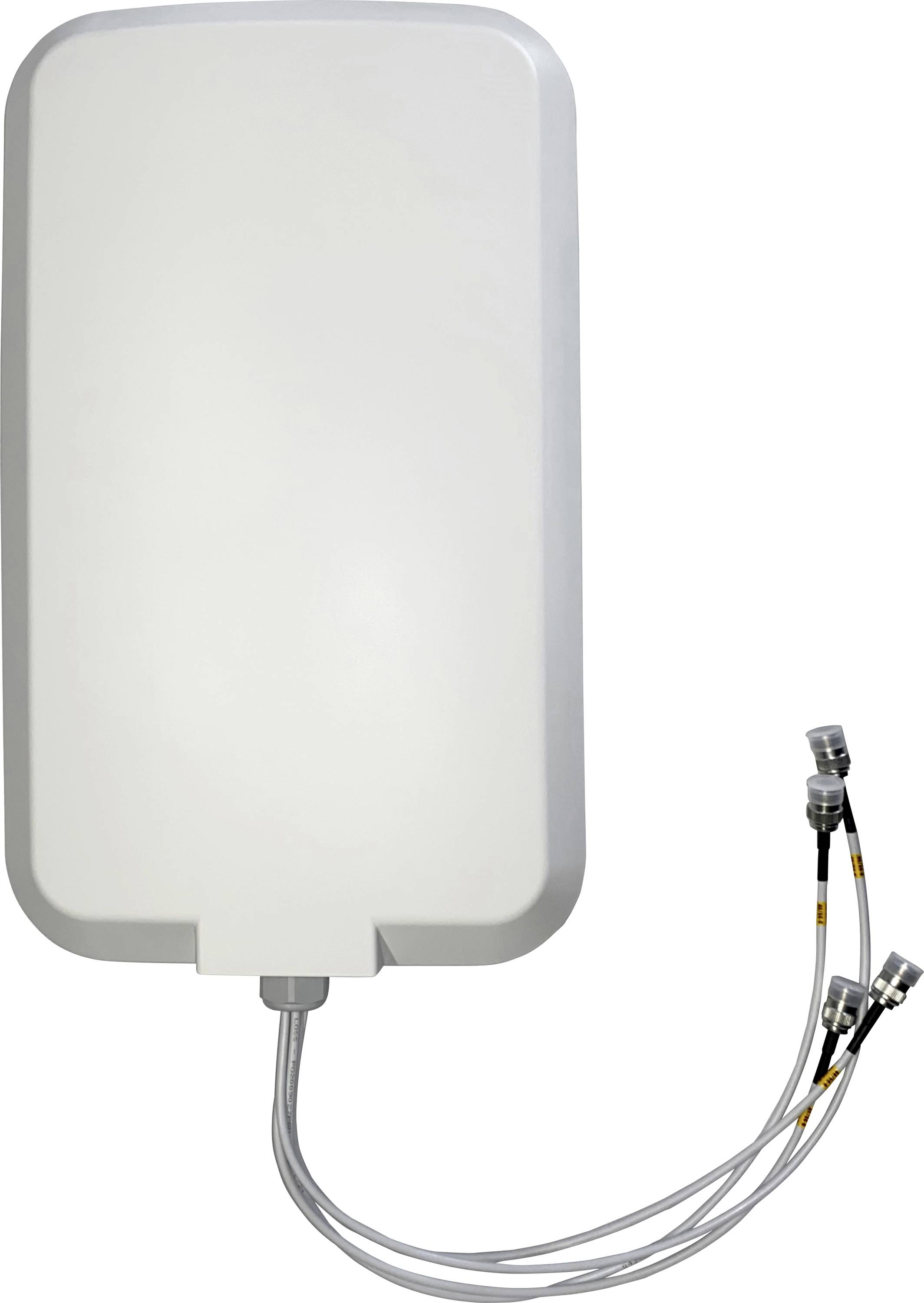

5 G Mimo directional antenna 4x4 with 4 x 0.5m cable with N-socket, mast and wall bracket
Technical specifications
- Product type
Mobile phone antenna
- Mobile phone standard
5G
GSM
LTE
UMTS
- Spotlight length
507
- Cable length
25 cm
- Connection
N-connection
- Factory colour
White
- Gain
6 dB
- Antenna type
Wall/pole mount antenna
- GSM frequency
700 MHz
750 MHz
800 MHz
850 MHz
900 MHz
- LTE frequency
1700 MHz
1800 MHz
1900 MHz
2000 MHz
2100 MHz
2300 MHz
2500 MHz
2600 MHz
3400 MHz
3500 MHz
Show more
- Suitable for mains
5G
GSM 850
GSM 1800
GSM 1900
LTE 1800
LTE 2600
UMTS
- Width
307 mm
- Height
85 mm
Documents & Downloads
Datasheet
Datasheet 3376402 Wittenberg Antennen LAT 4400 5G 4x4 Mimo Wall/pole mount antenna 5G, GSM 850, GSM 1800, GSM 1900, LTE 1800, LTE 2600, UM
User & Safety Instructions
User & Safety Instructions 3376402 Wittenberg Antennen LAT 4400 5G 4x4 Mimo Wall/pole mount antenna 5G, GSM 850, GSM 1800, GSM 1900, LTE 1800, LTE 2600, UM
Description
The LAT 4400 5G is a high-gain, 4-line 4-way MIMO antenna for 4G and 5G networks. It contains four pairs of broadband element assemblies in a single chassis and is designed to support fixed CAT18/20 client devices. It offers a peak amplification of 6 dBi for 617-960 MHz and a peak amplification of 9 dBi for 1710-6000 MHz. The weatherproof housing is designed for mounting on walls or masts with the fittings supplied.
This text is machine translated.
This text is machine translated.
Features
- Frequency range (MHz) 617-960/1710-6000
- Operating bands 4G/5GRadiation pattern direction
- Nominal polarization +/- 45 g / vertical
- Peak amplification 617-960 MHz 6 dBi (without cable loss) + 1710-6000 MHz 9 dBi
- Efficiency - without cable loss (all bands) > 60% correlation coefficient (all bands) < 0.2
- Maximum input power (W) 20 Watt
- OPERATING TEMPERATURE (°C) -40 ° / + 80 °C (-40 ° / 176 °F)
- Material ASA
- Colour white
- IP protection class IP66
- Material certifications UL94-HB, UL746C-f2
- Weight (g) 5400
- Wind speed (m/s) 55
- Typical wind load @ 45 m/s (N) 200
- Wall mounting / flush-mounted wall holder /
- Mast holder material
- Mounting bracket coated steel / aluminum / stainless steel
- Pole diameter (mm) 20-50 / (0.78 - 1.96"),
Scope of delivery
- LAT 4400 5G antenna
- User manual.
System requirements
- LTE router 4 inputs
