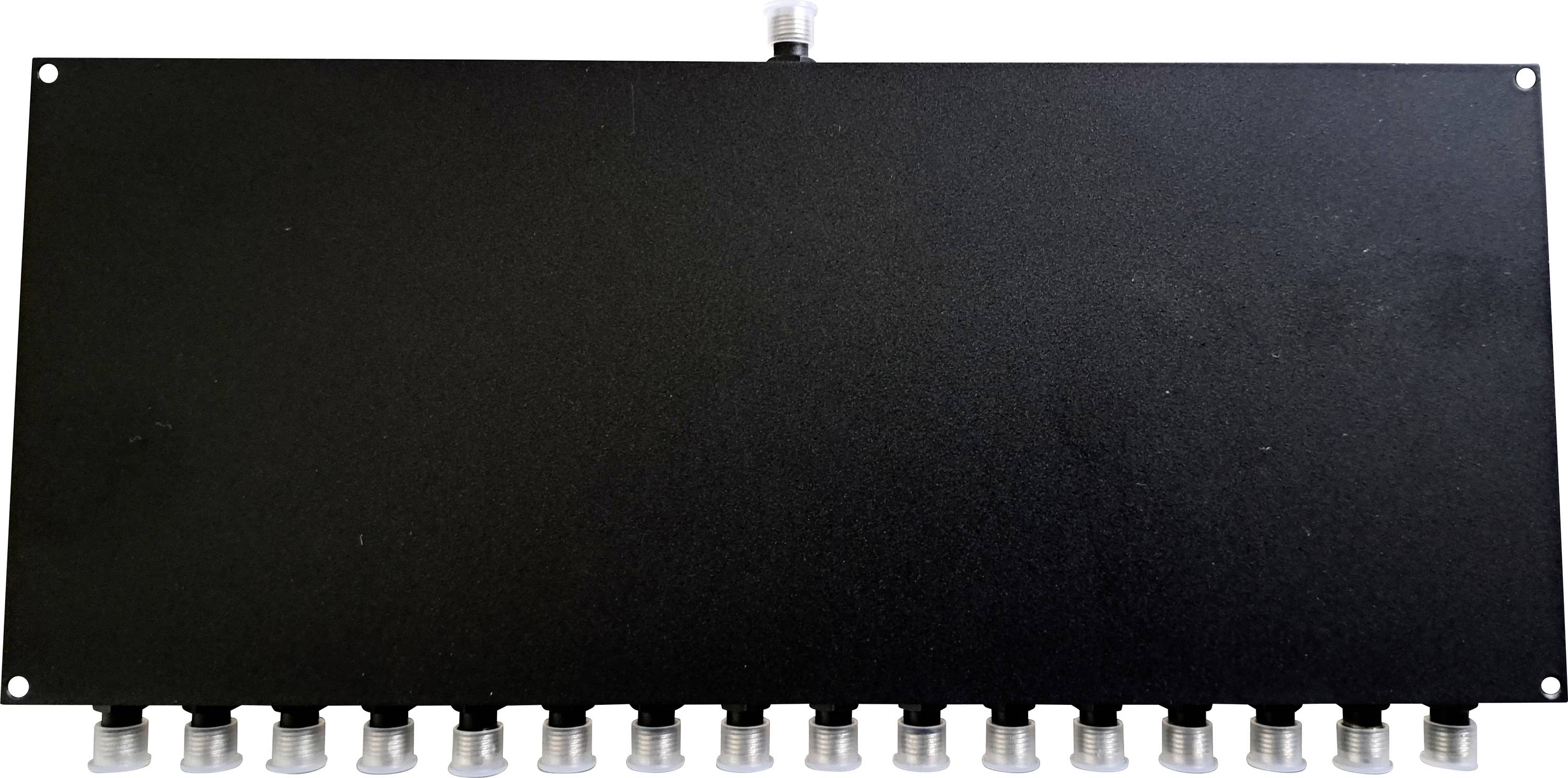

Wittenberg Antennen Signal splitter SMA socket Signalverteiler 16 fach SMA Buchsen , Frequenz 700-2700 MHz ,50 Ohm
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 368.91 / piece)
€ 368.91
plus VAT.
14-day return policy included
Highlights & Details
LTE 16-way signal distributor, SMA sockets, frequency 700-2700 MHz
- Signal distributor LTE 16-way
- SMA sockets
- Frequency 700-2700 MHz
- This text is machine translated.
Technical specifications
- Frequency range 700 - 2700 MHz
- Insertion loss <=2.5 dB (does not include the theoretical loss of 12 dB)
- Amplitude balance 0.5 dB
- Phase balance 5°
- VSWR 1.5:1
- Impedance: 50 ohm
- Insulation >= 18 dB
- SMA socket(f) connections
- Power rating 20 watts
- Operating temperature -40°C up to +70°C
- Size tolerance 0.5 mm
- Product type
Signal splitter
- Connections
SMA socket
- Factory colour
Black
- Connector version
straight
threaded
- Length
223 mm
93 mm
14 mm
Documents & Downloads
Datasheet
Datasheet 3376406 Wittenberg Antennen Signal splitter SMA socket Signalverteiler 16 fach SMA Buchsen , Frequenz 700-2700 MHz ,50 Ohm
User & Safety Instructions
User & Safety Instructions 3376406 Wittenberg Antennen Signal splitter SMA socket Signalverteiler 16 fach SMA Buchsen , Frequenz 700-2700 MHz ,50 Ohm
Description
System requirements
- Antenna with SMA plug as a connection
