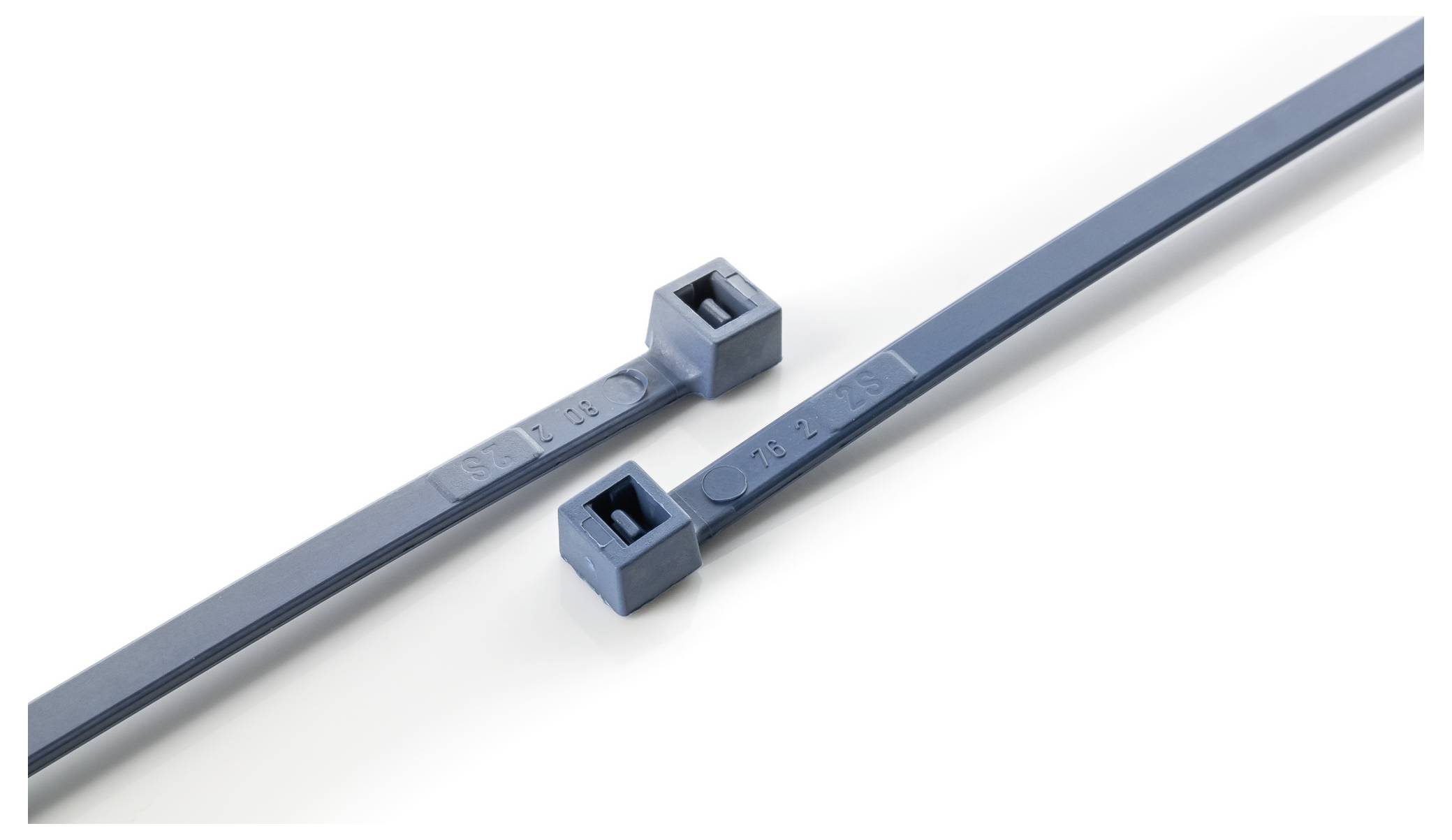

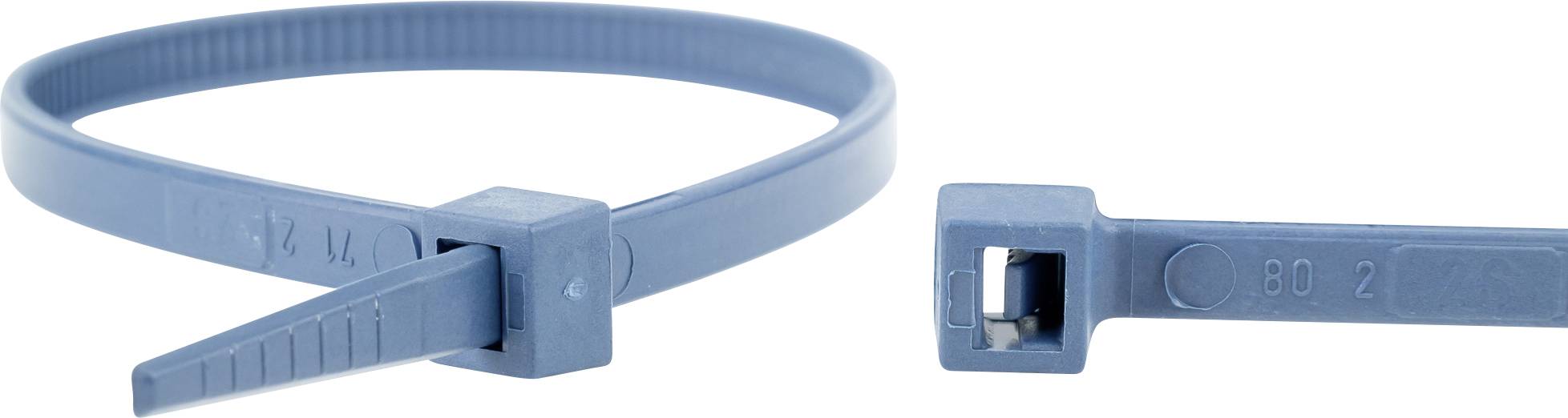

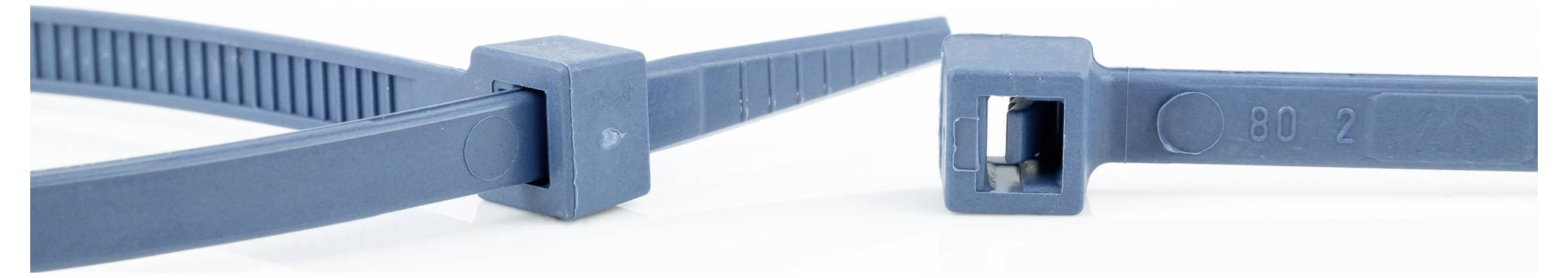

WKK 150196671 Cable tie 300 mm 4.80 mm Blue Detectable 100 pc(s)
EAN:
Part number:
Item no:
Product type
Cable tie
Content
100 pc(s)
Cable tie length
300 mm
Cable tie width
4.80 mm
Cable tie features
Detectable
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 100 pc(s))
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
14-day return policy included
Highlights & Details
WKK - Plastic cable ties with metal pigments - detectable
Our service for you
Technical specifications
- Traction power: 22.2 kg
- Product type
Cable tie
- Content
100 pc(s)
- Factory colour
Blue
- Cable tie length
300 mm
- Cable tie width
4.80 mm
- Cable tie features
Detectable
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Halogen-free
Yes
- Material
PA 6.6
- Max. bundle diameter
76 mm
- Manufacturer part #
150196671
- RoHS-compliant
Yes
- Type
150196671
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3335366 WKK 150196671 Cable tie 300 mm 4.80 mm Blue Detectable 100 pc(s)
Description
Detectable cable ties are often used to easily detect contamination from broken cable ties with a detection device. They are therefore very well suited for use in the food, pharmaceutical, animal feed and chemical industries. Detectable cable ties consist of a material mix of polyamide 6.6 and the highest possible concentration of uniformly distributed metal pigments, making even the smallest part of such cable ties detectable. In addition, detectable cable ties are characterized by their blue color and thus enable an easy visual detection. These detectable cable ties are available in 5 different lengths and resistant to temperatures of up to +85 °C.
This text is machine translated.
This text is machine translated.
Features
- Polyamide is a hygroscopic plastic
- This means that the material absorbs water, but can also release it again
- For optimum cable tie processing, it is important that the material is in a balanced state with a water content of approx. 2.5%
- Always store the cable ties in the closed plastic bag
- After opening, you should process the Binder quickly
- Heat (from +50 °C) and cold (from -3 °C) lead to a hardening of the cable ties (water content is lost)
- Result: Tongue cracks - head breaks, cable ties breaks
- After processing and tightening the cable ties there are no these problems
- The ideal storage conditions are +23 °C and 50% relative humidity
- Storage period should not exceed 12 months, loss of moisture
- Always store only so much cable ties at work that can be processed within 8 hours
- If the temperature is minus, it should not remain in the cold for overnight periods
- If the cable ties are stored overnight or longer in the bag at minus points, they must be stored for at least once more for storage. 24 hours at room temperature
- 99% of all problems are caused by incorrect storage
- Tolerance range for water content is 2.5% - 4.5%, so the required minimum Tensile strength
- Clips are made of impact-resistant polyamide and therefore do not depend on the water content
Scope of delivery
- 100 cable binder per VPE
