Wöhner Fuse power disconnect switch 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Fuse power disconnect switch
Mounting type
Busbar
Number of pins
3
Connection
Clamp
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Fuse power disconnect switch
- Mounting type
Busbar
- Number of pins
3
- Connection
Clamp
- Content
1 pc(s)
- Type
33075
- Connection type
Frame clamp
Top/bottom
160 A
3
IP30
NH000, NH00
FALSE
Frame clamp
FALSE
Cover grip
TRUE
FALSE
5 kA
FALSE
690 V
FALSE
FALSE
Front side
FALSE
Documents & Downloads
Datasheet
Datasheet 3815450 Wöhner Fuse power disconnect switch 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3815450 Wöhner Fuse power disconnect switch 1 pc(s) Piece
Description

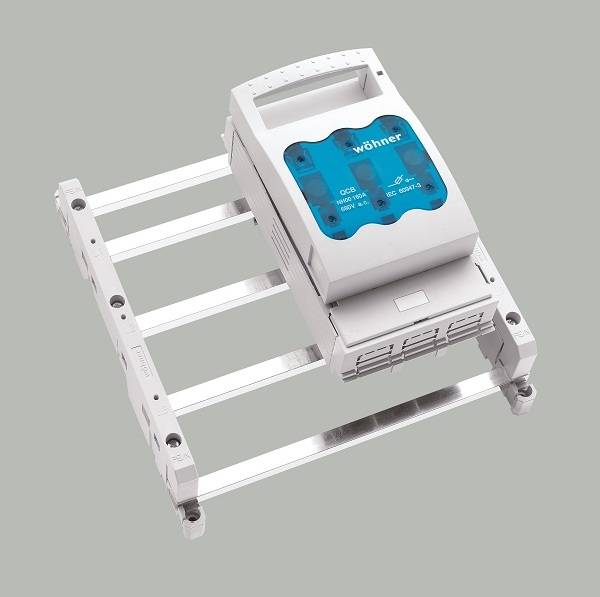

The QUADRON®60Classic is a versatile 00 size NH fuse switch disconnectors rated at 160 A. This rugged device is designed specifically for 5-pole systems and offers high flexibility in installation. It has a frame clamp for secure connections and allows the connection either from top or bottom, WAS ensures optimum adaptation to different installation situation12. A particular advantage of the QUADRON®60Classic lies in its compatibility with a wide range of busbar and rail types. It can be used with busbars of the dimensions 12, 15, 20, 25 and 30 x 5 and 10 mm, WAS opens a large range of applications in various electric installations 2. This versatility makes the switch an ideal solution for various applications in the industry and trade, where reliability and flexibility are required.
