Wolfcraft 4642000 4642000 Undercover jig set 0 cm 0 cm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 5 Piece(s) available
Technical specifications
- (Ø)
0 cm
- Product type
Undercover jig set
- Length
0 cm
- Suitable for
Timber
- Content
1 pc(s)
- Features
incl. screw
- Width
0 cm
- Height
0 cm
- Weight
0.75 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1856563 Wolfcraft 4642000 4642000 Undercover jig set 0 cm 0 cm 1 pc(s)
Description
The Undercover-Jig-Set for hidden wood connections in the variant for cross-head screws (Pozidriv). Heart of this set is of the Undercover-Jig, a drilling template for pocket holes. With it, you can master corner, T and surface connection with invisible gland in just three steps. The board can be connected directly to the hole gauge measurement and then the appropriate practical pre-settings. Thereby you can save a further step. Also included in the set are a special drill bit, a depth stop, a hexagon wrench, Phillips screws (Pozidriv) with a suitable screwdriver blade (Pozidriv PZ2) and screw hole covers.
This text is machine translated.
This text is machine translated.
Features
- Adjustable stop pre-set
- For all common board thickness (from 12 mm)
- Measure the board thickness directly on the device
- Corner, T and surface connection with invisible gland
- With Phillips screws (Pozidriv) and screwdriver blade Pozidriv PZ 2.

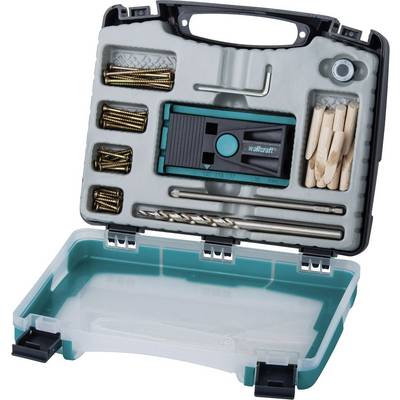

Scope of delivery
- 1 Undercover Jig
- 1 Step Drill Bit HSS, Ø 9.5 x 180 mm
- 1 depth stop diameter 9.5 mm.
- 1 hexagonal wrench SW 3
- 1 Pozidriv Screwdriver blade PZ 2, 150 mm long
- 10 Screw Hole covers beech wood
- Each 10 Phillips-head screws (Pozidriv) 4 x 25 mm, 4 x 30 mm, 4 x 40 mm, 4 x 60 mm.
