Wolfcraft 4665000 Dowel set 15 mm 1 Set
EAN:
Part number:
Item no:
Highlights & Details
1 excenter furniture connector set
- Simply produce self-detachable surface, corner and T-connections as well as series hole holes
- Step-by-step instructions and video tutorial
- Including consumables for a furniture body
Technical specifications
- Clamping width/wood thickness: Starting from 18 mm
- Dowel length / drilling distance 34 mm
- (Ø)
15 mm
- Product type
Dowel set
- Material
Zinc (die-cast)
Steel
Plastic
- Dim
(Ø) 15 mm
- Suitable for
Timber
Timber boards
Timber board materials
MDF boards
Chipboard
- Content
1 Set
- Features
incl. covers
- Material properties
zinc plated
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3805246 Wolfcraft 4665000 Dowel set 15 mm 1 Set
Description

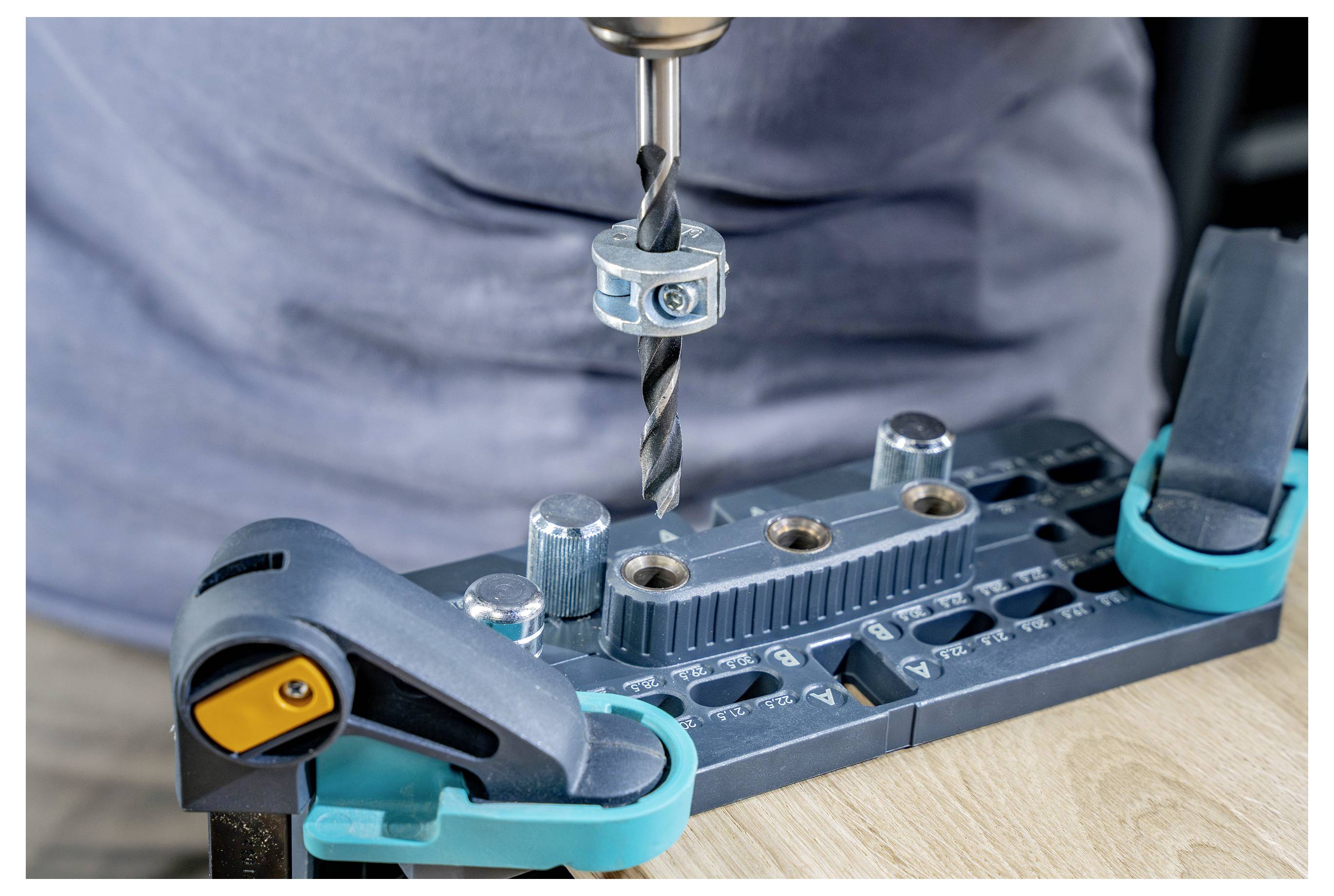

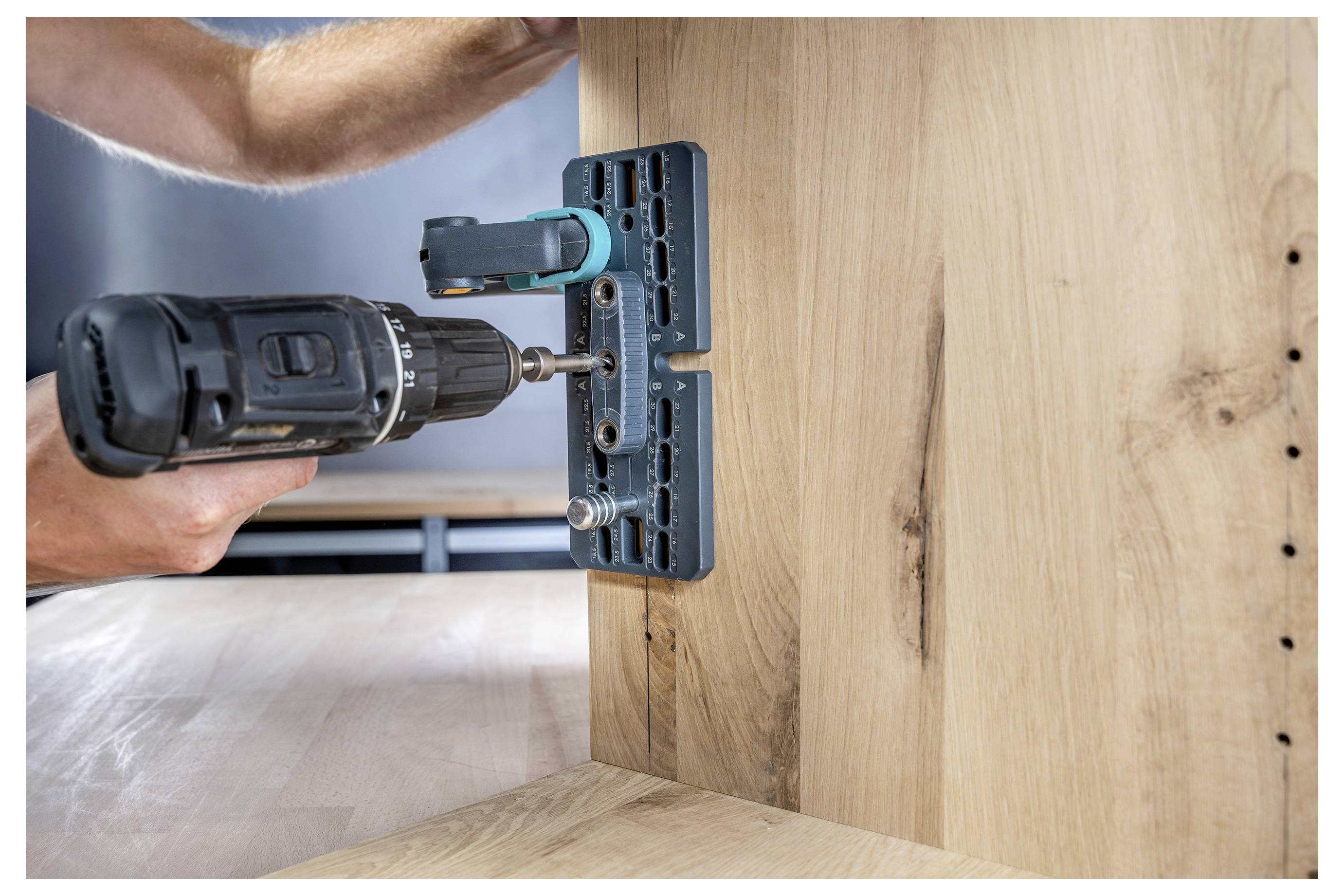

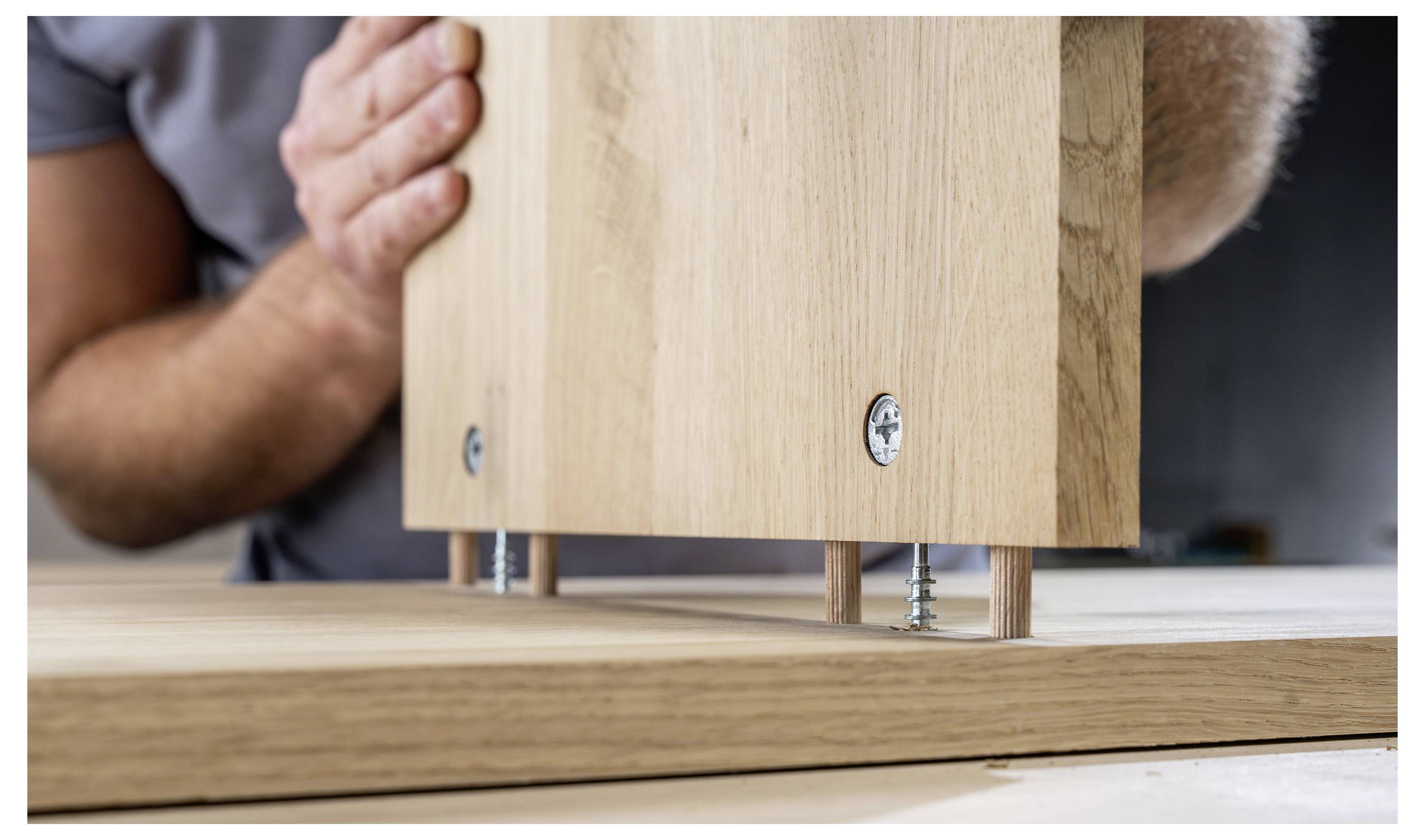

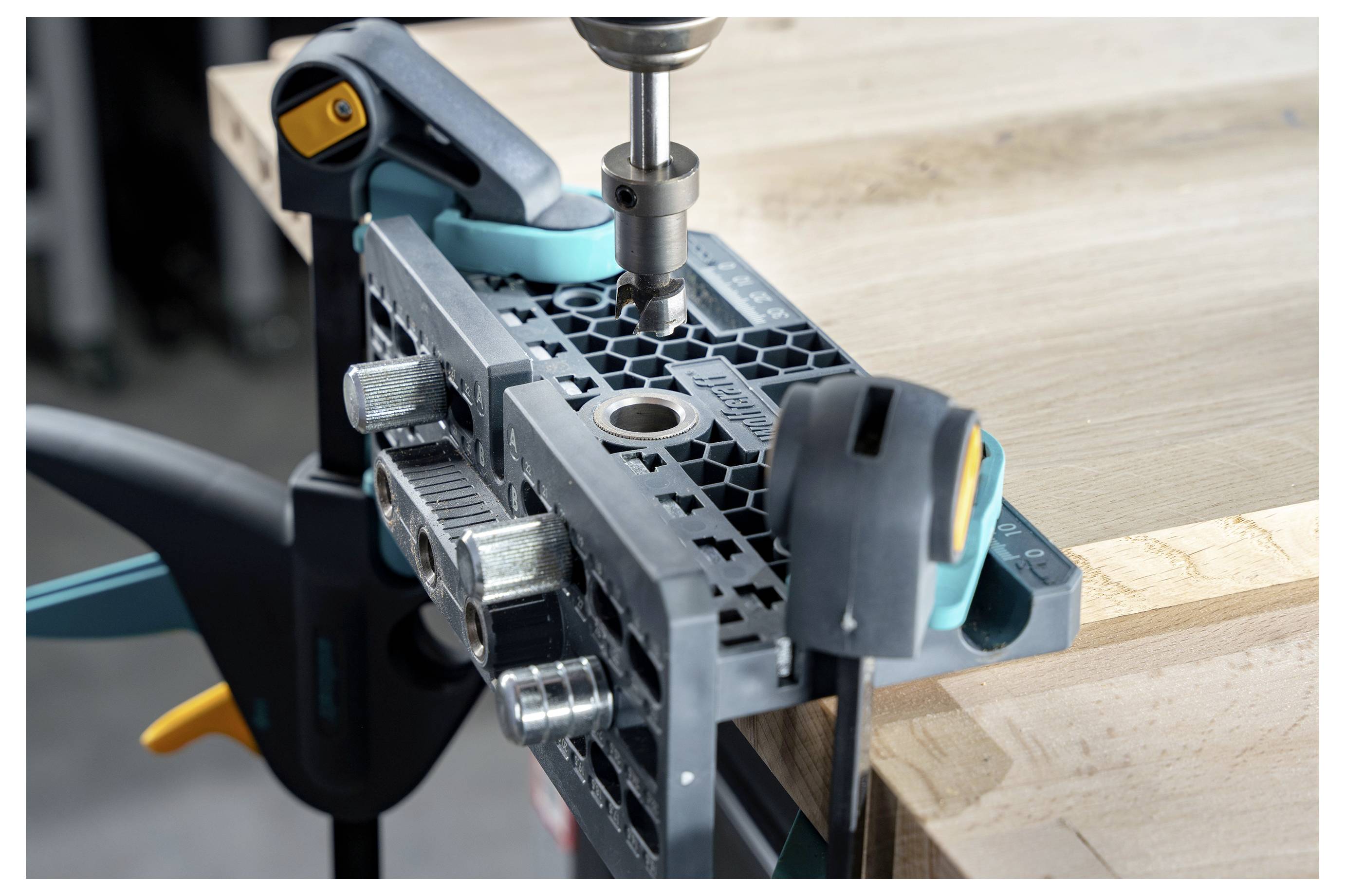

With the eccentric furniture connector set screwable surface, corner and T-connections as well as serial hole for furniture in self-building. In contrast to glued furniture, these can be dismantled at any time and screwed-in dowel, outer disc and wooden dowel are manufactured again. Use the two-part drilling template to set the correct hole positions and drill depths, then attach the drill bits with a depth stop to the appropriate furniture elements to be connected. The drill template also offers a hole pattern with a standard distance of 32 mm, with which rows of holes can be produced, for example for shelves.
All consumables are also available separately from Wolfcraft (article no. 2955000).
This text is machine translated.
All consumables are also available separately from Wolfcraft (article no. 2955000).
This text is machine translated.

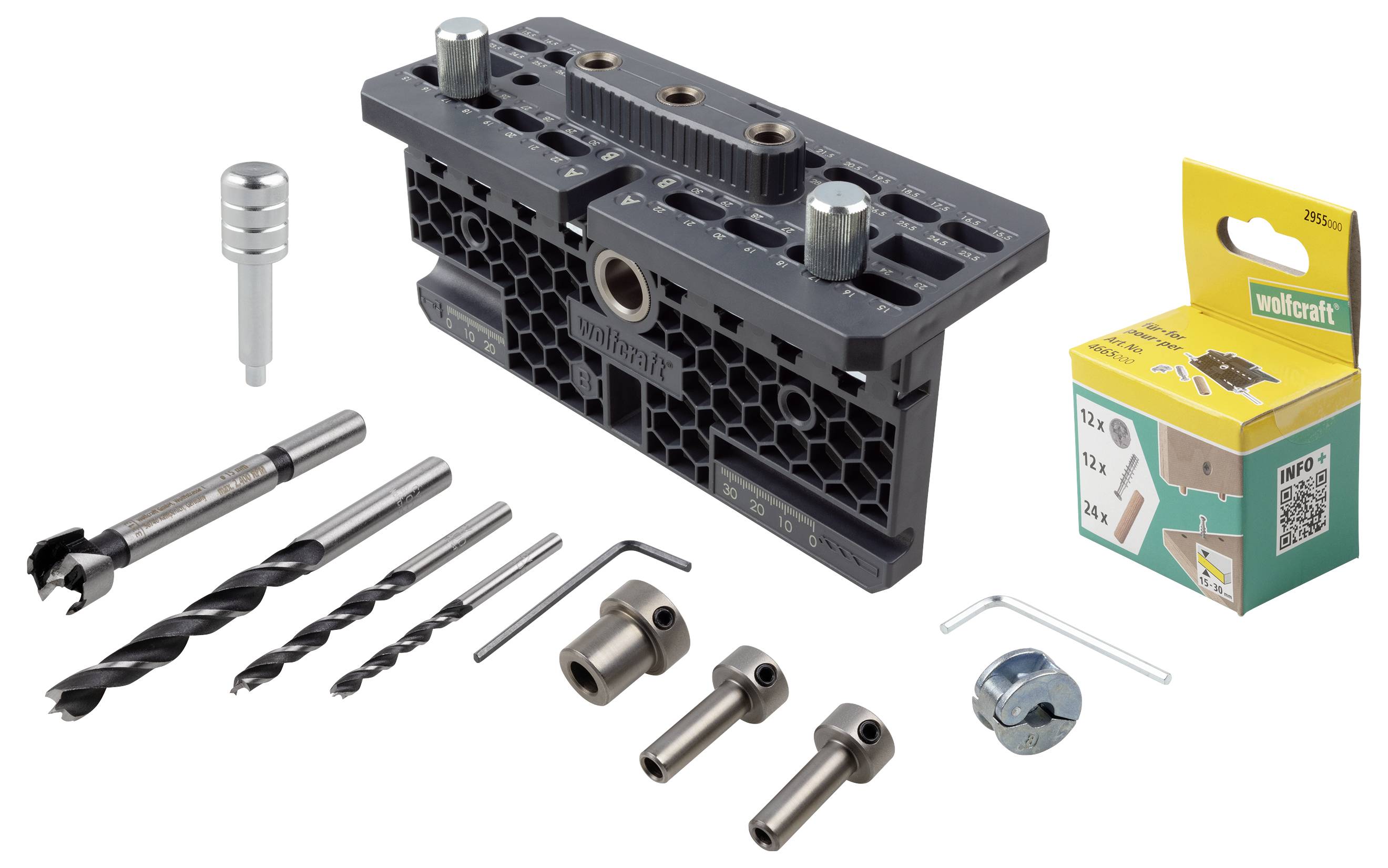

Scope of delivery

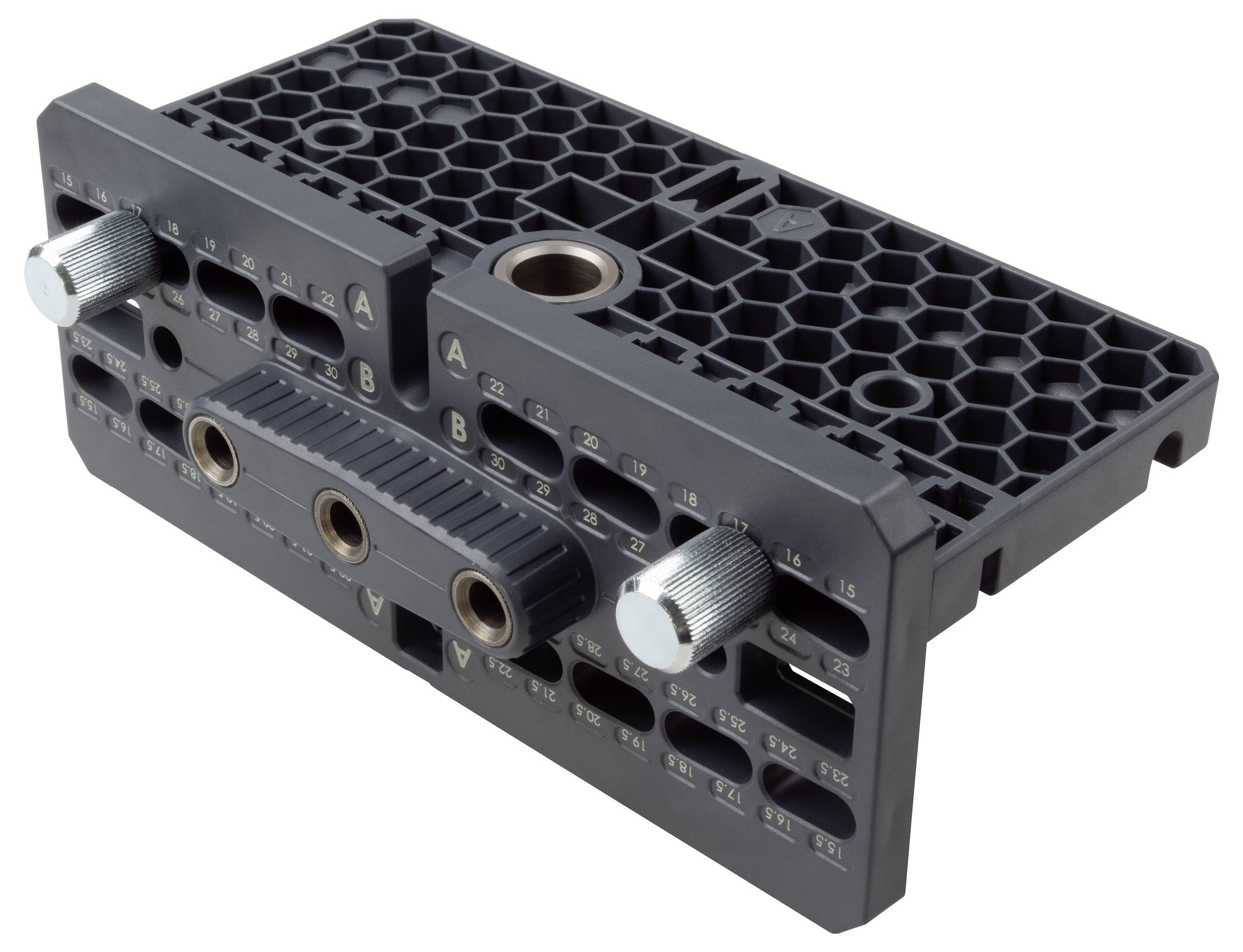

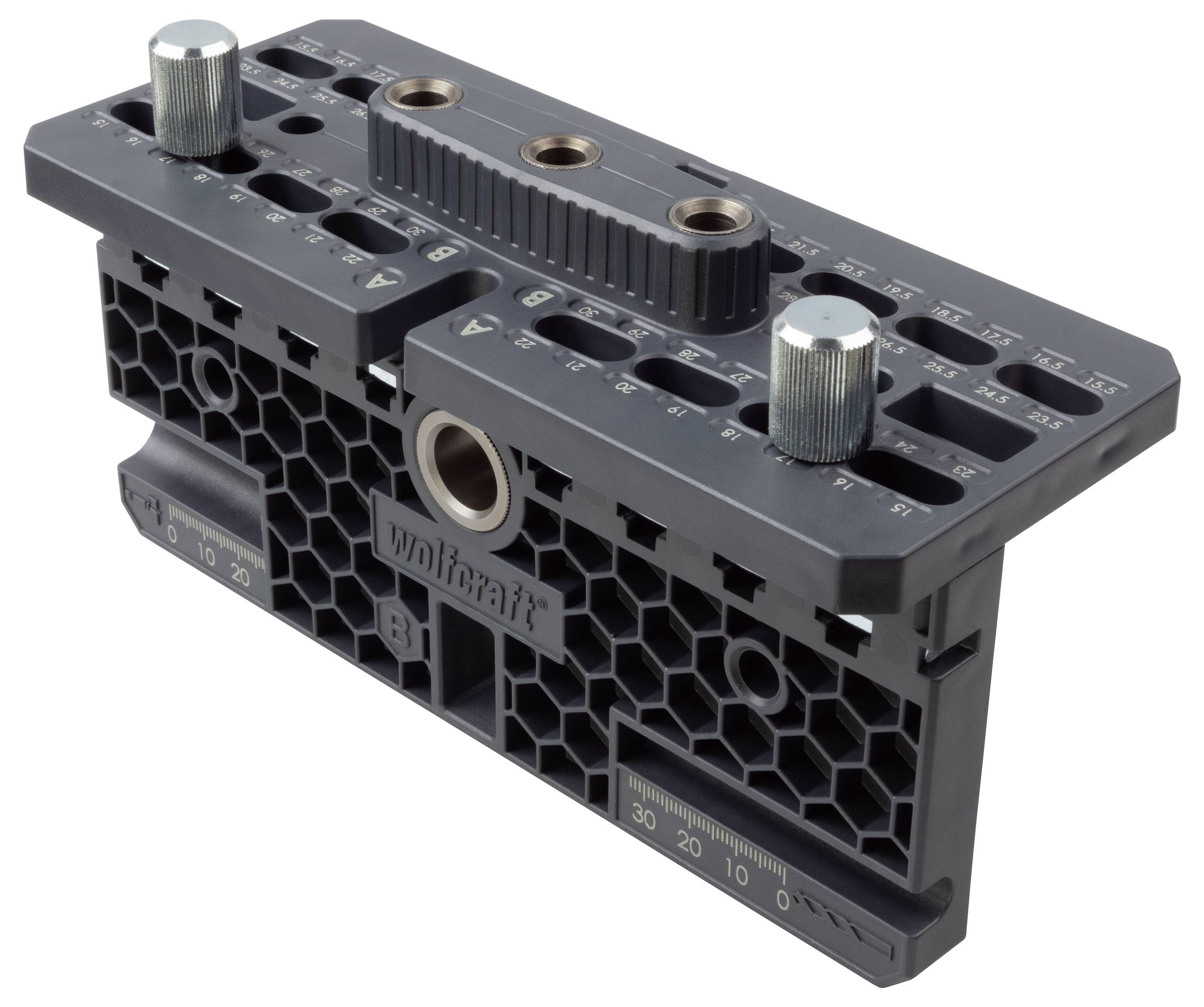

- 1 drilling template, 2-piece. (Including two knurled screws and a stop pin). Ideal excenter furniture connections are suitable for the construction of cabinets, shelves, drawers, drawers, tables, Chairs and other individual furniture. Moreover, the set can also be used for repairing damaged eccentric and dowel joints. An illustrated step-by-step guide and a video tutorial will guide you safely through the project.

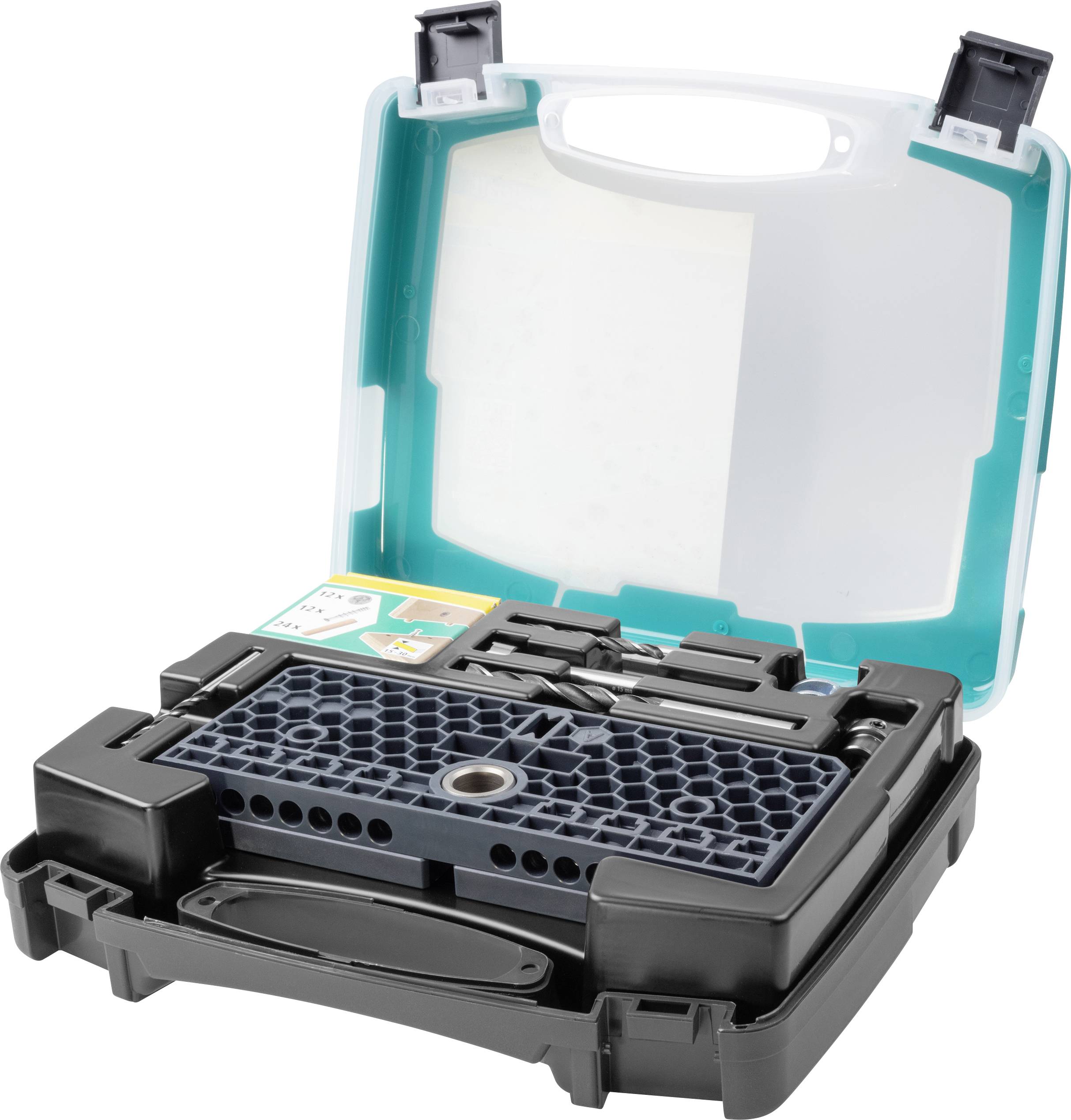

- The practical case contains the two-piece drill template made of high-quality plastic and all the necessary drills with a depth stop for depth-limited drilling. Moreover, the set also includes sufficient amount of furniture joints and plugs for a body of furniture.
- The connections between the wooden elements are increased

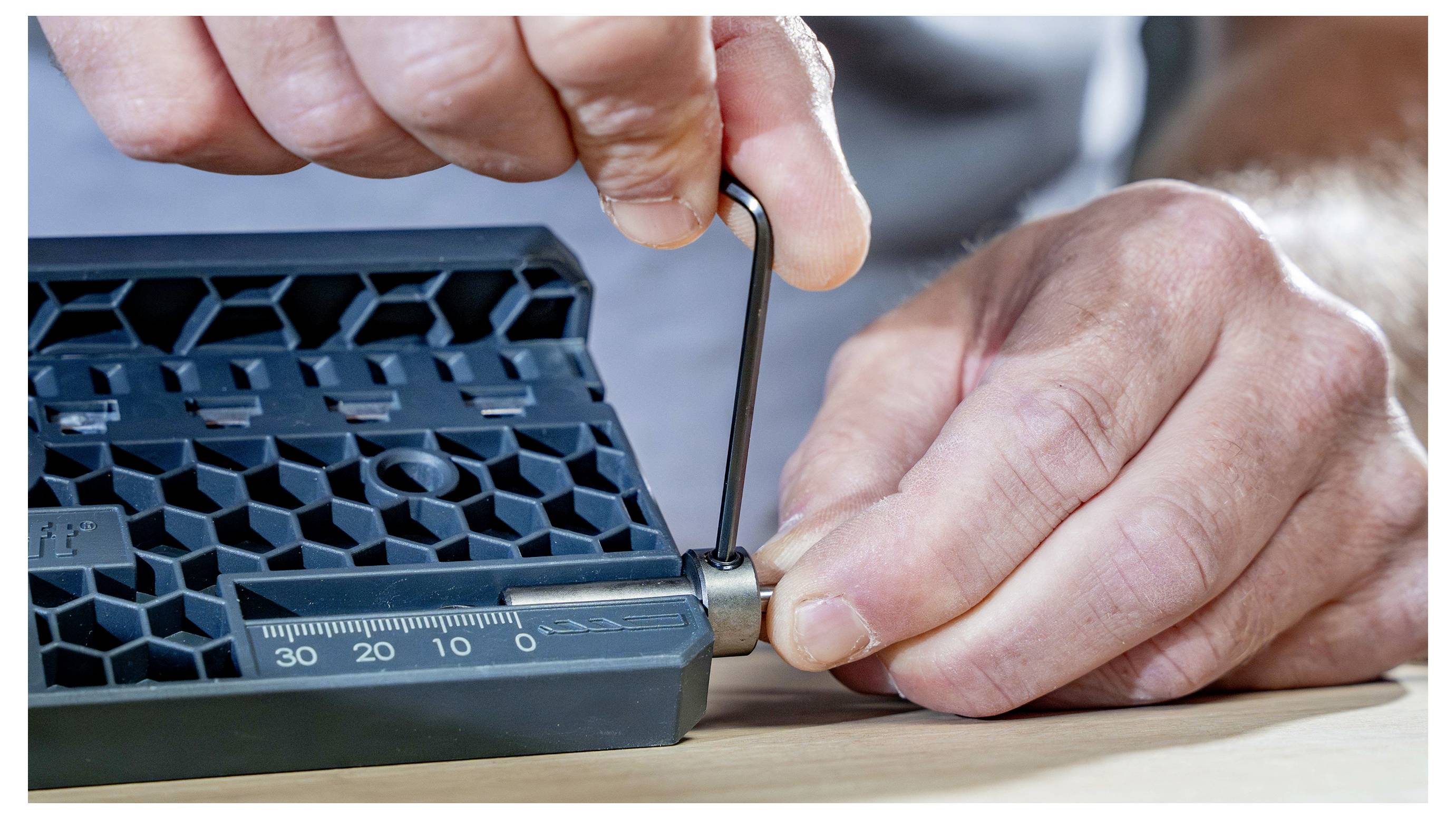

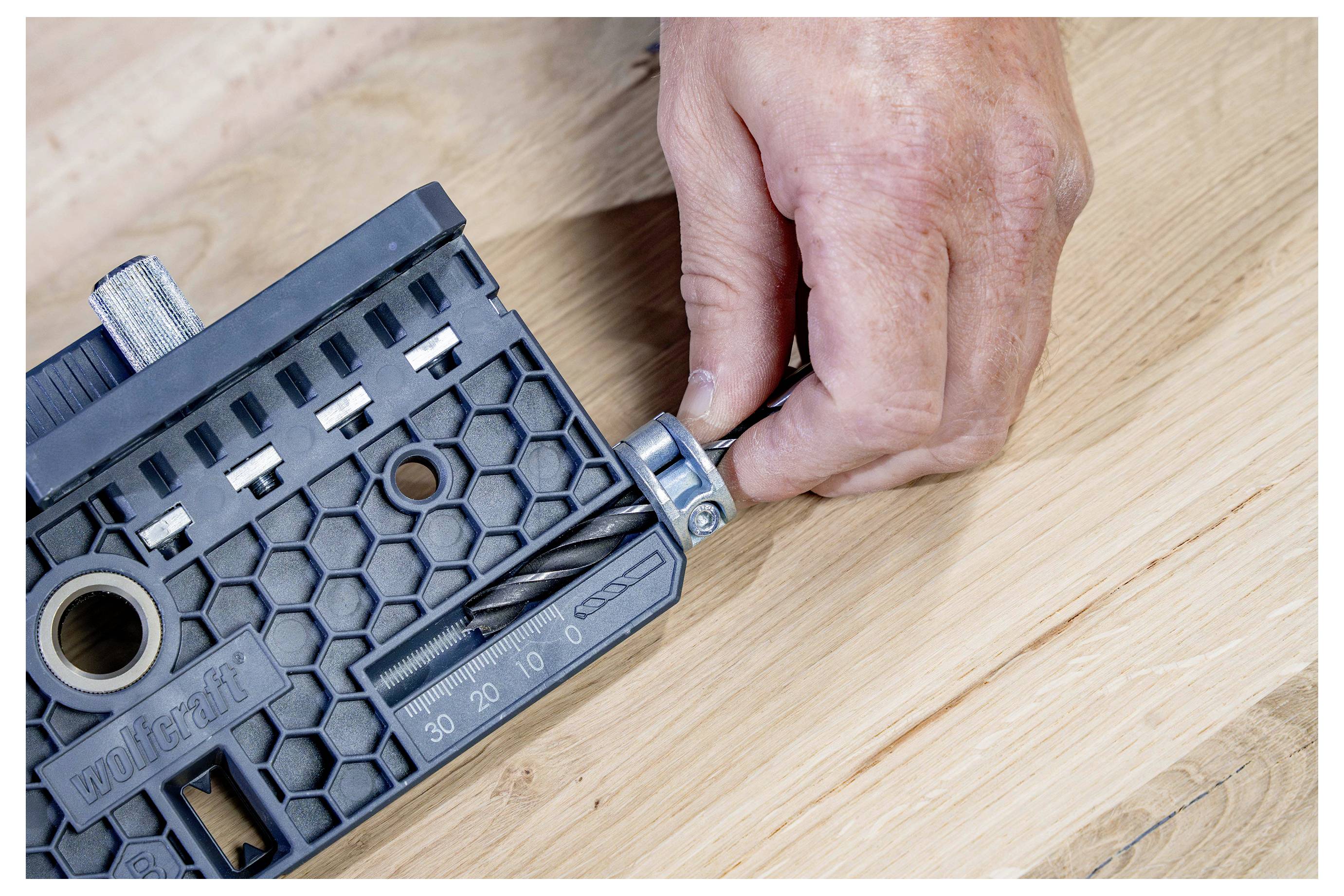

- 1 wood twist drill bits Ø 4 mm with depth stop sleeve
- 1 wood twist drill bits Ø 5 mm with depth stop sleeve
- 1 wood twist drills Ø 8 mm with depth stop
- 1 Forstner bits Ø 15 mm with depth stop sleeve
- 12 screw-in dowels
- 12 eccentric connecting attachments Ø 15 mm
- 24 wood plugs Ø 8 mm
