Wolfcraft Drill stand Operating height (max.): 295 mm (L x W x H) 265 x 150 x 295 mm
EAN:
Part number:
Item no:
Highlights & Details
1 drill stand SOLID
- Euronorm box for mains-powered drill machines with a diameter of 43 mm
- 112 mm Extension and 55 mm Stroke
- Ø 25 mm round column
Technical specifications
- Swivelling: +/- 45°
- With connector for dust extraction
- With depth stop and integrated V-groove for round materials
- Product type
Drill stand
- Operating height (max.)
295 mm
- Collar Ø
43 mm
- Nosing
125 mm
- Stand area
265 x 150 mm
- Length
265 mm
- Width
150 mm
- Height
295 mm
- Weight
1.6 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3805247 Wolfcraft Drill stand Operating height (max.): 295 mm (L x W x H) 265 x 150 x 295 mm
Description

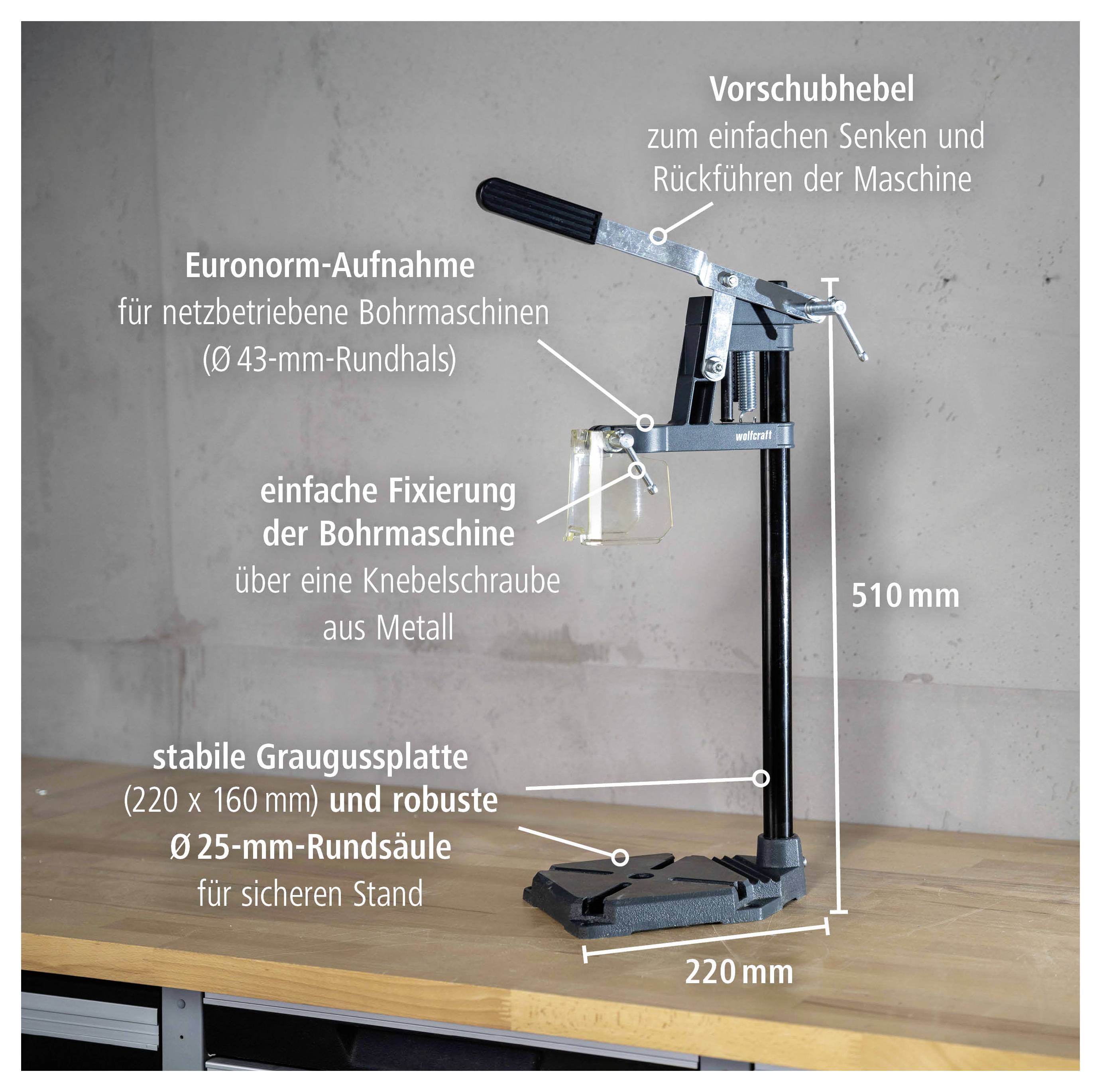

The SOLID drill stand is a compact, simple solution for controlled and depth-limited drilling with 112 mm extension and up to 55 mm stroke. Through its Euro-standard mounting it is compatible with all the conventional drill machines with Ø 43-mm-round neck.
Its stable cast iron plate and the robust Ø 25 mm round column guarantee safe working conditions, while the single arm feed lever and a return spring ensure easy lowering and return of the machine.

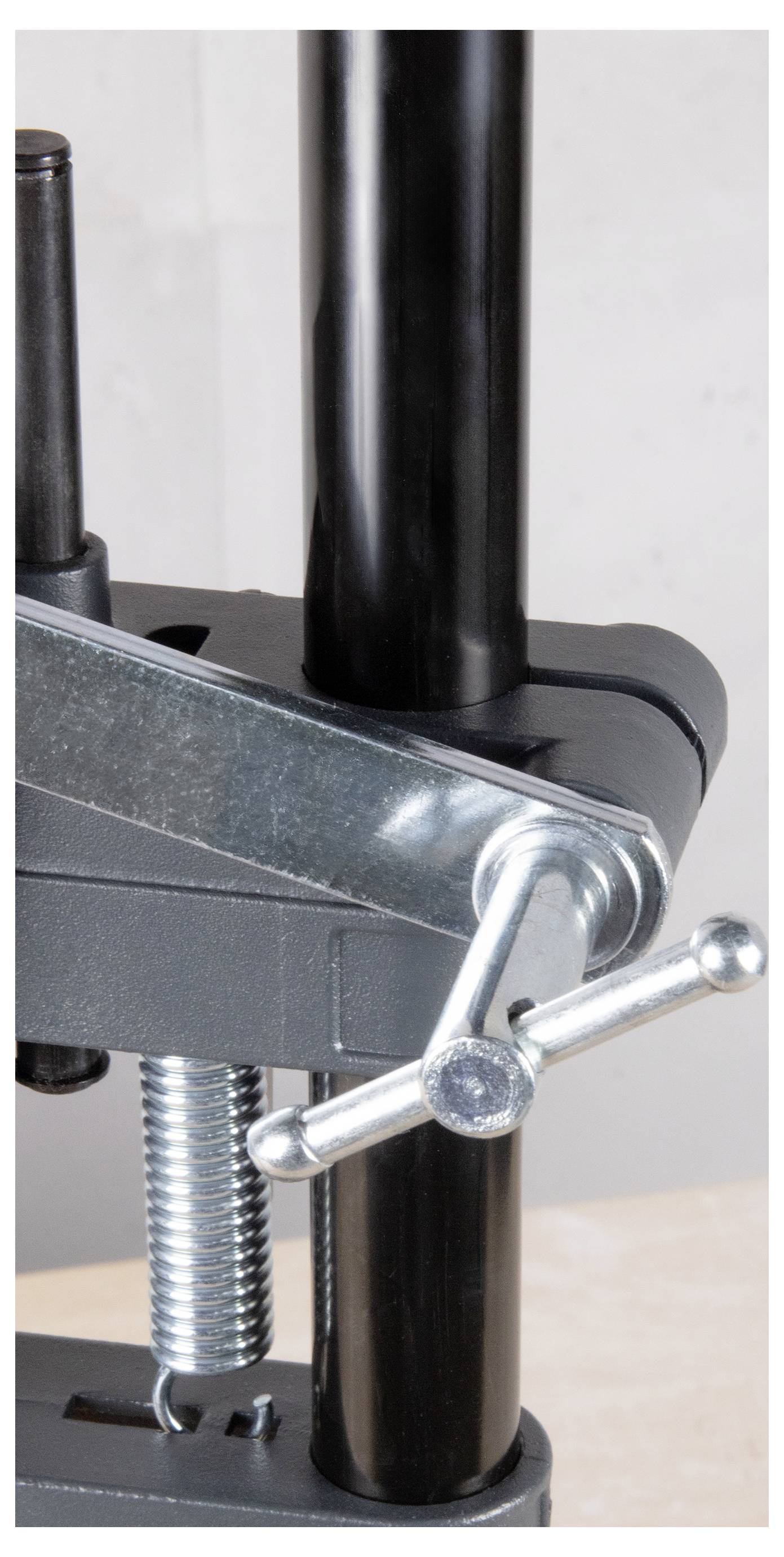

The depth stop with integrated millimeter scale and the height of the upper part can be adjusted comfortably without tools.

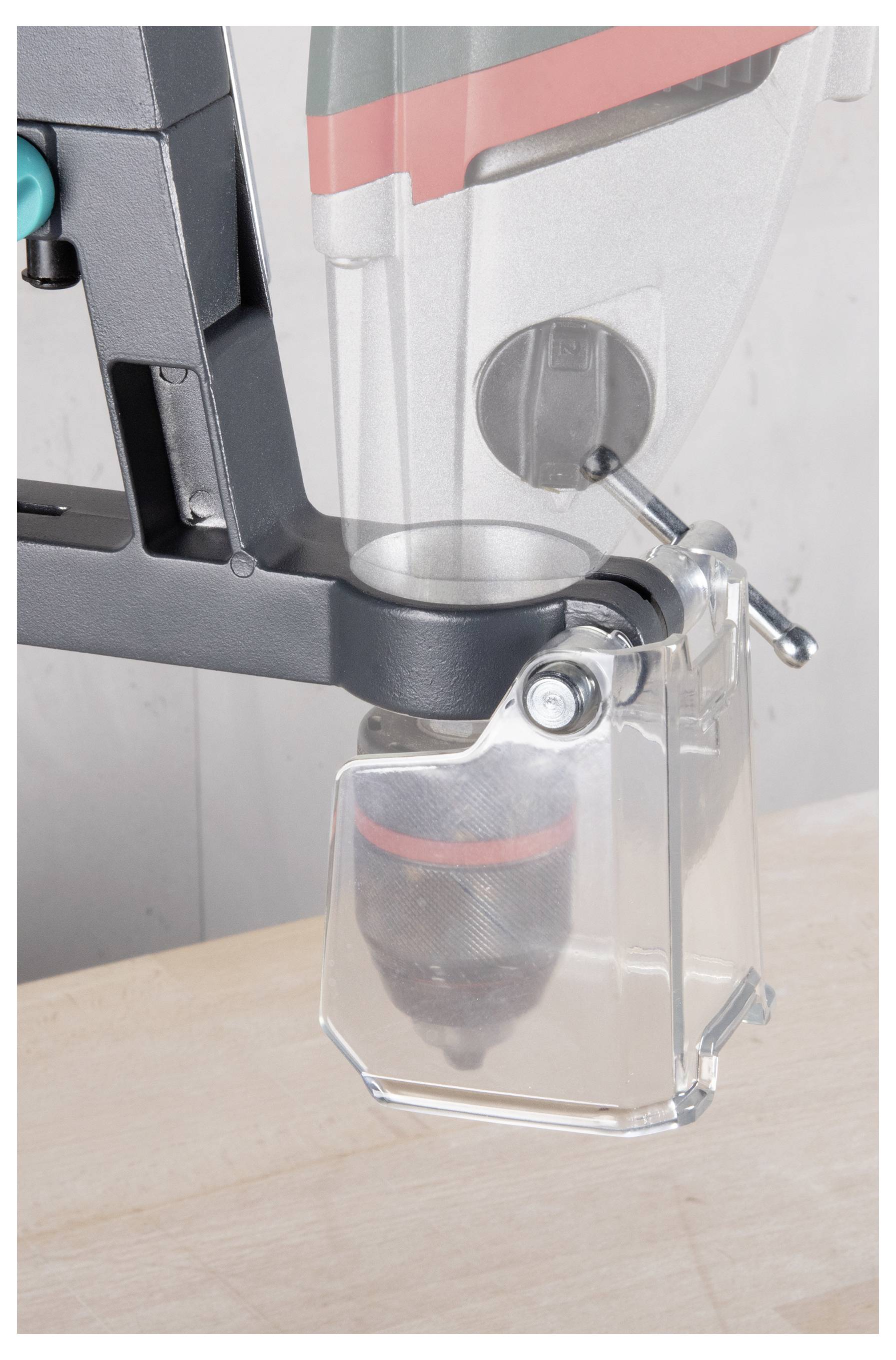

The drill chuck protection and integrated cable holder ensure safe operation.
This text is machine translated.
Its stable cast iron plate and the robust Ø 25 mm round column guarantee safe working conditions, while the single arm feed lever and a return spring ensure easy lowering and return of the machine.
The depth stop with integrated millimeter scale and the height of the upper part can be adjusted comfortably without tools.
The drill chuck protection and integrated cable holder ensure safe operation.
This text is machine translated.
Scope of delivery
- 1 drill stand SOLID
Hints
Mounting material not included (screws for Wolfcraft screw sticks on Wolfcraft drill stand: M8 x 25, screws for drill stand on a base: Max. M6).
