Xavax 00110970 Oven Cable White 1.5 m
EAN:
Part number:
Item no:
Highlights & Details
Xavax 110970 1.5 m

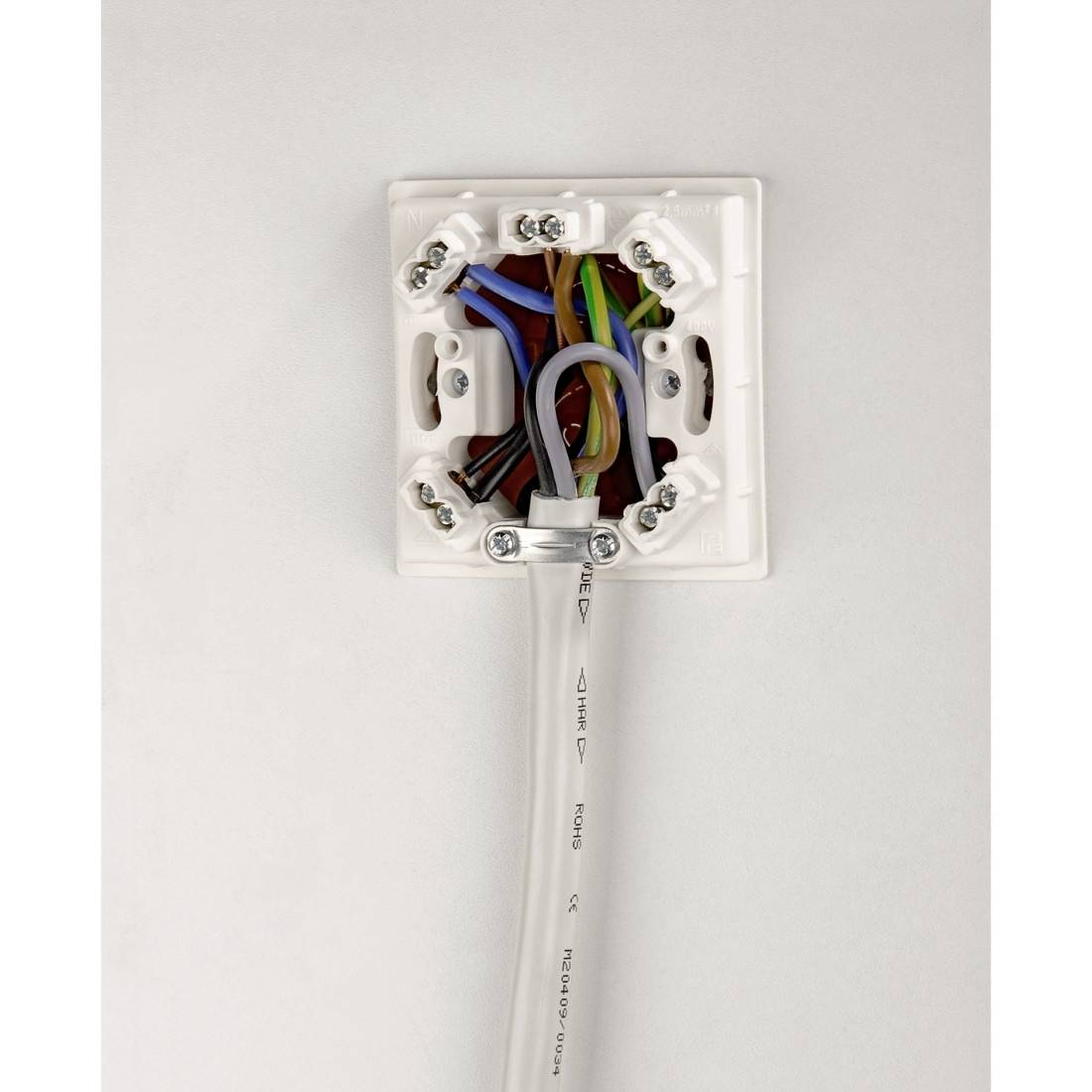

- Connection cable for connection to the cooker junction box
- Ready made connection cable
- Open ends with wire-end sleeves
- Cable: H05VV-F 5 x 2.5mm2
Technical specifications
- Product type
Oven Cable
- Cable use
Oven
- Version
Cable
- Type A
Open cable ends
- Type B
Open cable ends
- Cable length
1.5 m
- Cable standard
H05VV-F 5G 2,5 mm²
- Factory colour
White
- Nominal voltage (details)
230 V
- Package weight
414 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820360 Xavax 00110970 Oven Cable White 1.5 m
Description
Connection cable for connection to the cooker junction box. Prefabricated connection cable. Open ends with wire-end sleeves. Cable: H05VV-F 5 x 2.5mm2 Consumer Notice:. Only suitable for medium mechanical stress in homes, kitchens and offices; also in damp rooms (e.g. permanently connected washing machines and refrigerators). Suitable for cooking and heating equipment, provided the cable does not come into contact with hot parts or is exposed to heat radiation. Not suitable for continuous use outdoors, in commercial or agricultural buildings, or for connecting commercial power tools. Temperature range: -40°C to +70°C (fixed installation); -5°C to +70°C (moving). Max. Safety with 3x 16A B (ALT:L) automatic fuses
This text is machine translated.
This text is machine translated.
Features
- Colour: White, color: White, connection: Open, cable type: H05VV-F, number of wires: 5, Max. Temperature: 70 °C, core cross-section: 2.5 mm², cable length: 1.5 m, intended use: Electric stove, exception price inquiry calendar: Price inquiry - Group 3
Scope of delivery
- 1 Electric stove supply
