Name: XCell 12.8-6 Non-standard battery (rechargeable) LiFePo PP3 Blade terminal LiFePO4 12.8 V 6000 mAh 1 pc(s)
Brand: XCell
SKU: 2300608

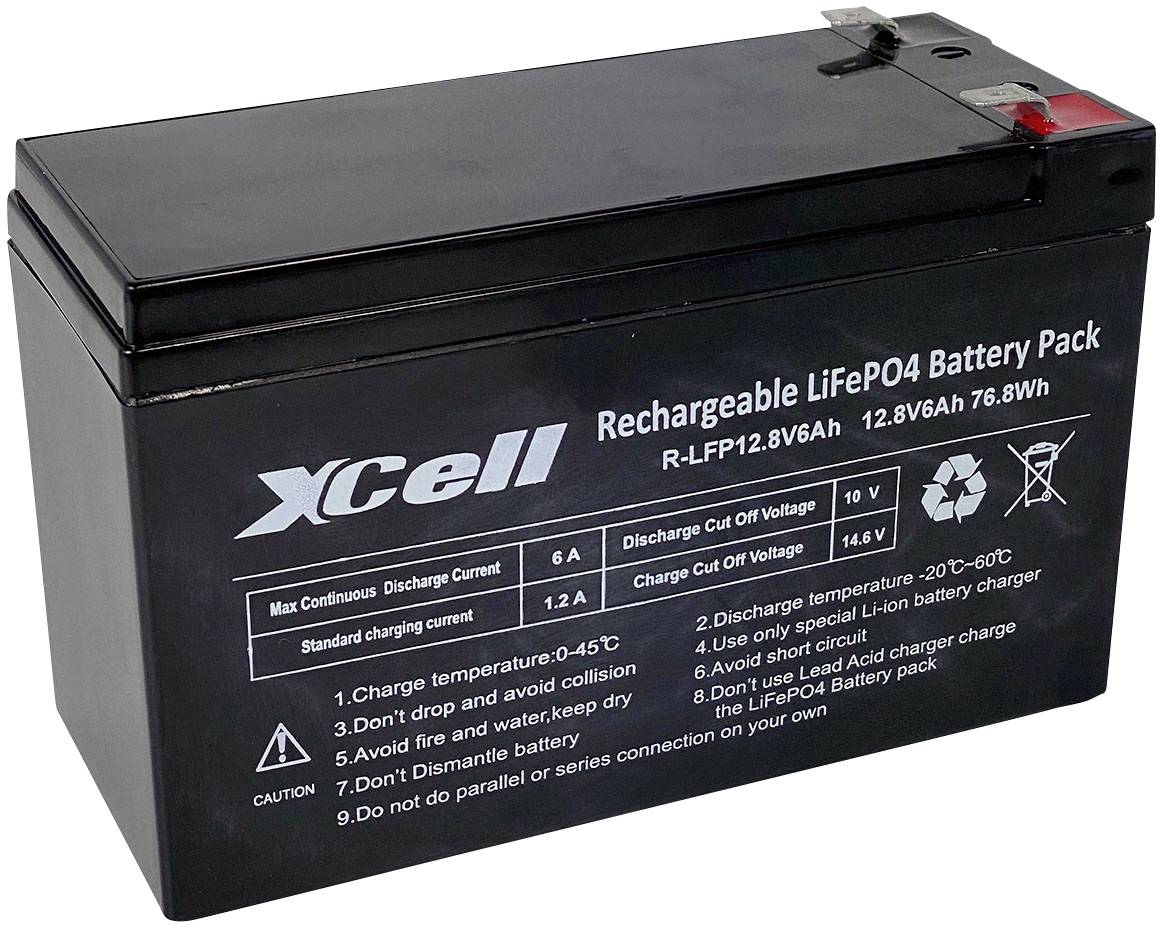

Black LiFePO4 battery with white text: 'XCell, Rechargeable LiFePO4 Battery Pack', displaying technical specifications and warnings.

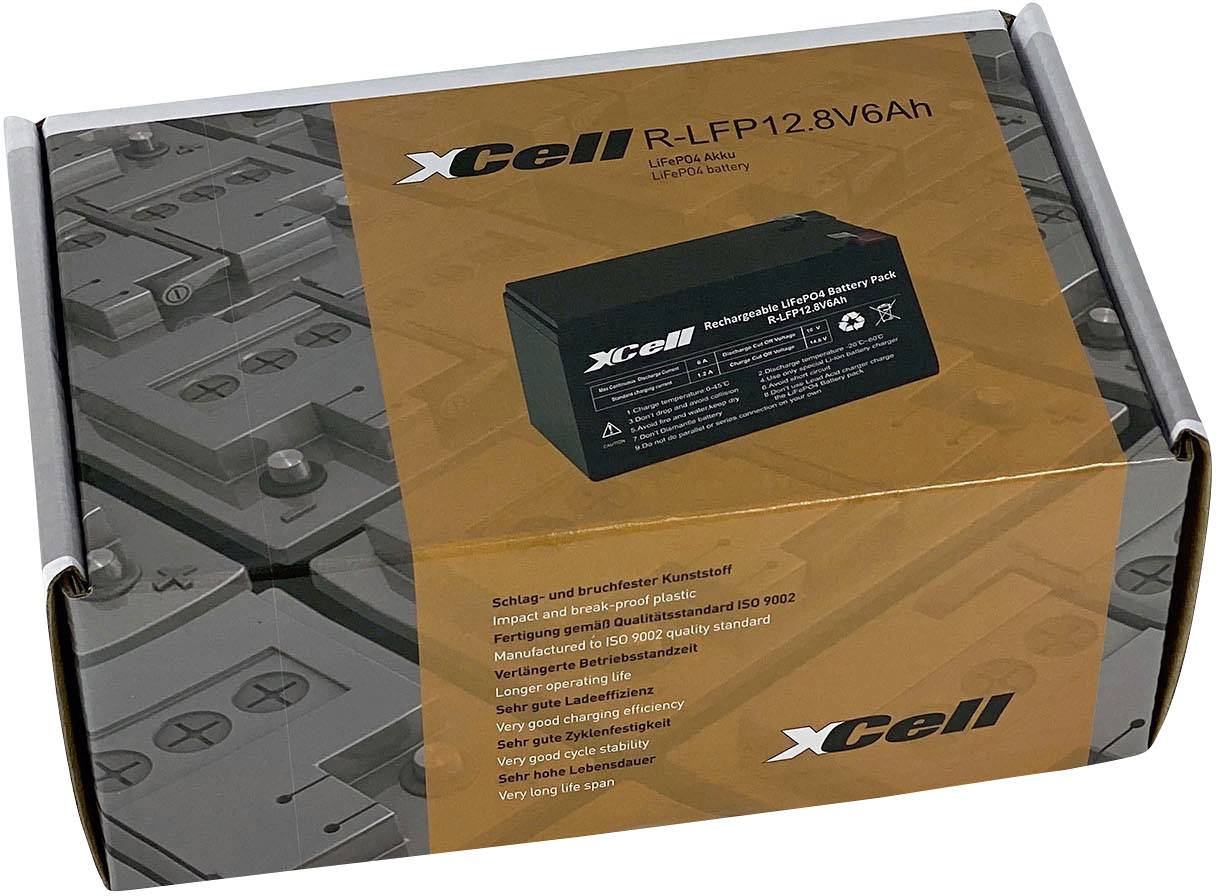

The packaging contains a rechargeable LiFePO4 battery by XCell, model R-LFP12.8V6Ah, with British product information.

1/2

Datasheet (PDF)

Unavailable

33 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

XCell lithium iron phosphate battery 12.8-6

High intrinsic safety
Quick charging capability and BMS protective circuit
Can be used in any position
Up to 2000 cycles at 100% discharge
Further temperature range -30 to +60-°C.
1/3 weight of lead-acid batteries

Technical specifications

6.35 mm flat-pin plug

Size: LiFePo PP3

Product type: Non-standard battery (rechargeable)

Technology: LiFePO4

Dim: (W x H x D) 65 x 94 x 151 mm

Voltage: 12.8 V

Capacity (mAh, Ah): 6000 mAh

Special-purpose battery features: Blade terminal

Max. charge voltage: 14.6 V

Max. charging current: 6 A

Terminal voltage: 10 V

Discharge current (max.): 12 A

Min. temperature: -30 °C

Max. temperature: +60 °C

Width: 65 mm

Height: 94 mm

Depth: 151 mm

Weight: 776 g

Content: 1 pc(s)

Type: 12.8-6

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 2300608 XCell 12.8-6 Non-standard battery (rechargeable) LiFePo PP3 Blade terminal LiFePO4 12.8 V 6000 mAh 1 pc(s)

Security datasheet

Security datasheet 2300608 XCell 12.8-6 Non-standard battery (rechargeable) LiFePo PP3 Blade terminal LiFePO4 12.8 V 6000 mAh 1 pc(s)

Description

Derr XCell Lithium iron phosphate battery is universally applicable and has a low weight. The innovative technology offers a high intrinsic safety, even under the most extreme conditions there is no risk of explosion. Thanks to the BMS protective circuit, the battery can be charged with conventional lead-acid chargers.
