Highlights & Details

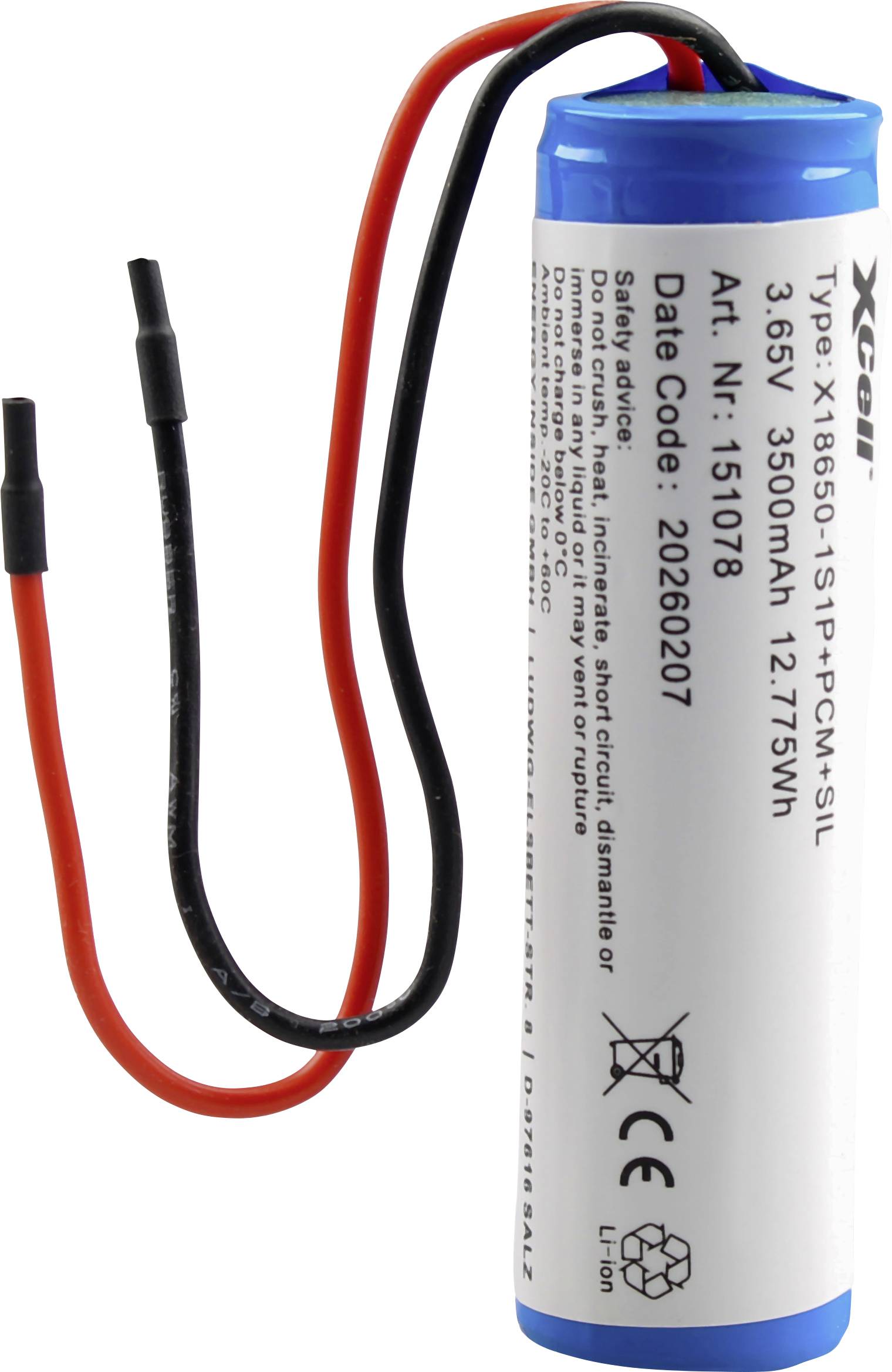

XCell Non-standard battery (rechargeable) 1x 18650 Li-ion 3.7 V 3500
- • High energy density (approximately twice that of NiMH)
- • Low self-discharge
- • Good performance even at low temperatures
- • Thermally stable, integrated protection against overloading, overload, short-circuit and deep discharge
- • High cycle stability
- • Quality tested
- • Safety board for maximum safety
- • No memory effect
Technical specifications
- Product type
Non-standard battery (rechargeable)
- Size
18650
- No. of cells
1
- Voltage
3.7 V
- Capacity (mAh, Ah)
3500
- Technology
Li-ion
- Height
70 mm
- (Ø)
20 mm
- Weight
51
- Content
1 pc(s)
- Manufacturer part #
151078
- Type
151078
- Rechargeable
Yes
- Dim
(Ø x H) 20 mm x 70 mm
Documents & Downloads
Datasheet
Datasheet 3768159 XCell Non-standard battery (rechargeable) 1x 18650 Li-ion 3.7 V 3500
User & Safety Instructions
User & Safety Instructions 3768159 XCell Non-standard battery (rechargeable) 1x 18650 Li-ion 3.7 V 3500
Description
The XCell lithium ion standard battery packs have many applications and are also available in small series.
All packs are based on popular 18650 lithium ion cells and meet the UN Transport Test (UN 38.3) as standard.
By different designs in parallel or serial switching the suitable power supply can be realized for almost every application.
Lithium-ion batteries are considered a pioneering energy source: They offer around twice the energy density of NiMH cells and low self-discharge, WAS makes them ideal for a wide range of applications. In addition, lithium-ion packs are thermally stable and very cold-resistant. The integrated protection circuit reliably protects against overcharging, overload, short circuit and deep discharge.
