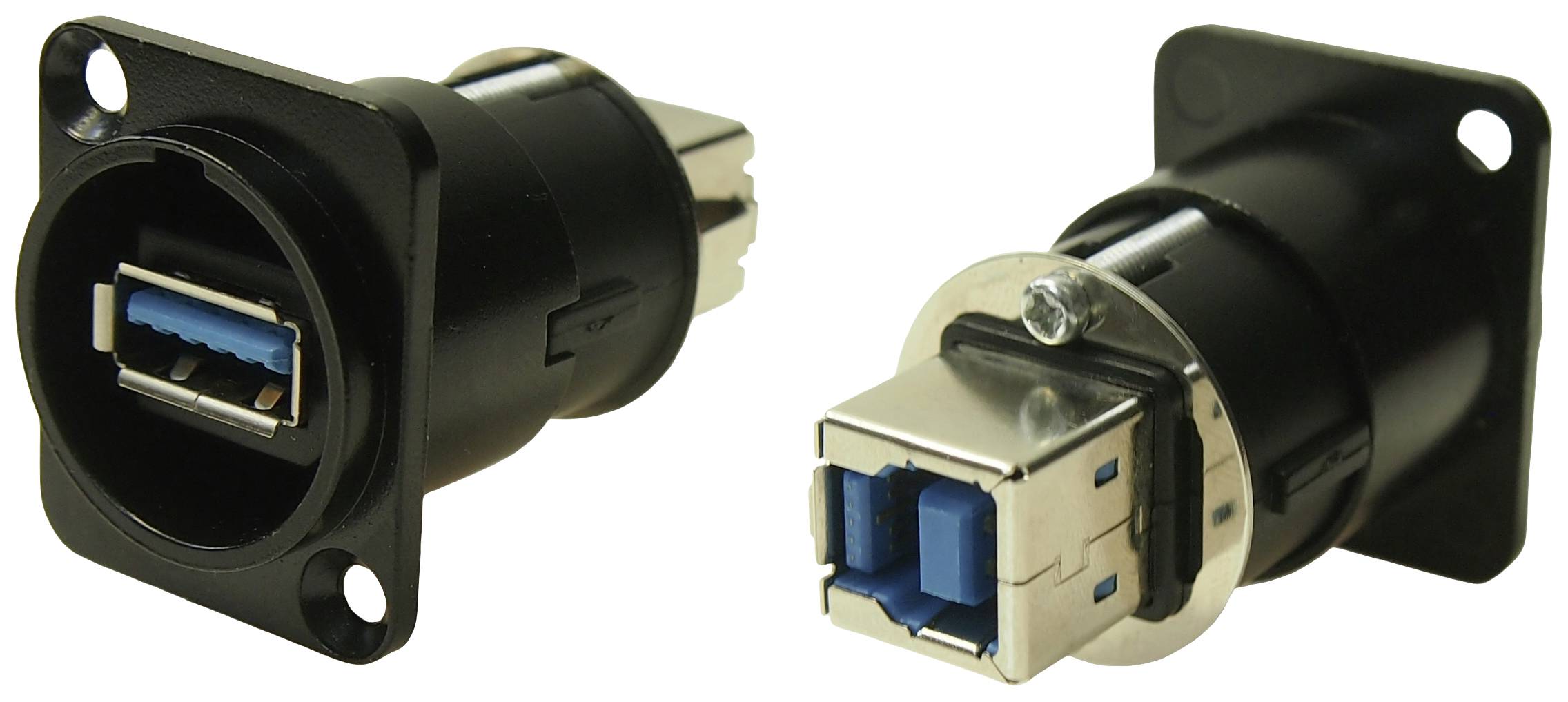

XLRFT USB 3.0 A-B socket black metal ground Adapter, built-in CP30108 Cliff Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Connector type
Adapter, built-in
Type
CP30108
Connection
Jack connector
Type A
USB 3.0
Datasheet (PDF)
Total (€ 4.23 / piece)
€ 4.23
plus VAT.
14-day return policy included
Technical specifications
- Contact resistance 30 MΩ
- Dielectric strength 500 V/AC
- Insulation resistance 1000 MΩ
- Packaging type
Piece
- Type
CP30108
- Connector type
Adapter, built-in
- Connection
Jack connector
- Type A
USB 3.0
- Type B
USB 3.0
- Mounting hole diameter
24 mm
- Bore Ø
24 mm
- Case material
Metal
- Manufacturer part #
CP30108
- Factory colour
Black
- Content
1 pc(s)
- Material
Metal
- Nominal voltage (details)
30 V
- Nominal current (details)
1.5 A
- Width
26 mm
- Length
31 mm
- Max. temperature
+85 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3280482 XLRFT USB 3.0 A-B socket black metal ground Adapter, built-in CP30108 Cliff Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3280482 XLRFT USB 3.0 A-B socket black metal ground Adapter, built-in CP30108 Cliff Content: 1 pc(s)
Description
Features
- Fits in standard XLR Ø24mm section
- No soldering or punching connection. Use standard cables for each type of connector
- Front or back mounting
- This text is machine translated.
