XPG INVADER X BTF Midi tower PC casing White
EAN:
Part number:
Item no:
Highlights & Details

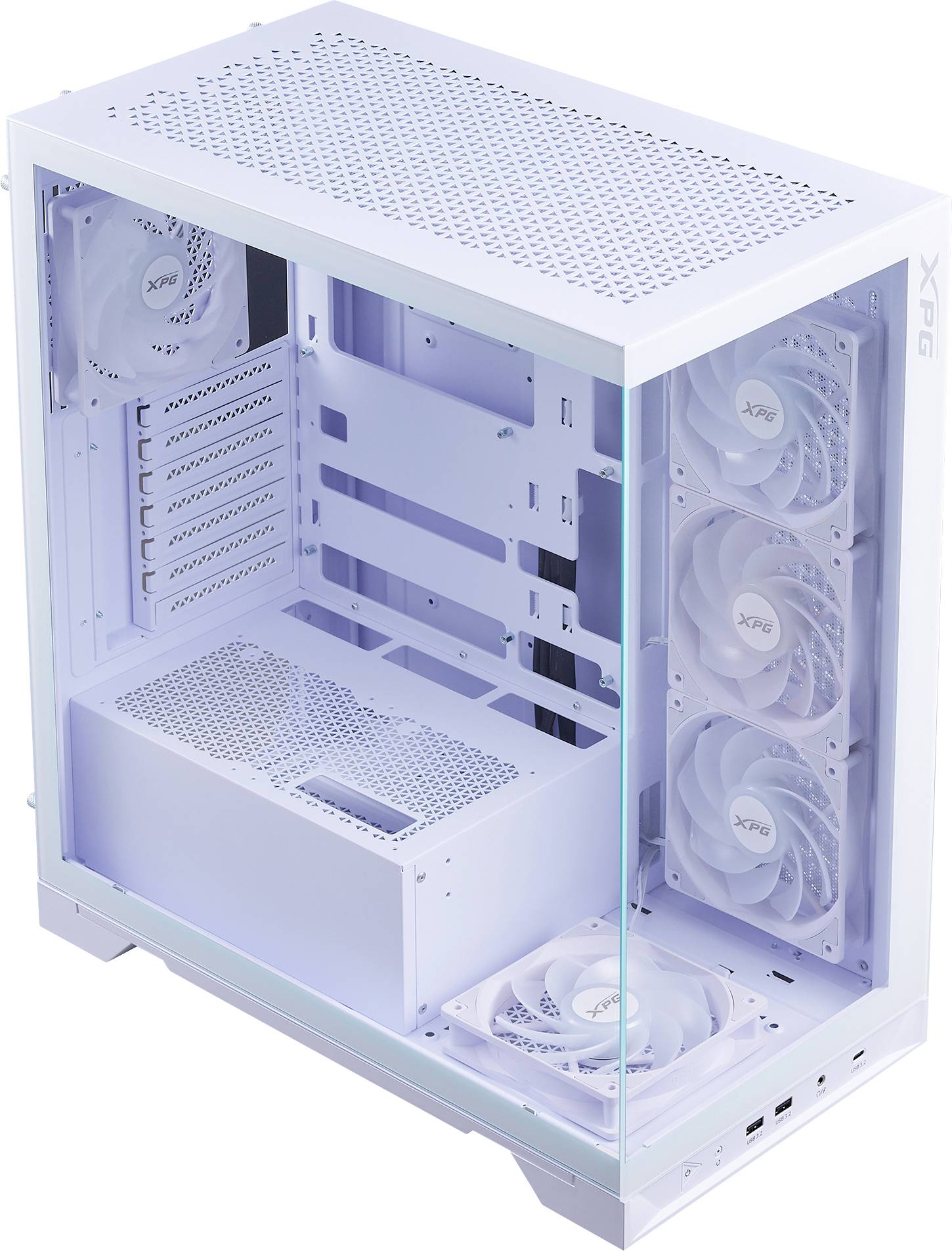

XPG INVADER X BTF Midi tower PC casing
- Midi tower PC
- ATX, micro ATX, mini ATX
- Supported Hard Disk Drive sizes: 3.5" SSD form factor: 2.5"
- Number of 3.5" extension slots: 3
- Side window
- SPCC, Hardened Glass
- White
Technical specifications
- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Number of C-type connectors: 1
- Combined headphone/microphone connection: Yes
- Built-in display: No.
- Form factor:Midi-Tower
- Type PC
- Product Colour: White
- Supported motherboards form factors: ATX;Micro ATX;Mini ATX
- Number of 3.5" extension slots: 3
- Material: SPCC, Hardened Glass
- Side window: Yes
- Reset button: Yes
- On/off switch: Yes
- Max CPU cooler height 17.5 cm
- Max graphics card length 40 cm
- Maximum PSU Length 24 cm
- Width 245 mm
- Depth: 448 mm
- Height: 485 mm
- Weight: 8.95 kg
- Material thickness: 3 mm
- Number of supported rear fans (max.): 1
- Diameter of supported rear fan: 120.140 mm
- Number of supported top fans (max.): 3
- Supported fan diameters (top): 120.140 mm
- Number of supported lower fans (max.): 1
- Diameter supported fan: 120.140 mm
- Supported radiator sizes at the rear 120 mm
- Supported radiator sizes above: 120,140,180,240,280,320,360 mm
- No. of supported side fans (max.): 3
- Diameter supported side fans: 120 mm
- Supported sizes of side radiators: 120,140,200,240,280,360 mm
- Supported hard-disk drive sizes: 3.5"
- Maximum number of HDD supported: 3
- SSD form factor 2.5"
- Power supply included: No.
- Product type
PC casing
- Case type
Midi tower
- Factory colour
White
- 8.9 cm (3.5") internal slots
3
- 8.9 cm (3.5") external slots
3
- Width
245 mm
- Height
448 mm
- Depth
485 mm
- Weight
8.95 kg
- Form factor
ATX
Micro-ATX
Mini-ATX
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 245 x 448 x 485 mm
- No. of USB 3.2
2 x
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- UKCA
yes
- Material thickness
3 mm
- On/off button
yes
- Number of HDDs supported
3
- Reset button
yes
- Package weight
10.2 kg
- Number of side fans supported (max)
3
- Number of rear fans supported (max)
1
- Number of top fans supported (max)
3
- Number of bottom fans supported (max)
1
- Built-in display
no
- Power supply included
no
- Side window
yes
- Maximum CPU cooler height
17.5 cm
- Maximum graphics card length
40 cm
- Maximum PSU length
24 cm
- Combo headphone/mic port
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2928164 XPG INVADER X BTF Midi tower PC casing White
Description
BUILT FOR THE FUTURE
The latest Ocean View package from XPG is compatible with the latest ATX reverse connector boards and offers the ultimate platform to stand out with its clean cable management. Fitted with four pre-installed reversing fans and a standard fan it provides for an optimum air flow power and at the same time offers an elegant aesthetics from every angle.
Compatibility with reverse connector motherboards
Imagine a very easy cable management! XPG INVADER X BTF supports both standard and innovative new reverse connector boards. Say goodbye to cable spaghetti and welcome a better organized interior. Cables can now be routed efficiently behind the motherboard compartment, WAS creates impressive systems from every angle with a clean appearance.
Improved cooling for better performance
Four pre-installed 120 mm reverse Blade fans are optimized for side and lower air intake and provide an extraordinary air flow for the entire system. With space for up to 360-mm cooler on the upper side of this casing offers an extraordinary cooling performance for demanding gaming and overclocking.
Future-proof compatibility
The XPG INVADER X BTF is distinguished by its outstanding versatility in the selection of motherboards and components. It is suitable for a large number of motherboard sizes and supports ATX, Micro ATX and even the compact mini ITX form factors. The housing also provides space for graphic cards up to 400 mm long and thus provides enough space even for the most powerful GPUs. In addition, the XPG INVADER X BTF provides enough space for power supplies up to 240 mm long.
Versatile GPU-mounting: Horizontal or vertical
Flexible configuration for cooling
This text is machine translated.
The latest Ocean View package from XPG is compatible with the latest ATX reverse connector boards and offers the ultimate platform to stand out with its clean cable management. Fitted with four pre-installed reversing fans and a standard fan it provides for an optimum air flow power and at the same time offers an elegant aesthetics from every angle.
Compatibility with reverse connector motherboards
Imagine a very easy cable management! XPG INVADER X BTF supports both standard and innovative new reverse connector boards. Say goodbye to cable spaghetti and welcome a better organized interior. Cables can now be routed efficiently behind the motherboard compartment, WAS creates impressive systems from every angle with a clean appearance.
Improved cooling for better performance
Four pre-installed 120 mm reverse Blade fans are optimized for side and lower air intake and provide an extraordinary air flow for the entire system. With space for up to 360-mm cooler on the upper side of this casing offers an extraordinary cooling performance for demanding gaming and overclocking.
Future-proof compatibility
The XPG INVADER X BTF is distinguished by its outstanding versatility in the selection of motherboards and components. It is suitable for a large number of motherboard sizes and supports ATX, Micro ATX and even the compact mini ITX form factors. The housing also provides space for graphic cards up to 400 mm long and thus provides enough space even for the most powerful GPUs. In addition, the XPG INVADER X BTF provides enough space for power supplies up to 240 mm long.
Versatile GPU-mounting: Horizontal or vertical
Flexible configuration for cooling
This text is machine translated.
