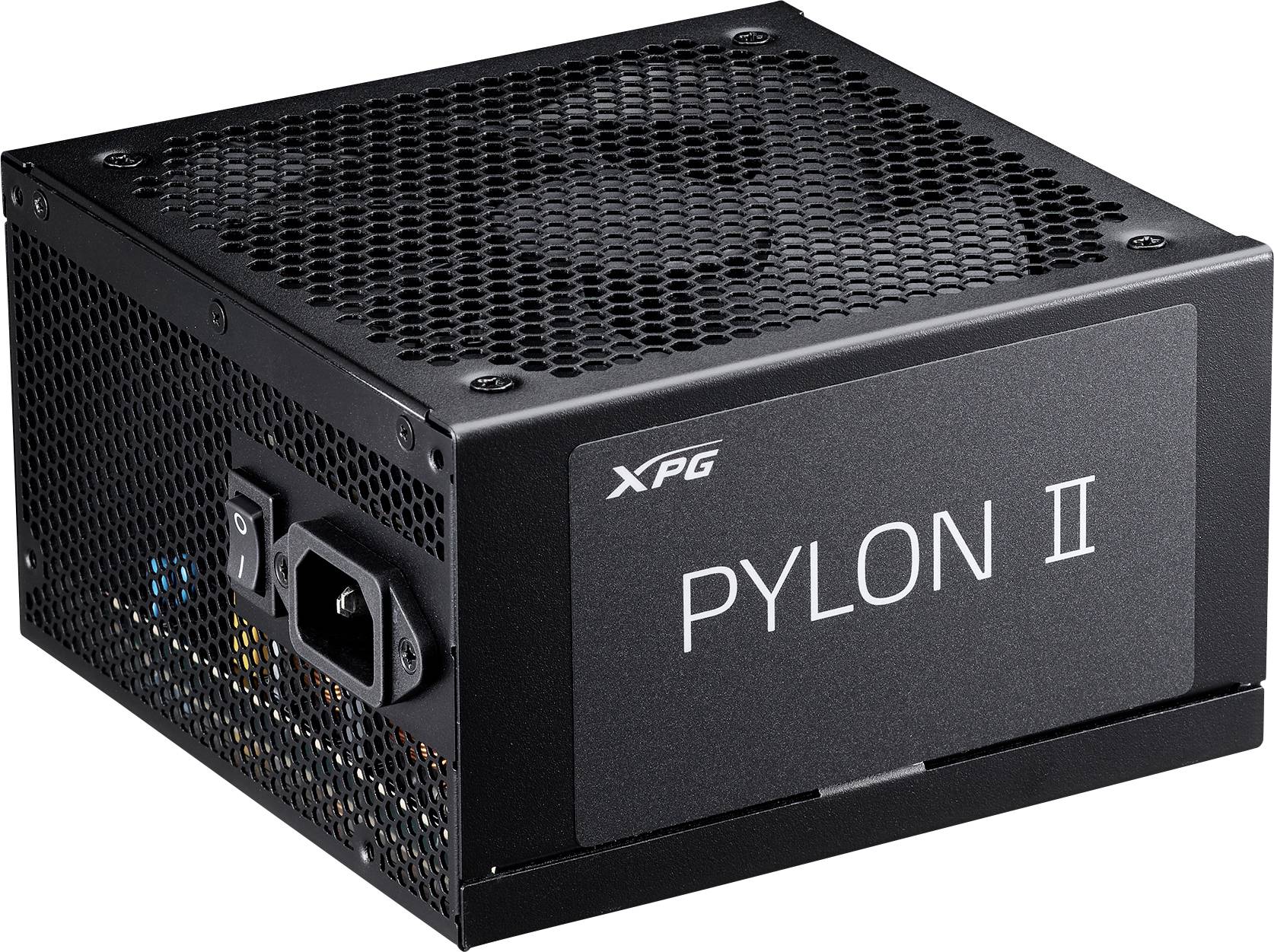

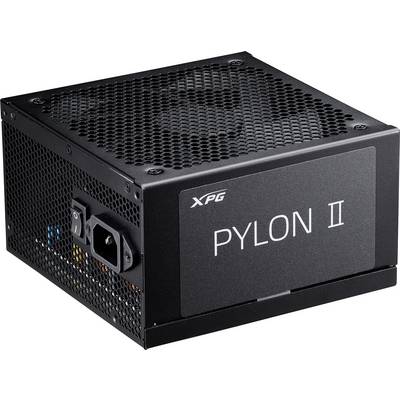

XPG Netzteil XPG PYLON II 750B PC power supply unit 750 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
750 W
Certification
80 PLUS Bronze
Form factor
ATX
Factory colour
Black
Highlights & Details
XPG Netzteil XPG PYLON II 750B PC power supply unit
- Power supply unit output 750 W
- PCI-Express (6+2-Pin) 1x
- Cable management
- 80 PLUS Bronze
Technical specifications
- 80 Plus certification: 80 PLUS Bronze
- Fan diameter 13.5 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
750 W
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Black
- ATX version
ATX 2.4
- Dim
(W x H x D) 150 x 86 x 150 mm
- Depth
150 mm
- Height
86 mm
- Width
150 mm
- Weight
1.8 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
62.5 A
- 5 V DC
22 A
- +5V / DC SB
3 A
- 4-pin Molex
2
- 6-pin PCIe
1
- 6-pin PCIe
1
- 5-pin SATA
6
- Output rating > 700 W
750 W
- Power rating
501 - 750 W
- Cooling
Active
- Fan size
135 mm
- 3.3V DC
22 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Mean time between failures (MTBF)
100000 h
- On/off switch
yes
- EPS power connector (8-pin)
yes
- Power factor
0.99
- Fan speed
0 - 2300 RPM
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3556432 XPG Netzteil XPG PYLON II 750B PC power supply unit 750 W ATX 80 PLUS Bronze
