XPG PROBE 600 PC power supply unit 600 W ATX 80 PLUS Bronze
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
600 W
Modular
No
Certification
80 PLUS Bronze
Form factor
ATX
Highlights & Details

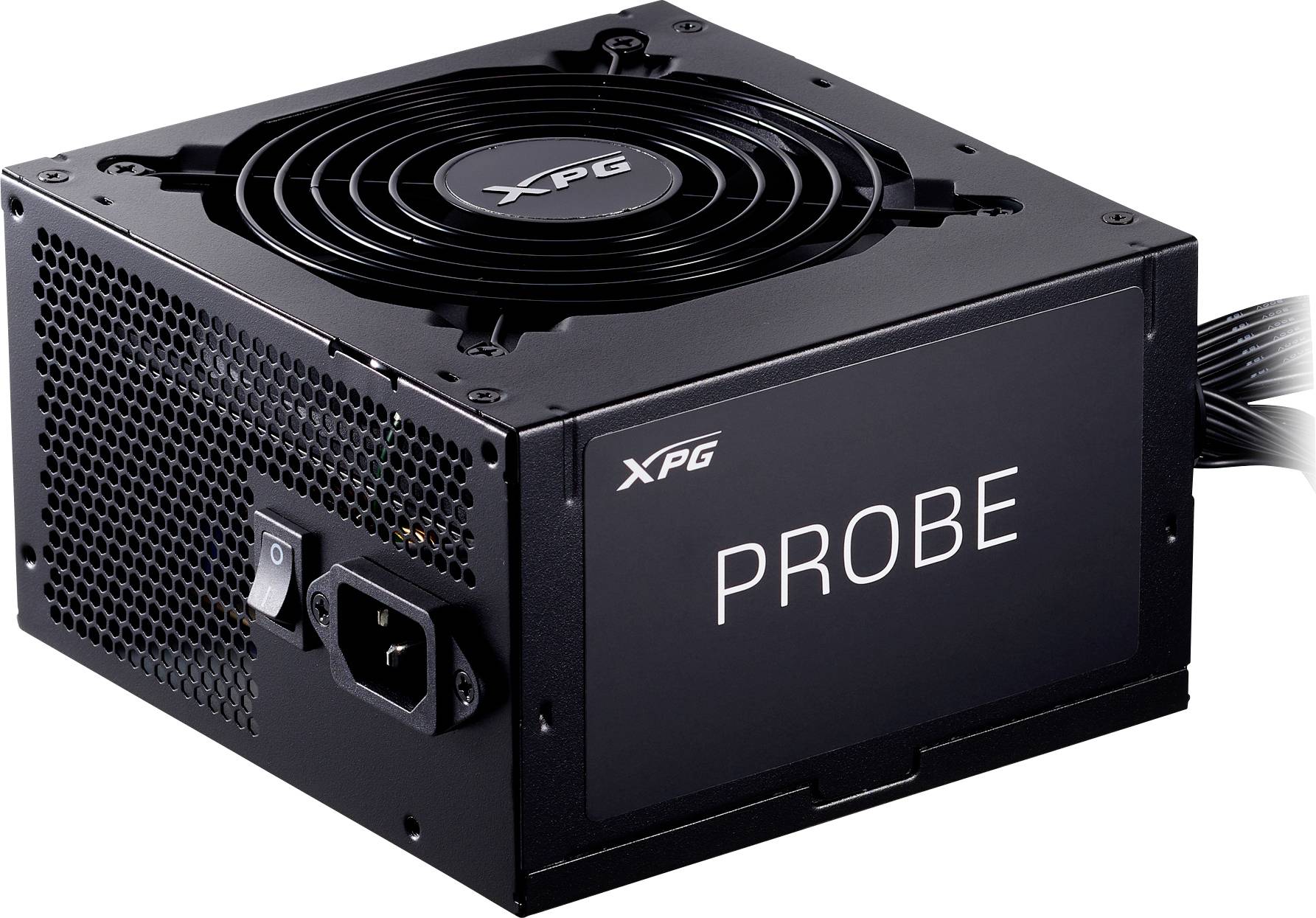

XPG PROBE 600 PC power supply unit
- Power supply unit output 600 W
- PCI-Express (6+2-Pin) 2x
- Cable management No
- 80 PLUS Bronze
Technical specifications
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
600 W
- Modular
No
- Certification
80 PLUS Bronze
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 140 x 86 mm
- Depth
86 mm
- Height
140 mm
- Width
150 mm
- Weight
1.48 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
46 A
- 5 V DC
17 A
- +5V / DC SB
2.5 A
- 20+4-pin.
1
- 4-pin Molex
2
- 6-pin PCIe
2
- 5-pin SATA
5
- Power rating
501 - 750 W
- Cooling
Active
- 3.3V DC
19 A
- Power supply (details)
100 - 240 V
- Operating voltage
100 - 240 V / AC
- UKCA
yes
- Operating temperature (T-T)
0 - 40 °C
- ATX Power connector (24-pin)
yes
- EPS power connector (4+4 pin)
yes
- Mean time between failures (MTBF)
100000 h
- Fan diameter
12 cm
- Power factor
0.99
- Fan speed
2160 - 2640 RPM
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987286 XPG PROBE 600 PC power supply unit 600 W ATX 80 PLUS Bronze
Description
SAMPLE
FUNCTIONAL, APPLICABLE AND RELIABLE
With up to 87% efficiency at 50% load and a 120 mm low-noise fan with intelligent curve, XPG PROBE is designed to provide your system with a stable and reliable power supply!
80-Plus Bronze-Efficiency
The XPG PROBE exceeds the requirements of 80 Plus Bronze certification with up to 87% efficiency at 50% load and ensures a stable power supply to all components, minimizing the risk of electrical damage.
Improved operational safety
Unlike most bronze power supplies, XPG PROBE ATX v2.52 is compatible, WAS improves overall reliability and ensures safer operation of your current and future hardware.
Compact size for easy installation
With a compact length of 140 mm, XPG PROBE makes it easier to install in common PC housings and reduces cable build-up.
Intelligent fan curve design
The 120 mm large, low-noise fan with plain bearing and intelligent curve design keeps the power supply cool, without causing excessive noise. This reduces power consumption for cooling and improves overall energy efficiency.
Long, reliable life
The XPG PROBE comes with premium capacitors with a rated temperature of 105°C, providing greater reliability, premium efficiency and longer life.
Six industrial safety devices
The XPG PROBE offers six industrial-quality protective devices that protect your system from overload, overvoltage, overvoltage, and inrush current, undervoltage, short circuits, and overtemperature.
This text is machine translated.
