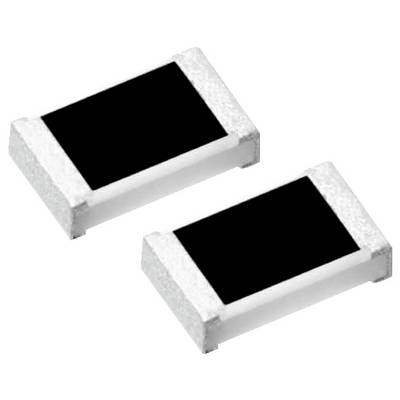

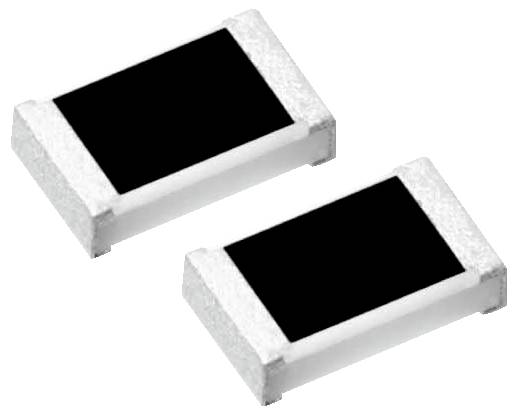

Yageo AC0402FR-0710KL SMD resistor 10 kΩ SMD 0402 63 mW 1 % 100 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
0402
Resistance
10 kΩ
Power rating
63 mW
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series AC0402
- Design 0402
- Delivery type: Belt
- Resistance tolerance: ±1 %
- Rated power: 0.063 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 50 V DC
- Max. OPERATING VOLTAGE (AC) 50 V AC
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
0402
- Resistance
10 kΩ
- Power rating
63 mW
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
1 mm
- Width
0.5 mm
- Height
0.32 mm
- Content
1 pc(s)
- Dim
(L x W x H) 1 x 0.5 x 0.32 mm
- RoHS-compliant
Yes
- Type
AC0402FR-0710KL
- Nominal current
1.000 mA
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- Certification marks
AEC-Q200
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465201 Yageo AC0402FR-0710KL SMD resistor 10 kΩ SMD 0402 63 mW 1 % 100 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465201 Yageo AC0402FR-0710KL SMD resistor 10 kΩ SMD 0402 63 mW 1 % 100 ppm/°C 1 pc(s) Tape
Description
SMD Thick Film Resistors 63mW 1% 0402
This text is machine translated.
This text is machine translated.
Features
- • SMD thick film resistor
- • AEC-Q200 qualified
- • Moisture sensitivity level MSL I
- • Halogen-free epoxy
- • High reliability
