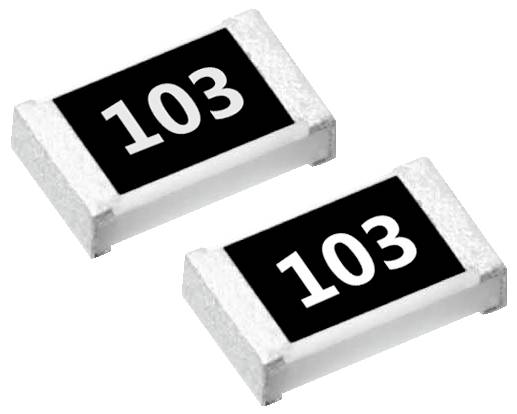

Yageo AC0603FR-076K8L SMD resistor 6.8 kΩ SMD 0603 0.1 W 1 % 100 ppm/°C 1 pc(s)
Part number:
Item no:
Product type
SMD resistor
Type
0603
Resistance
6.8 kΩ
Power rating
0.1 W
Tolerance ±
1 %
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series AC0603
- Design 0603
- Delivery type: Belt
- Resistance tolerance: ±1 %
- Rated output: 0.1 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 75 V DC
- Max. OPERATING VOLTAGE (AC) 75 V AC
- Max. Operating current 2 A.
- Product type
SMD resistor
- Type
SMD
- Type
0603
- Resistance
6.8 kΩ
- Power rating
0.1 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
1.6 mm
- Width
0.8 mm
- Height
0.45 mm
- Content
1 pc(s)
- Dim
(L x W x H) 1.6 x 0.8 x 0.45 mm
- RoHS-compliant
Yes
- Type
AC0603FR-076K8L
- Nominal current
1.000 mA
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- Certification marks
AEC-Q200
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465230 Yageo AC0603FR-076K8L SMD resistor 6.8 kΩ SMD 0603 0.1 W 1 % 100 ppm/°C 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465230 Yageo AC0603FR-076K8L SMD resistor 6.8 kΩ SMD 0603 0.1 W 1 % 100 ppm/°C 1 pc(s)
Description
SMD-Thick film resistors 0.1W 1% 0603
This text is machine translated.
This text is machine translated.
Features
- • SMD thick film resistor
- • AEC-Q200 qualified
- • Moisture sensitivity level MSL I
- • Halogen-free epoxy
- • High reliability
