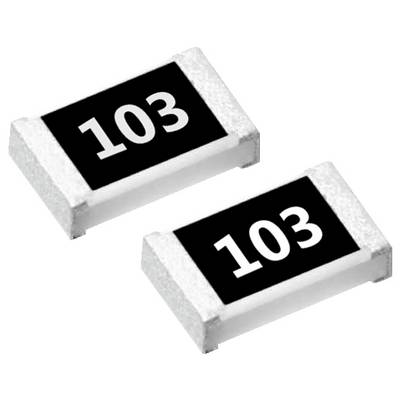

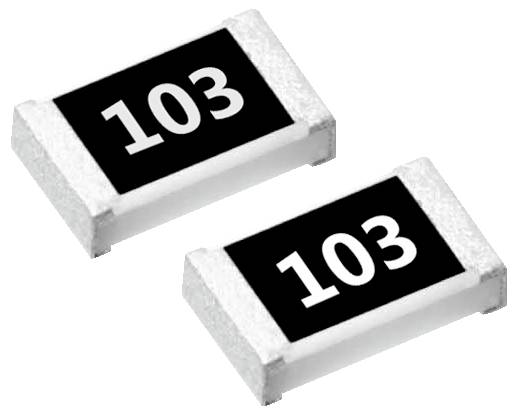

Yageo AC0805FR-0710KL SMD resistor 10 kΩ SMD 0805 0.125 W 1 % 100 ppm/°C 1 pc(s)
Part number:
Item no:
Product type
SMD resistor
Type
0805
Resistance
10 kΩ
Power rating
0.125 W
Tolerance ±
1 %
Datasheet (PDF)
Technical specifications
- ESD Packaging: No ESD
- Series AC0805
- Design 0805
- Delivery type: Belt
- Resistance tolerance: ±1 %
- Rated output: 0.125 W
- Load reduction: Linear from 70°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 150 V DC
- Max. OPERATING VOLTAGE (AC) 150 V AC
- Product type
SMD resistor
- Type
SMD
- Type
0805
- Resistance
10 kΩ
- Power rating
0.125 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/°C
- Length
2 mm
- Width
1.25 mm
- Height
0.5 mm
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 0.5 mm
- RoHS-compliant
Yes
- Type
AC0805FR-0710KL
- Nominal current
2.000 mA
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
-55 °C
- Certification marks
AEC-Q200
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3465233 Yageo AC0805FR-0710KL SMD resistor 10 kΩ SMD 0805 0.125 W 1 % 100 ppm/°C 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465233 Yageo AC0805FR-0710KL SMD resistor 10 kΩ SMD 0805 0.125 W 1 % 100 ppm/°C 1 pc(s)
Description
SMD Thick Film Resistors 1/8W 1% 0805
This text is machine translated.
This text is machine translated.
Features
- • SMD Thick Film Resistance
- • AEC-Q200 certified
- • Moisture sensitivity level MSL I
- • Halogen-free epoxy resin
- • High reliability
