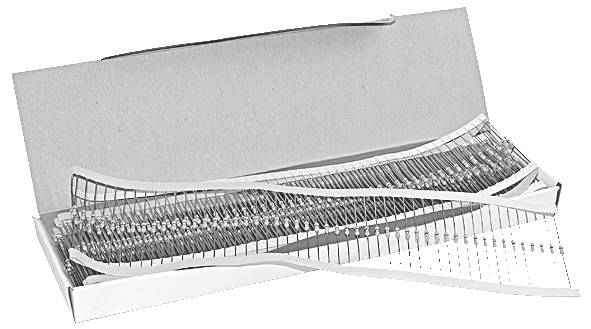

Yageo CFR-25JT-52-20K Carbon film resistor 20 kΩ Axial lead 0207 0.25 W 5 % 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Carbon film resistor
Type
Axial lead
Resistance
20 kΩ
Power rating
0.25 W
Datasheet (PDF)
Highlights & Details
Yageo coal-coated 0207 0.25W 5% 20K belt
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series CFR-25_G
- Size 0207
- Delivery type: Belt
- Total length 62 mm.
- Diameter, Resistance element 2.3 mm
- Diameter, connection wire 0.6 mm
- Solder carrying capacity 350° 5s
- Resistance tolerance: ±5 %
- Rated output: 0.25 W
- Max. OPERATING VOLTAGE (DC) 250 V DC
- Max. OPERATING VOLTAGE (AC) 250 V AC
- Nominal voltage: 250 V
- Max voltage 500 V
- Packaging type
Tape
- Product type
Carbon film resistor
- Type
Axial lead
- Type
0207
- Resistance
20 kΩ
- Power rating
0.25 W
- Tolerance ±
5 %
- Length
6.0 mm
- (Ø)
2.3 mm
- Content
1 pc(s)
- Dim
(Ø x L) 2.3 mm x 6.0 mm
- RoHS-compliant
Yes
- Type
CFR-25JT-52-20K
- Mounting type
PCB mount
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- Insulation resistance
10^10 MΩ
Documents & Downloads
Datasheet
Datasheet 3464306 Yageo CFR-25JT-52-20K Carbon film resistor 20 kΩ Axial lead 0207 0.25 W 5 % 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3464306 Yageo CFR-25JT-52-20K Carbon film resistor 20 kΩ Axial lead 0207 0.25 W 5 % 1 pc(s) Tape
Description
Carbon film resistors 1/4W 5% 0207 Gu
This text is machine translated.
This text is machine translated.
Features
- Carbon layer resistance
