Yageo SQP500JB-1K5 HV resistor 1.5 kΩ Axial lead 5 W 5 % 1 pc(s)
Part number:
Item no:
Product type
HV resistor
Resistance
1.5 kΩ
Power rating
5 W
Content
1 pc(s)
Type
Axial lead
Datasheet (PDF)
Highlights & Details
Yageo high load-layered 5 W 5% 1K5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series SQP500
- Delivery form: Loose
- Total length 94 mm.
- Diameter, connection wire 0.8 mm
- Resistance tolerance: ±5 %
- Rated output: 5 W
- Max voltage 1,000 V
- Product type
HV resistor
- Type
Axial lead
- Resistance
1.5 kΩ
- Power rating
5 W
- Tolerance ±
5 %
- Temperature coefficient
300 ppm/°C
- Length
22.0 mm
- Width
9.4 mm
- Height
9.4 mm
- Insulation resistance
100 MΩ
- Content
1 pc(s)
- Dim
(L x W x H) 22.0 x 9.4 x 9.4 mm
- RoHS-compliant
Yes
- Type
SQP500JB-1K5
- Mounting type
PCB mount
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- Certification marks
EIA RS-334, EIA RC-649 APPLICABLE
Documents & Downloads
Datasheet
Datasheet 3464228 Yageo SQP500JB-1K5 HV resistor 1.5 kΩ Axial lead 5 W 5 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464228 Yageo SQP500JB-1K5 HV resistor 1.5 kΩ Axial lead 5 W 5 % 1 pc(s)
Description
High-load wire-wound resistors 5W 5%
This text is machine translated.
This text is machine translated.
Features

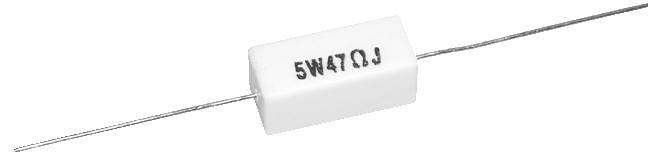

- - High-load wire resistance in ceramic housing
- - Low cost, small size, high stability at high temperatures
- - Low noise level, super heat dissipation
- - Carrier of high heat resistant insulator wrapped with resistance wire, in ceramic housing
- - Values up to 100 ohms are wire resistors, values greater than 100 ohms are power layer resistors
- - Connections made of tin-plated copper wire
