Name: Yealink Mcore-OPS-G2T Computing solution
Brand: Yealink
SKU: 3843881

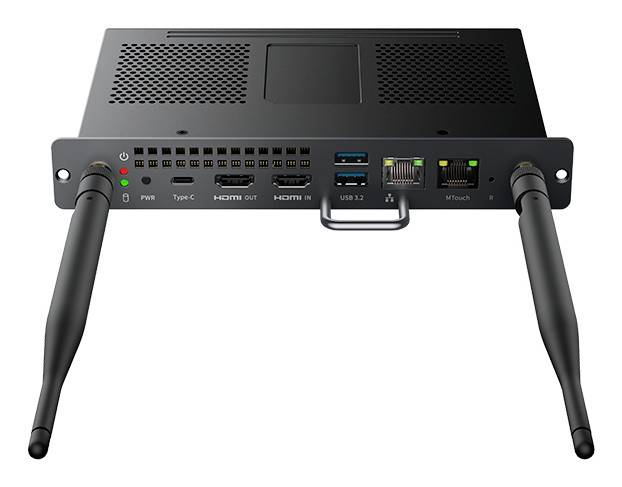

Rear view of a small black wireless networking device with two external antennas, showing power, Type-C, HDMI out, USB 3.2, and Ethernet ports.

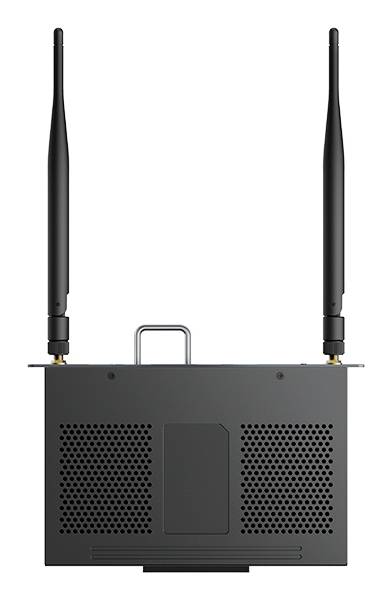

Rear view of a black wireless network device with two upright antennas and ventilation grilles on the back panel.

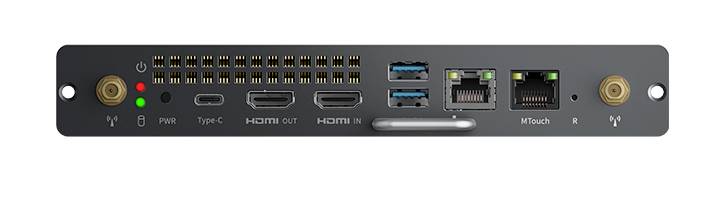

Rear I/O panel of a compact computer case with power button, status LEDs, USB-A and USB-C ports, HDMI out, Ethernet, audio jack, and antenna connectors.

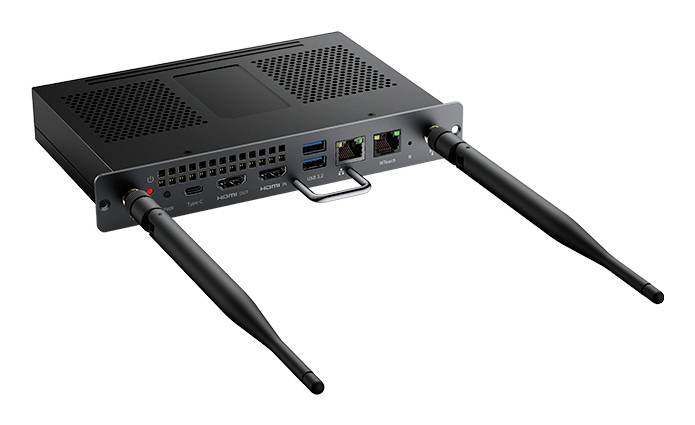

Black wireless networking device with two external antennas, rear Ethernet and USB ports, shown on a white background.

1/4

Yealink

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Yealink MCore OPS-G2T

Mini-PC, black
Intel Core Ultra 5 125H Number of processor cores: 12
16 GB DDR4 SDRAM 2 x 8 GB
256 GB SSD
Intel arc graphics
Ethernet/LAN Wi-Fi 6 (802.11ax) Bluetooth 5.2
Windows 11 IoT Enterprise 64-Bit

Technical specifications

Intel core processor (1 series)
Built-in graphics card model: Intel arc graphics
Product type: Mini PC
WLAN standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Installed operating system: Windows® 11 IoT Enterprise

Factory colour: Black

Product type: Computing solution

Bluetooth: 5.2

Bluetooth: Yes

Depth: 119 mm

Height: 30 mm

Width: 180 mm

No. of HDMI ports: 2 x

Processor cores (No.): 12 x

No. of USB type A 3.1 / 3.2 1st Gen: 2 x

Dedicated graphics card: No

Onboard graphics card: Yes

Onboard graphics card (GPU manufacturer): Intel

CPU series: Intel® Core™ Ultra 5

Memory capacity: 256 GB

10/100/1000 Mbps ports: 2 x

CPU speed: 0.7 GHz

: 16 GB

RAM type: DDR4 SDRAM

SSD: 256 GB

Onboard graphics card (version): Intel arc graphics

Processor/type: 125H

Weight: 700 g

Wi-Fi: Yes

CPU cache: 18 MB

Operating temperature (T-T): -10 - 50 °C

Ethernet LAN: yes

Display included: no

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1

Trusted Platform Module (TPM): yes

Efficient cores: 8

Performance cores: 4

Performance-core base frequency: 4.5 GHz

Efficient-core Max Turbo Frequency: 3.6 GHz

Performance-core Max Turbo Frequency: 4.5 GHz

Number of processors installed: 1

Operating relative humidity (H-H): 10 - 90 %

Storage temperature (T-T): -20 - 60 °C

Number of SSDs installed: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3843881 Yealink Mcore-OPS-G2T Computing solution

Description

Yealink MCCore-OPS-G2/MCCore-OPS-G2T is the latest modular computing solution for the Yealink MeetingBoard/MeetingBoard Pro series. Equipped with Intel core ultra 5, extended RAM and an ultra-fast SSD, it offers the necessary power for smooth multi-tasking, processing large files as well as audio and video conferences.

This text is machine translated.
