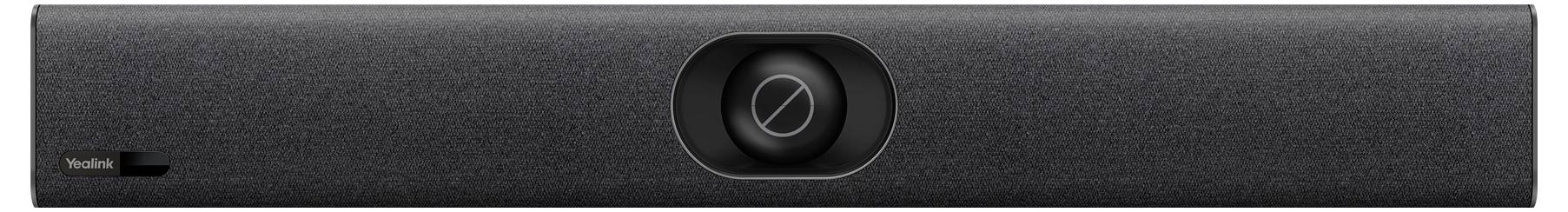

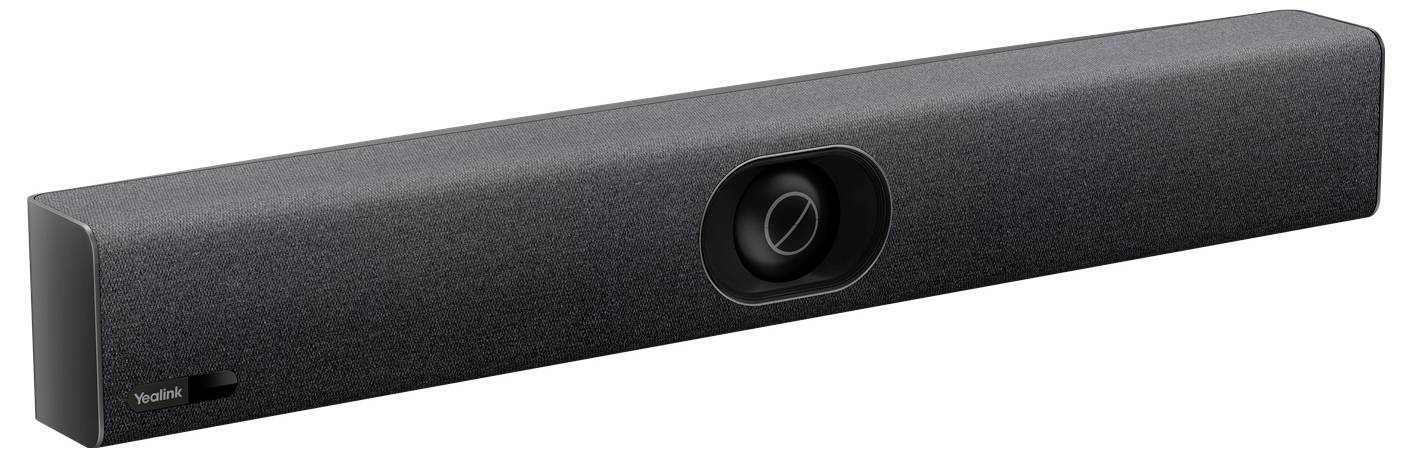

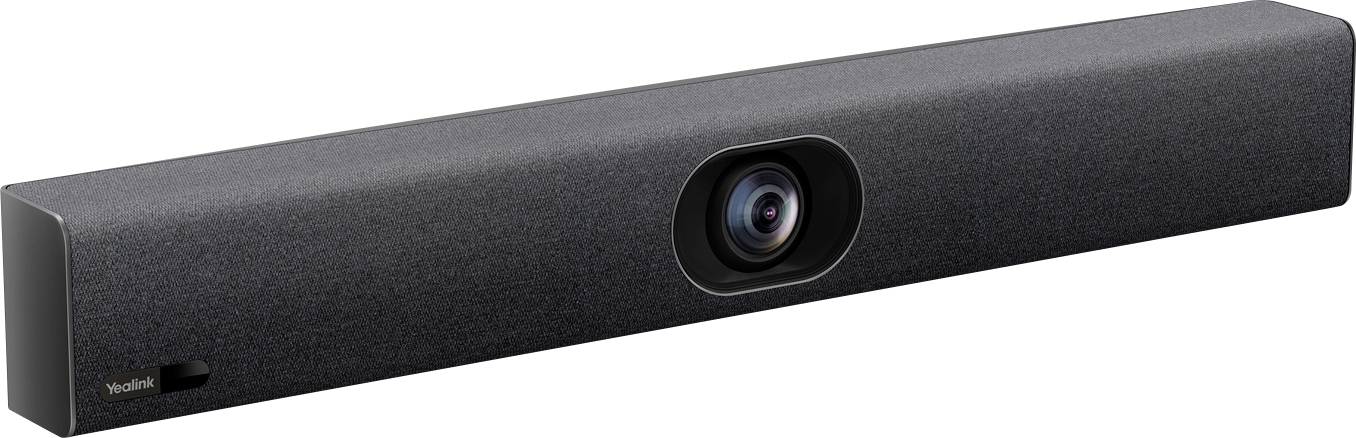

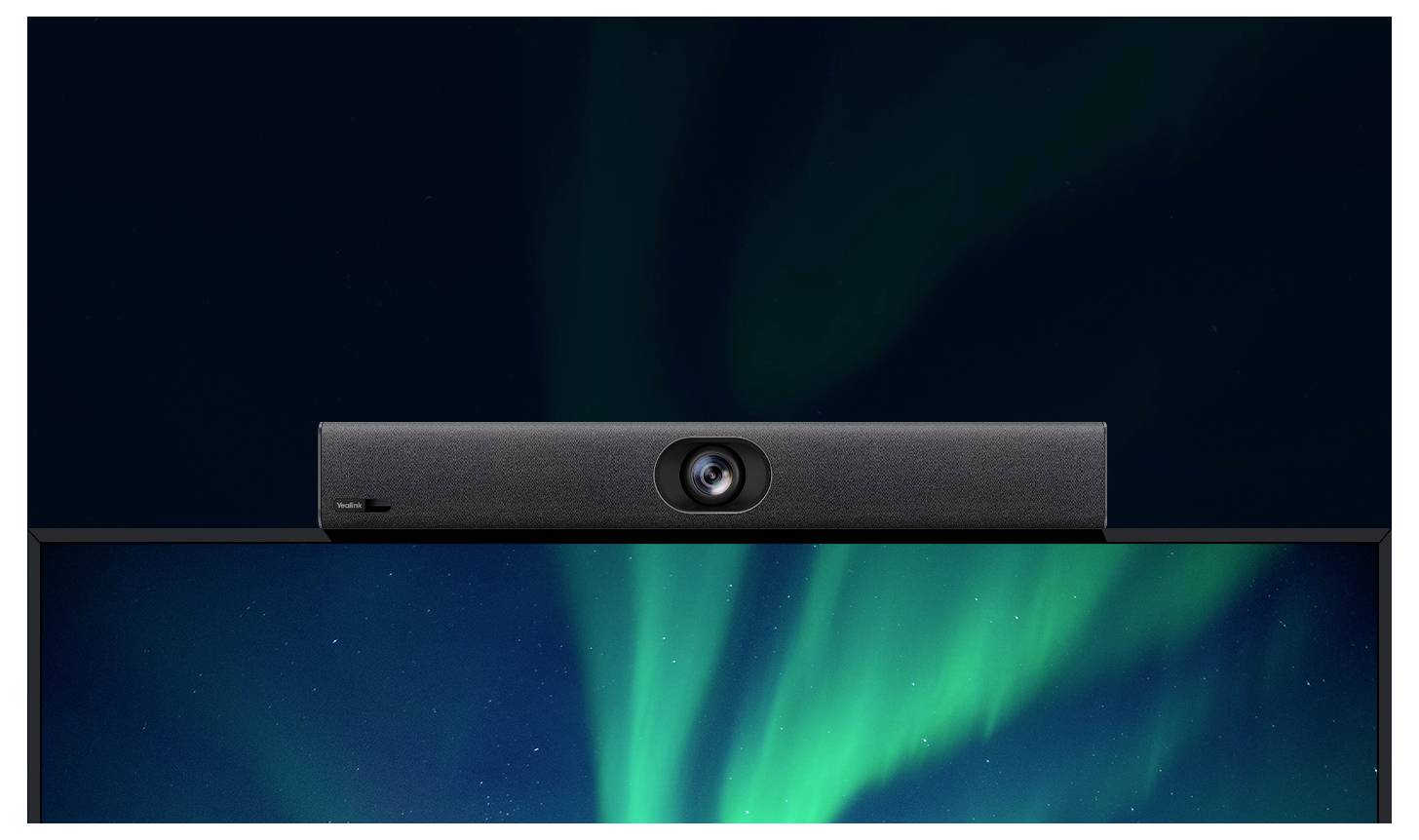

Yealink UVC40 E2 Conferencing system Audio line in, RJ45, Wi-Fi, USB Black
EAN:
Part number:
Item no:
Highlights & Details
Yealink UVC40 E2 videoconferencing system 8 MP Personal video conferencing system
- 8 microphone array with MEMS direction mode for clear audio recording
- 4K digital video camera with 120° wide angle lens for generous views
- Supports both wired and wireless connection options
- Functions such as automatic gain control and intelligent noise suppression improve communication quality
- Designed to work with Microsoft teams and Zoom rooms
Technical specifications
- Product type: Personal video conferencing system
- HD type 4K Ultra HD
- Maximum frame rate 30 fps
- Product type
Conferencing system

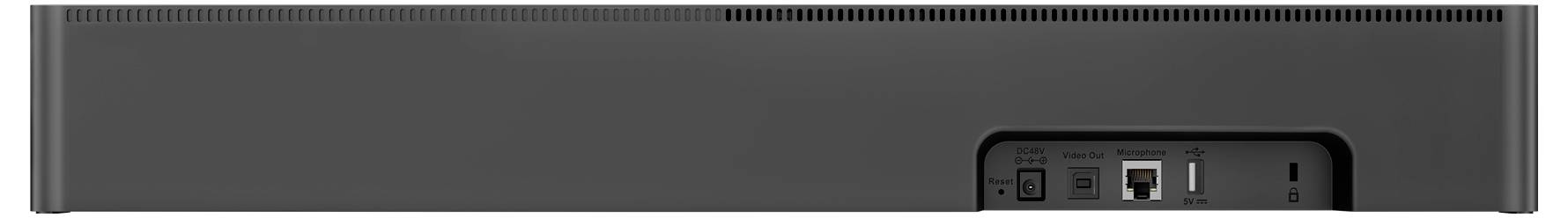

- Interfaces
Audio line in
RJ45
Wi-Fi
USB
- Factory colour
Black
- Depth
68 mm
- Height
82 mm
- Width
600 mm
- No. of USB A 2.0 ports
1 x
- Sensitivity (microphone)
-38 dB
- Power supply (details)
100 - 240 V
- Sensor type
CMOS
- Weight
1.37 kg
- Wi-Fi
Yes
- Audio system full duplex
yes
- Operating temperature (T-T)
0 - 40 °C
- Cable lock slot
yes
- Signal-to-Noise Ratio (SNR)
72 dB
- Speaker power
5 W
- Remote control included
yes
- Microphone in
yes
- DC-in jack
yes
- Built-in speaker(s)
yes
- Noise reduction
yes
- Line-out impedance
4 Ohm
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
- DC output voltage
48 V
- Quick start guide
yes
- Number of microphone arrays
1
- Auto framing
yes
- Reset slot
yes
- Frequency range
50 - 20000 Hz
- Megapixel (approx.)
8 MP
- DC output current
0.7 A
- Operating relative humidity (H-H)
10 - 95 %
- Echo cancellation
yes
- Number of microphones
8
- Automatic gain control
yes
- Storage temperature (T-T)
-30 - 70 °C
- Mounting kit
yes
- Field of view (FOV) angle
120°
- Number of cameras
1
- Audio Lip synchronization
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3737915 Yealink UVC40 E2 Conferencing system Audio line in, RJ45, Wi-Fi, USB Black
Description
The Yealink UVC40 E2 is an all-in-one video conferencing device that improves communication with its features. Equipped with a 8 microphone array and integrated speaker, it offers clear audio quality with a frequency response of 50 to 20,000 Hz. The integrated 8.0-megapixel camera records videos in 4K resolution at 30 frames per second, making every detail visible during meetings. With features such as automatic image alignment, noise reduction, and voice tracking, the UVC40 E2 delivers a seamless conferencing experience that fits in any professional environment.
Connectivity is simplified through various options such as SuperSpeed USB 3.0, USB 2.0 and Ethernet. The device supports both wired as well as wireless connections and thus ensures flexibility during setup. It integrates seamlessly into existing workflows with a range of compatibility options, such as Microsoft teams and Zoom rooms. The accompanying mounting kit and remote control make it easy to install and operate and make it a versatile solution for video conferences.
