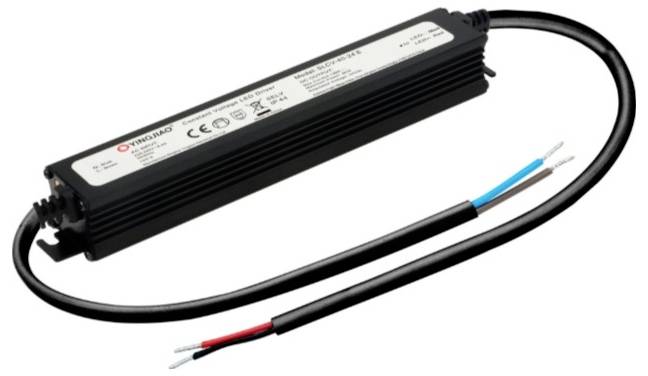

YingJiao SLCV-40-12E LED driver 40 W 3.3 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SLCV-40-12E
- 12 V
- 3.3 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- Product type
LED driver
- Dim
(L x W) 144 mm x 24 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP44
- Connection
Braid
- Max. power
40 W
- No. of outputs
1 x
- Output current (min.)
3.3 A
- Input voltage (max.)
264 V
- Min. input voltage
196 V AC
- Power range
40 W (max)
- Width
24 mm
- Length
144 mm
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Efficiency
89 %
Documents & Downloads
Datasheet
Datasheet 3435641 YingJiao SLCV-40-12E LED driver 40 W 3.3 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435641 YingJiao SLCV-40-12E LED driver 40 W 3.3 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
