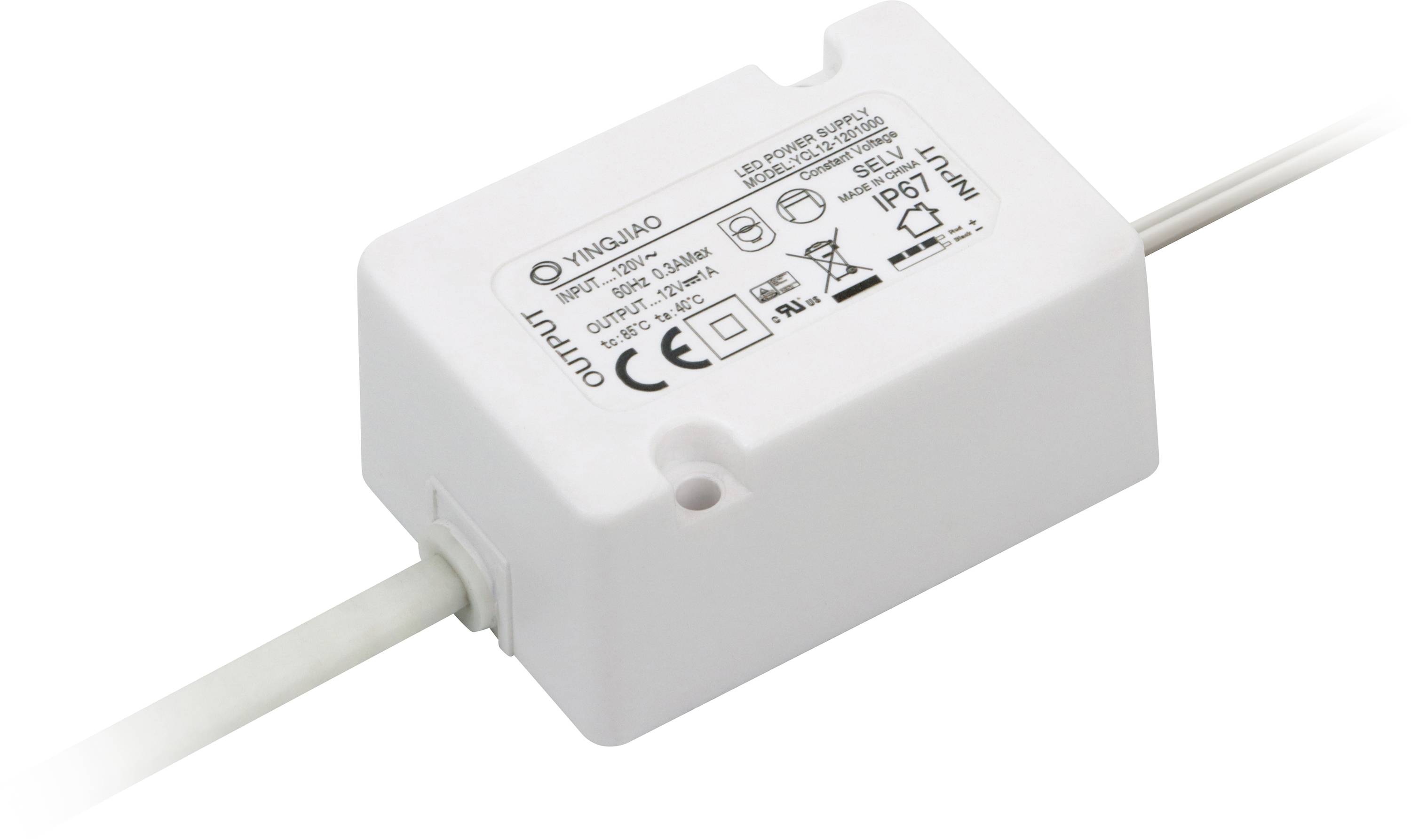

YingJiao YCL12-1201000 LED driver 12 W 1 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Fire.47802063 YSL12-12W LED-SNT IP67 plastic
- 12 V
- 1 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 56 mm x 39 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP67
- Connection
Braid
- Max. power
12 W
- No. of outputs
1 x
- Output current (min.)
1 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
12 W (max)
- Width
39 mm
- Length
56 mm
- Max. temperature
+40 °C
- Min. temperature
-20 °C
- Efficiency
82 %
Documents & Downloads
Datasheet
Datasheet 3435648 YingJiao YCL12-1201000 LED driver 12 W 1 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435648 YingJiao YCL12-1201000 LED driver 12 W 1 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
