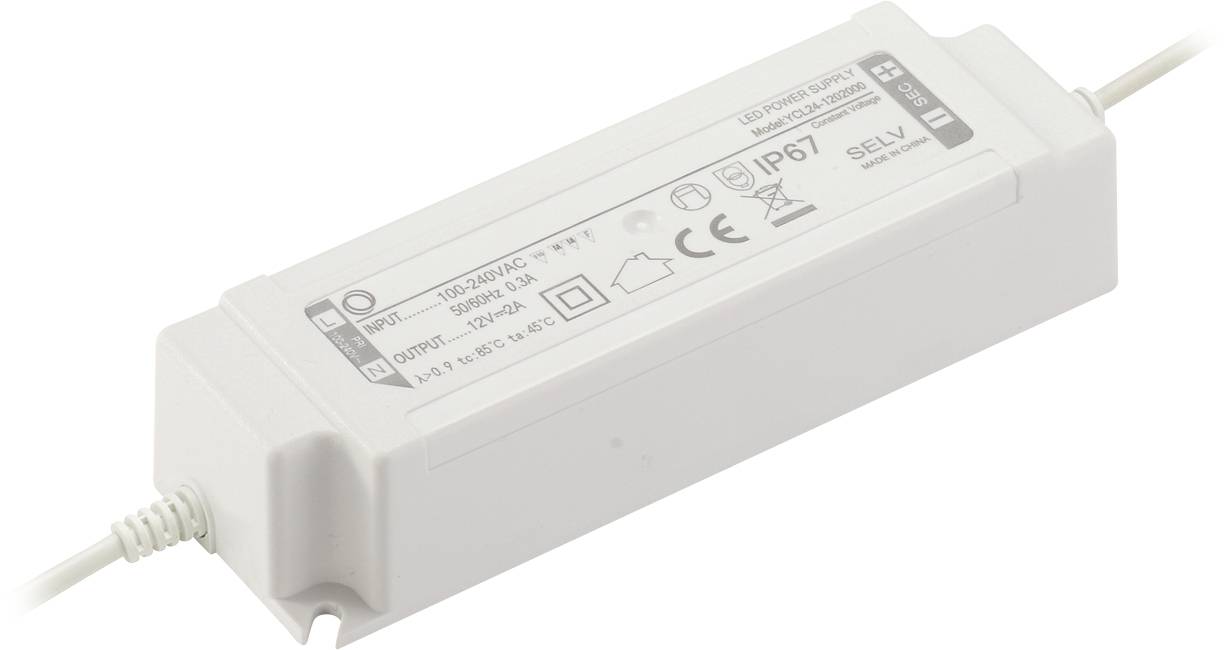

YingJiao YCL24-1202000 LED driver 24 W 2 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Fire.47802063 YSL24-24W LED-SNT IP67 plastic
- 12 V
- 2 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 118 mm x 35 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP67
- Connection
Braid
- Max. power
24 W
- No. of outputs
1 x
- Output current (min.)
2 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
24 W (max)
- Width
35 mm
- Length
118 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
86 %
Documents & Downloads
Datasheet
Datasheet 3435654 YingJiao YCL24-1202000 LED driver 24 W 2 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435654 YingJiao YCL24-1202000 LED driver 24 W 2 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
