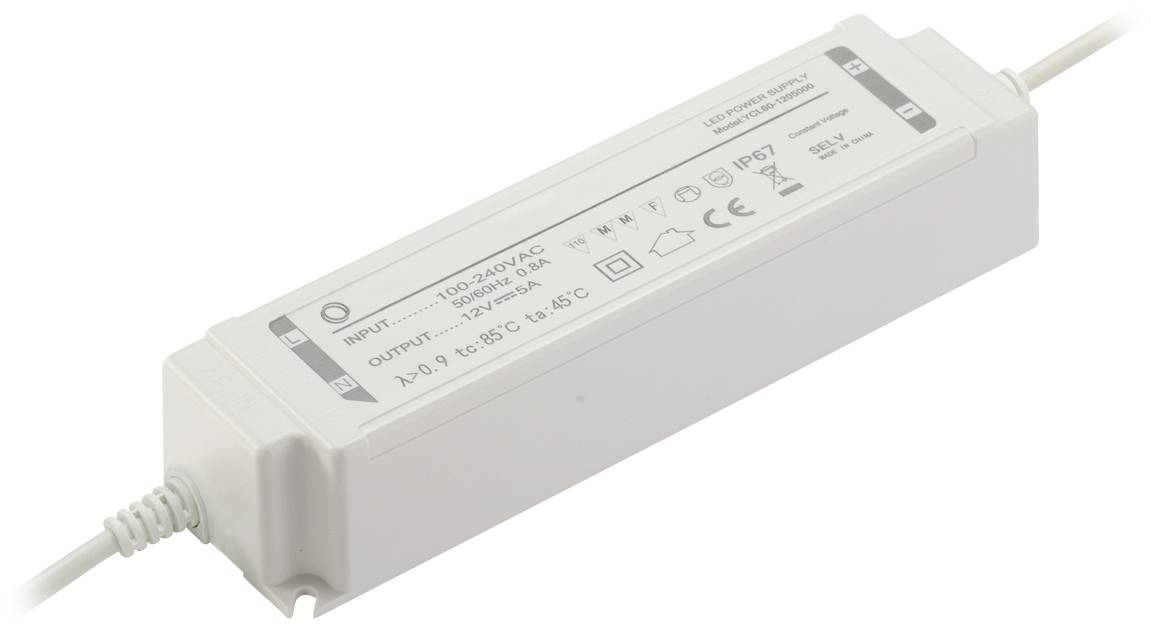

YingJiao YCL60-2402500 LED driver 60 W 2.5 A 24 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Fire.47802063 YCL60-60W LED-SNT IP67 plastic
- 24 V
- 2.5 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 163 mm x 43 mm
- Output voltage (max.)
24 V
- Operating voltage
230 V
- Protection class
IP67
- Connection
Braid
- Max. power
60 W
- No. of outputs
1 x
- Output current (min.)
2.5 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
60 W (max)
- Width
43 mm
- Length
163 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
88 %
Documents & Downloads
Datasheet
Datasheet 3435659 YingJiao YCL60-2402500 LED driver 60 W 2.5 A 24 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435659 YingJiao YCL60-2402500 LED driver 60 W 2.5 A 24 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
