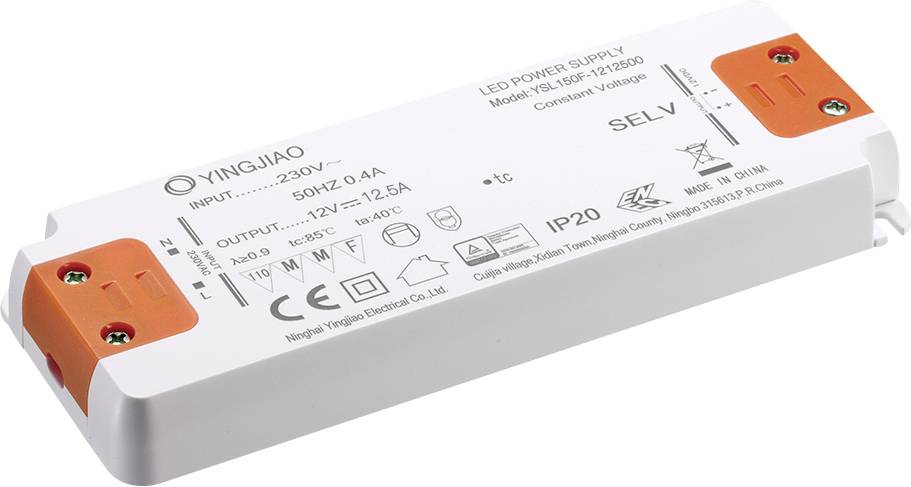

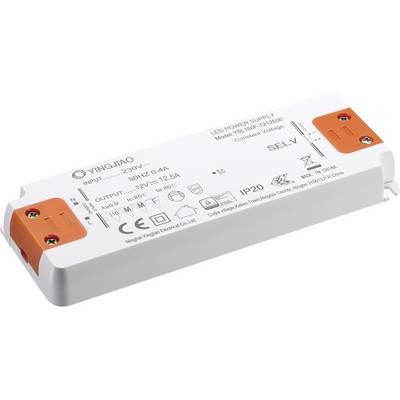

YingJiao YSL150F-12011000 LED driver 132 W 11 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Fire.47802063 YSL150F-150W LED-SNT IP20 Plast
- 12 V
- 11 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 179 mm x 58 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
132 W
- No. of outputs
1 x
- Output current (min.)
11 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
132 W (max)
- Width
58 mm
- Length
179 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
90 %
Documents & Downloads
Datasheet
Datasheet 3435666 YingJiao YSL150F-12011000 LED driver 132 W 11 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435666 YingJiao YSL150F-12011000 LED driver 132 W 11 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
