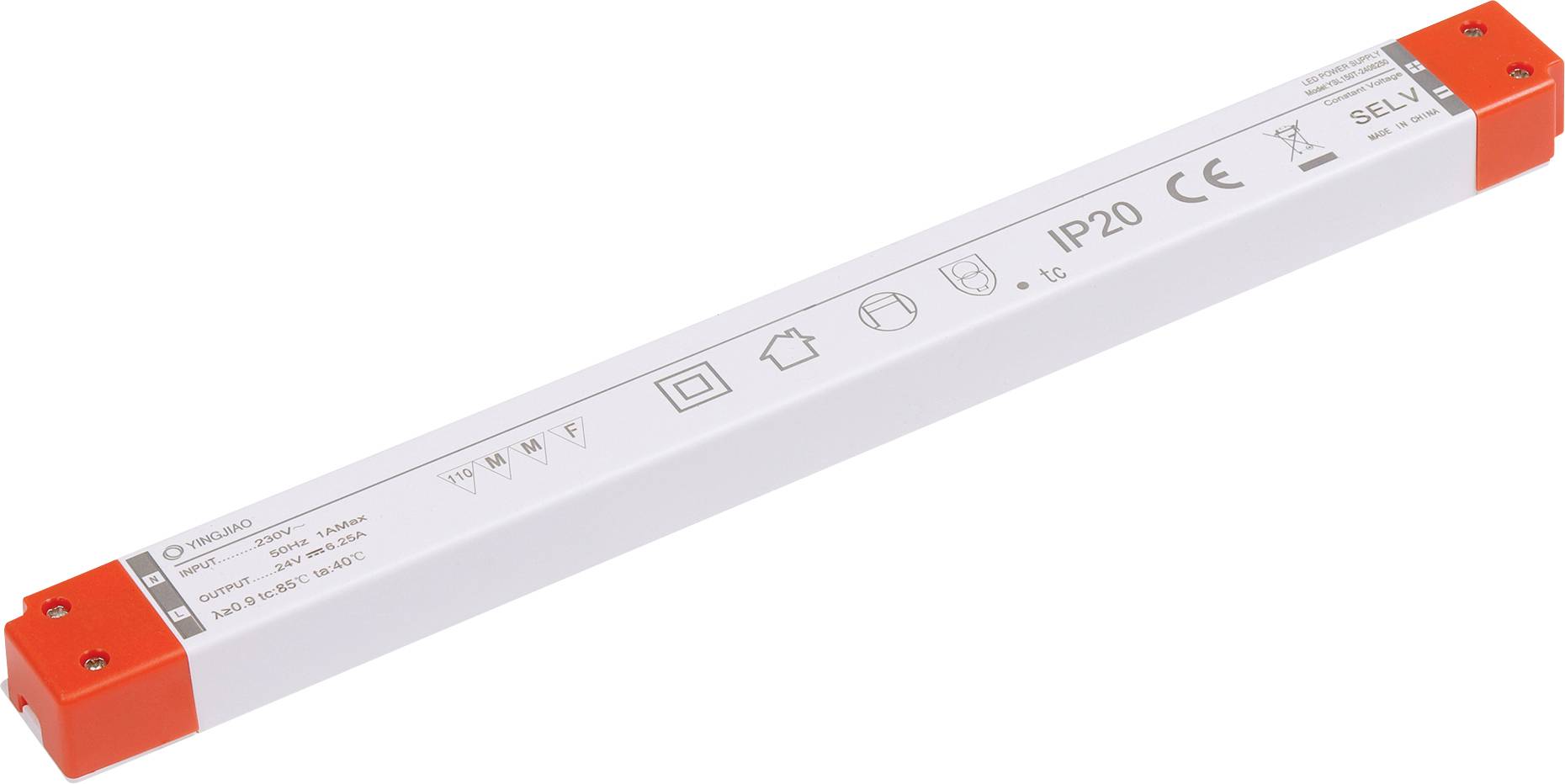

YingJiao YSL150T-12012500 LED driver 150 W 12.5 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brand.47802063 YSL150T-150W LED-SNT IP20 Plast
- 12 V
- 12.5 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 360 mm x 32 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
150 W
- No. of outputs
1 x
- Output current (min.)
12.5 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
150 W (max)
- Width
32 mm
- Length
360 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
92 %
Documents & Downloads
Datasheet
Datasheet 3435668 YingJiao YSL150T-12012500 LED driver 150 W 12.5 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435668 YingJiao YSL150T-12012500 LED driver 150 W 12.5 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
