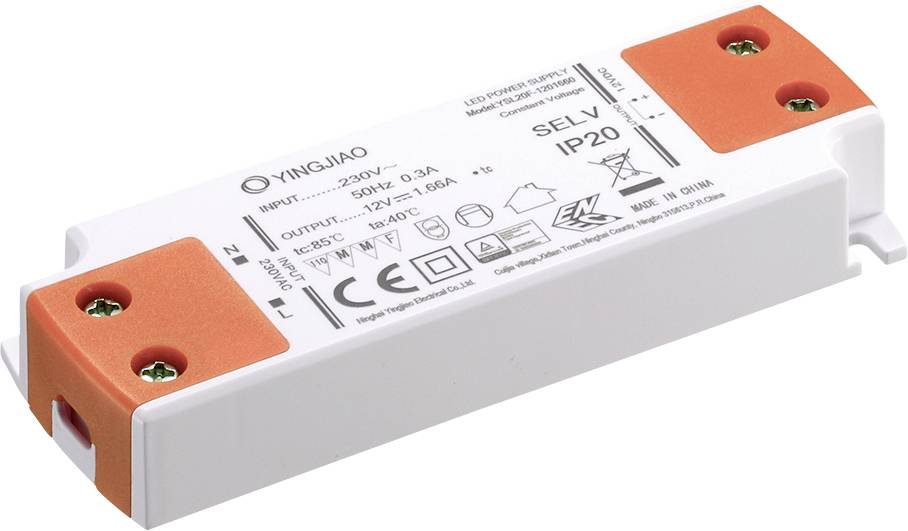

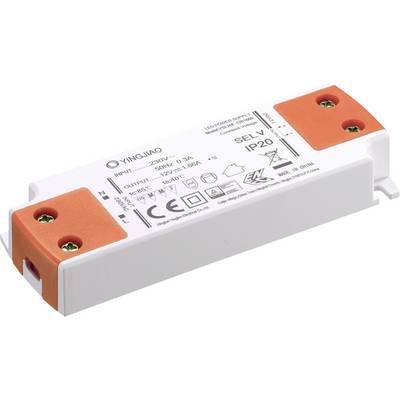

YingJiao YSL20F-1201670 LED driver 20 W 1.67 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Fire.47802063 YSL20F-20W LED-SNT IP20 plastic
- 12 V
- 1.67 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 103 mm x 35.5 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
20 W
- No. of outputs
1 x
- Output current (min.)
1.67 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
20 W (max)
- Width
35.5 mm
- Length
103 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
88 %
Documents & Downloads
Datasheet
Datasheet 3435675 YingJiao YSL20F-1201670 LED driver 20 W 1.67 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435675 YingJiao YSL20F-1201670 LED driver 20 W 1.67 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
