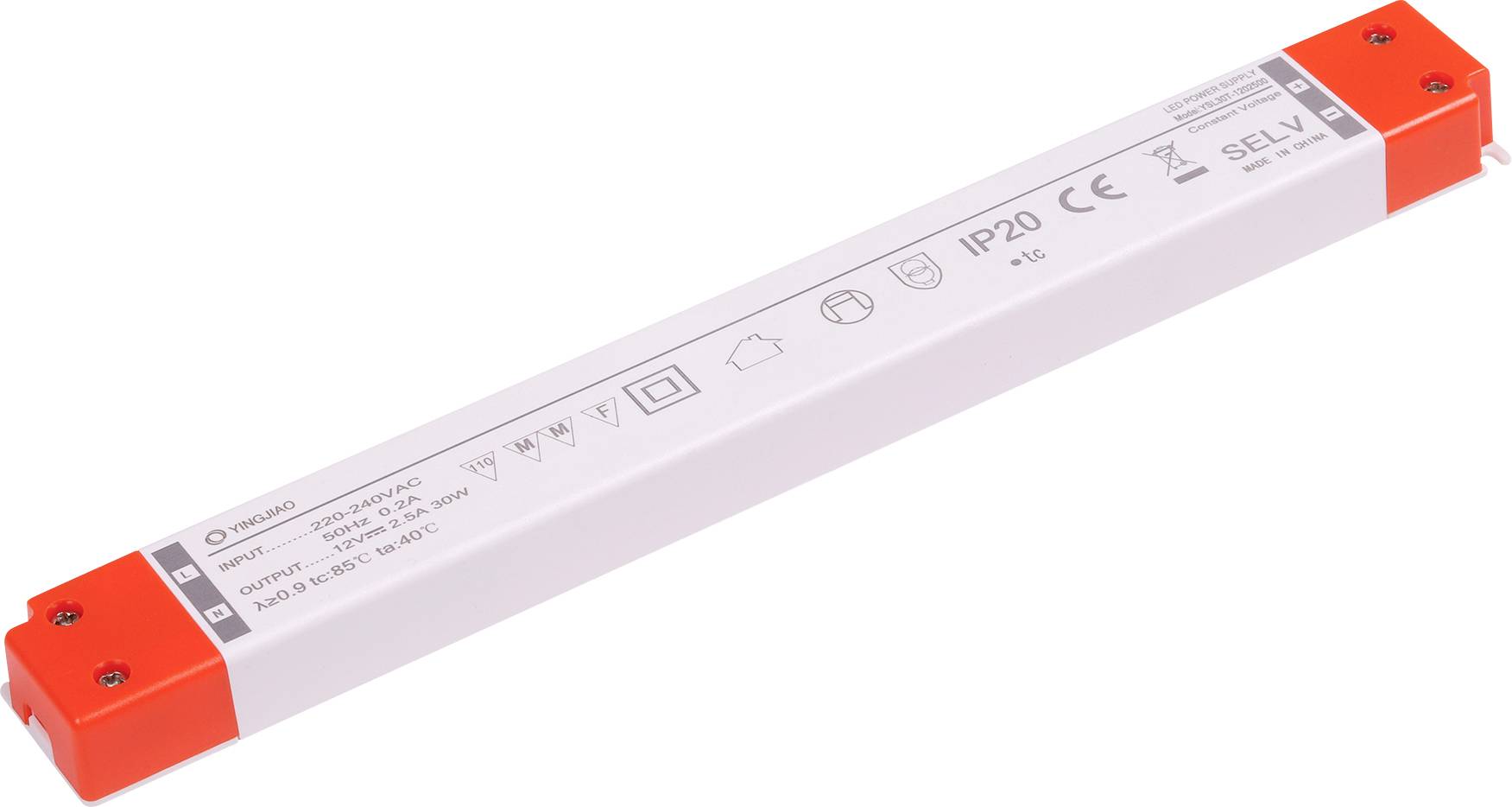

YingJiao YSL30T-1202500 LED driver 30 W 2.5 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
YSL30T-1202500
- 12 V
- 2.5 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 251 mm x 30 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
30 W
- No. of outputs
1 x
- Output current (min.)
2.5 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
30 W (max)
- Width
30 mm
- Length
251 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
86 %
Documents & Downloads
Datasheet
Datasheet 3435680 YingJiao YSL30T-1202500 LED driver 30 W 2.5 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435680 YingJiao YSL30T-1202500 LED driver 30 W 2.5 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
