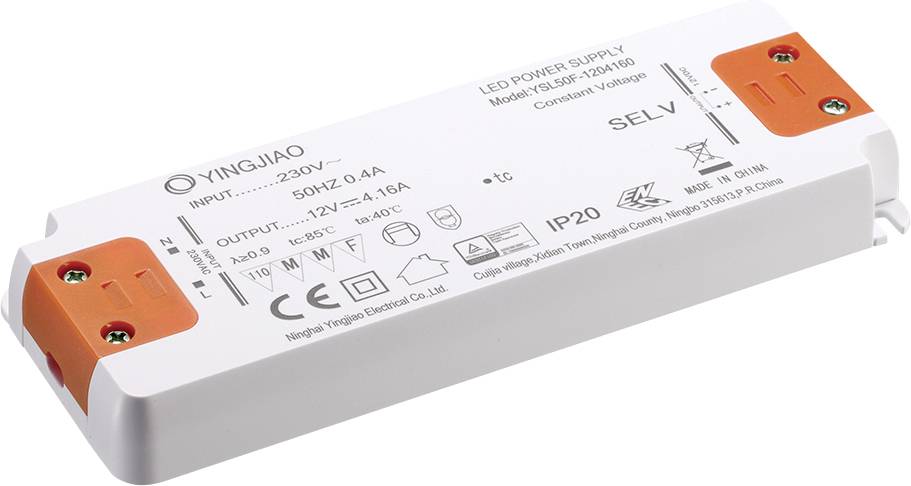

YingJiao YSL50F-1204160 LED driver 50 W 4.16 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
YSL50F-1204160
- 12 V
- 4.16 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 160 mm x 58 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
50 W
- No. of outputs
1 x
- Output current (min.)
4.16 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
50 W (max)
- Width
58 mm
- Length
160 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
88 %
Documents & Downloads
Datasheet
Datasheet 3435684 YingJiao YSL50F-1204160 LED driver 50 W 4.16 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435684 YingJiao YSL50F-1204160 LED driver 50 W 4.16 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
