Technical specifications
- Product type
Sheathed cable
- No. of leads
12 x
- Content
100 m
- Cross section (each core)
0.8 mm²
- Insulation material
PVC
- Cable features
single core
- Cable type
YR
- Packaged
Yes
- Manufacturer part #
YR 12x0,8
- Max. length sold by the metre
100 m
- Sold per metre
No
- Cross section
12 x 0.8 mm²
- Max. temperature range (fixed installation)
70 °C
- Min. temperature range (fixed installation)
-5 °C
- Type
YR 12x0,8
0.8 mm²
Polyvinyl chloride (PVC)
Colour
106 kg/km
No
None
100 V
White
Round
0.8 mm
Copper
Polyvinyl chloride (PVC)
Class 1 = solid
None
-5-70 °C
Several
FALSE
12
None
70 °C
None
7.7 mm
FALSE
FALSE
FALSE
FALSE
FALSE
Bare
None
None
None
None
58 mm
FALSE
Round
FALSE
FALSE
FALSE
FALSE
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2984903 YR 12x0,8 Sheathed cable YR 12 x 0.8 mm² 100 m
Description

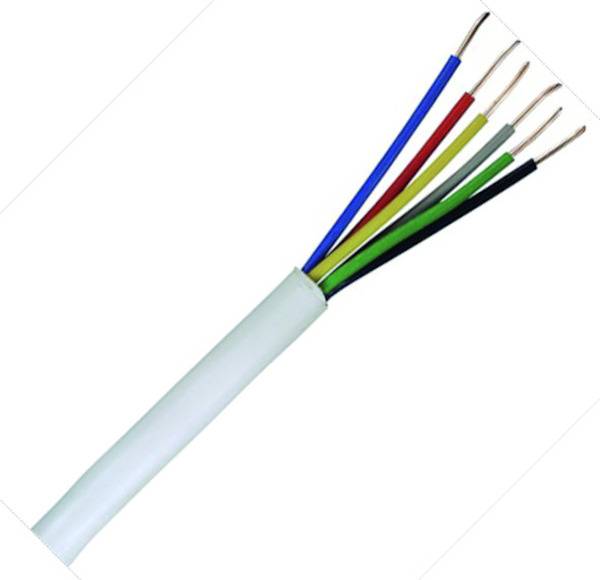

YR PVC bell cable, PVC insulated switch wires, single-wire, rated voltage 100V, temperature range -5°C to +70°C, for fixed installation as an insulation cable on and under plaster, not for heavy current installation purposes, for signal transmission in telecommunications and door systems, etc.
