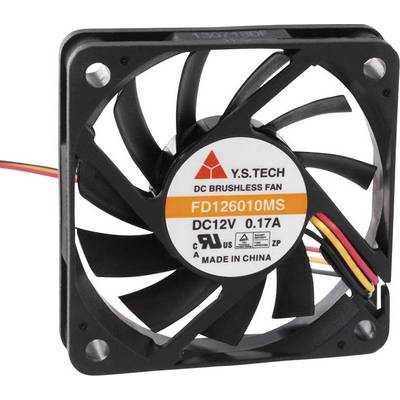

YS TECH FD126010MS(1F5) Axial fan 12 V DC 35.7 m³/h (L x W x H) 60 x 60 x 10 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
2.04 W
Type of bearing
Plain bearing
Air flow rate
35.7 m³/h
Datasheet (PDF)
Technical specifications
- Product type
Axial fan
- Type
FD126010MS(1F5)
- Nominal voltage
12 V DC
- Max. current consumption
170 mA
2.04 W
- Type of bearing
Plain bearing
- Rotational speed
4500 U/min
- Noise emission (max.)
38 dB
- Air flow rate
35.7 m³/h
- Cable length
29.00 cm
- Factory colour
Black
- Material
Plastic
30000 h
- Min. temperature
-10 °C
- Max. temperature
+70 °C
- Length
60 mm
- Width
60 mm
- Height
10 mm
- Dim
(L x W x H) 60 x 60 x 10 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1208386 YS TECH FD126010MS(1F5) Axial fan 12 V DC 35.7 m³/h (L x W x H) 60 x 60 x 10 mm
User & Safety Instructions
User & Safety Instructions 1208386 YS TECH FD126010MS(1F5) Axial fan 12 V DC 35.7 m³/h (L x W x H) 60 x 60 x 10 mm
