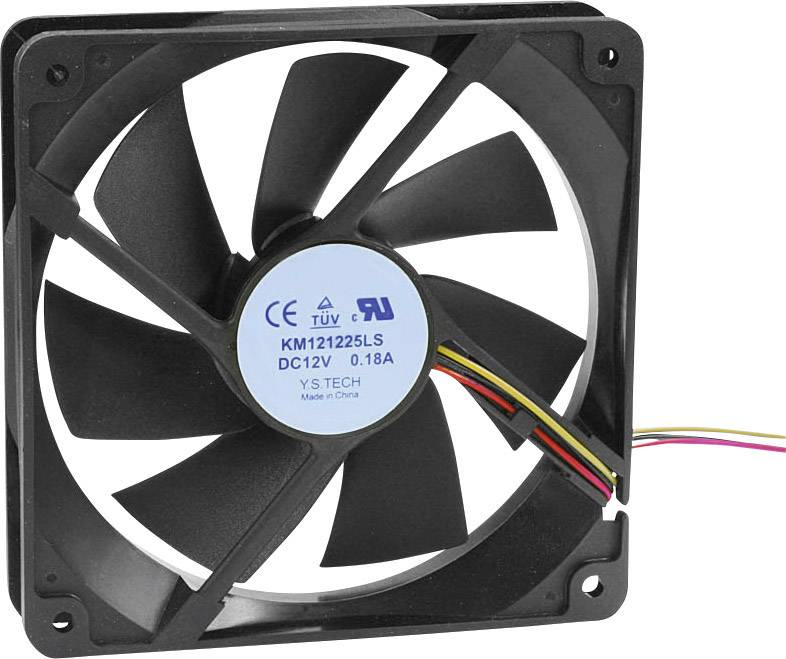

YS TECH KM121225LS(1A1) Axial fan 12 V DC 65.22 m³/h (L x W x H) 120 x 120 x 25 mm
EAN:
Part number:
Item no:
Product type
Axial fan
Nominal voltage
12 V DC
Power
0.84 W
Type of bearing
Plain bearing
Air flow rate
65.22 m³/h
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
Axial Fan 12 V
Technical specifications
- Product type
Axial fan
- Type
KM121225LS(1A1)
- Nominal voltage
12 V DC
- Max. current consumption
70 mA
0.84 W
- Type of bearing
Plain bearing
- Rotational speed
1200 U/min
- Noise emission (max.)
18 dB
- Air flow rate
65.22 m³/h
- Cable length
29.00 cm
- Factory colour
Black
- Material
Plastic
30000 h
- Min. temperature
-10 °C
- Max. temperature
+60 °C
- Length
120 mm
- Width
120 mm
- Height
25 mm
- Dim

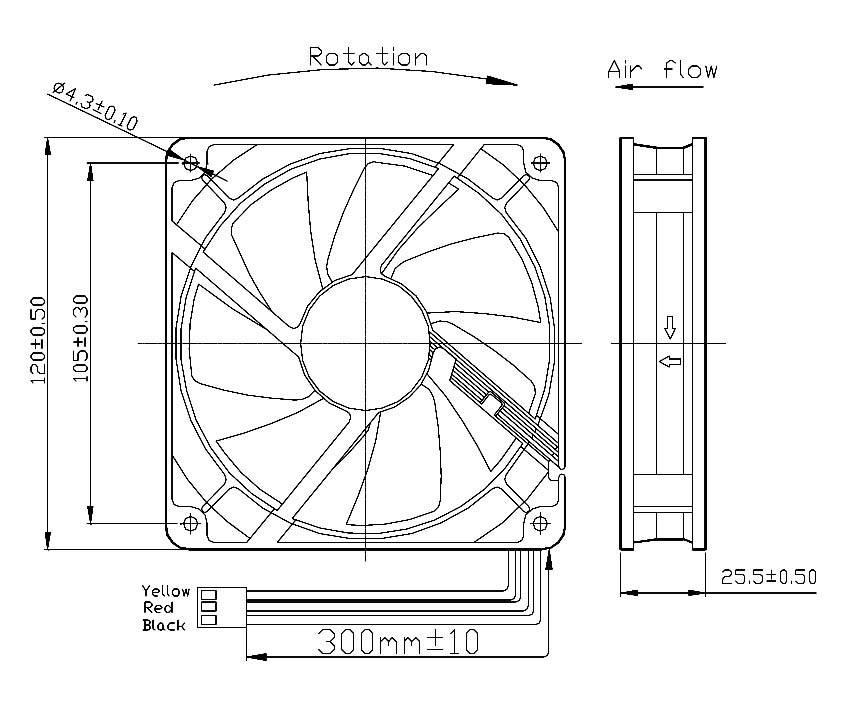

(L x W x H) 120 x 120 x 25 mm
Documents & Downloads
Datasheet
Datasheet 1208388 YS TECH KM121225LS(1A1) Axial fan 12 V DC 65.22 m³/h (L x W x H) 120 x 120 x 25 mm
